HDA 5500 for HLB 1000 and CS 1000
- 16 -

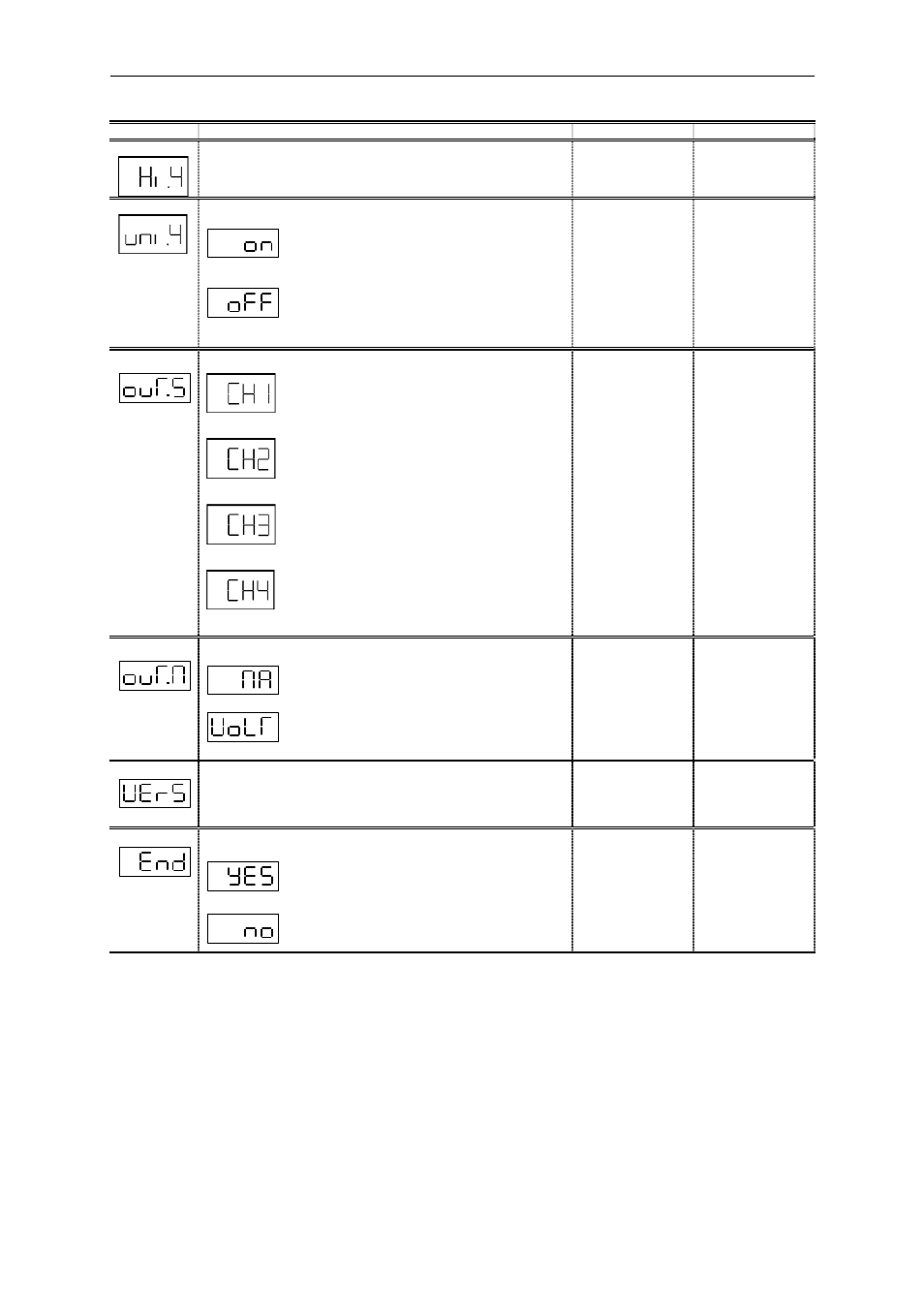

Menu point Setting Setting range Default setting
Upper display range of temperature (Hi.4.)
Upper limit of the display range of channel 4
-899..9999
100.0
Background lighting for the unit label for Channel 4(uni.4.)
lighting behind unit label is switched on when
channel 4 value is displayed
lighting behind unit label is switched off when
channel 4 is displayed
on
oFF
oFF
Allocation of analogue output to Signal (ouT.S)
analogue output allocation to signal of
channel 1
analogue output allocation to signal of
channel 2
analogue output allocation to signal of
channel 3
analogue output allocation to signal of
channel 4
Channel 1
Channel 2
Channel 3
Channel 4
Channel 1
Output signal (ouT.M)
4..20 mA Output signal
0..10 V Output signal
MA
VoLT
VoLT
Software version (VErS)
Display of the software version (for reference only)
To close basic settings (End)
This closes the basis settings menu.
Basic settings can still be altered
YES
no
no
