55
WLAN ADSL2+ Router

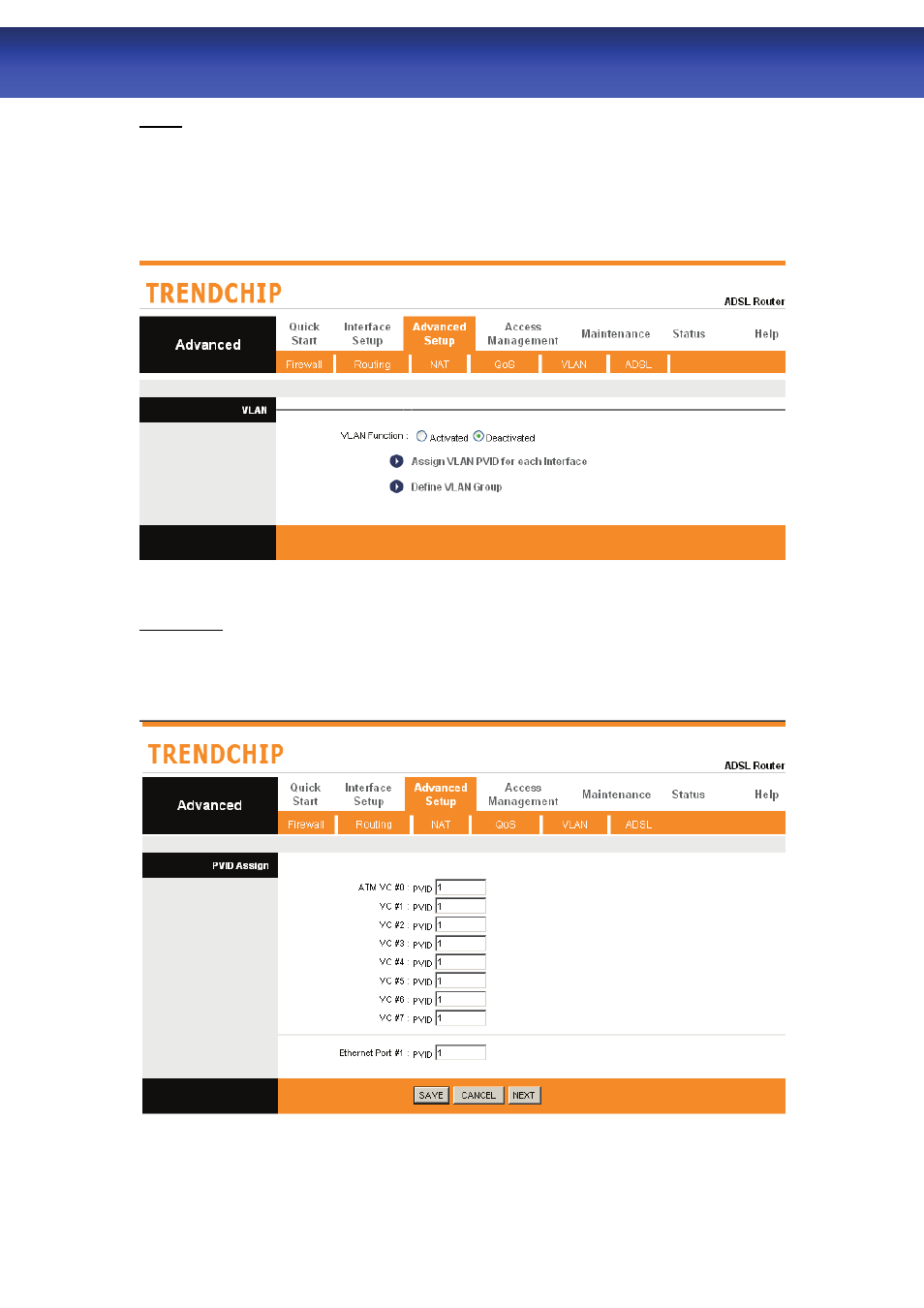

VLAN
Go to Advanced Setup -> VLAN to enable VLAN features. Virtual LAN (VLAN) is a group of
devices on one or more LANs that are configured so that they can communicate as if they
were attached to the same wire, when in fact they are located on a number of different LAN
segments. Because VLANs are based on logical instead of physical connections, it is very
flexible for user/host management, bandwidth allocation and resource optimization.
VLAN PVID
Go to Advanced Setup -> VLAN-> Assign VLAN PVID for each interface to setup VLAN
PVID features. Each physical port has a default VID called PVID (Port VID). PVID is assigned
to untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
