WLAN ADSL2+ Router

8.0 Introduction of the Web Configuration
8.1 Web Configuration Overview

The embedded web configuration allows you to manage WLAN ADSL2+ Router from
anywhere through a browser such as Microsoft Internet Explorer or Netscape Navigator. Use
Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript
enabled. It is recommended that you set your screen resolution to 1024 by 768 pixels

8.2 Accessing WLAN ADSL2+ Router Web Configuration

Step 1. Make sure your WLAN ADSL2+ Router is properly connected

Step 2. Prepare your computer/computer network to connect to the Router

Step 3. Launch your web browser.

Step 4. Type “192.168.1.1”.

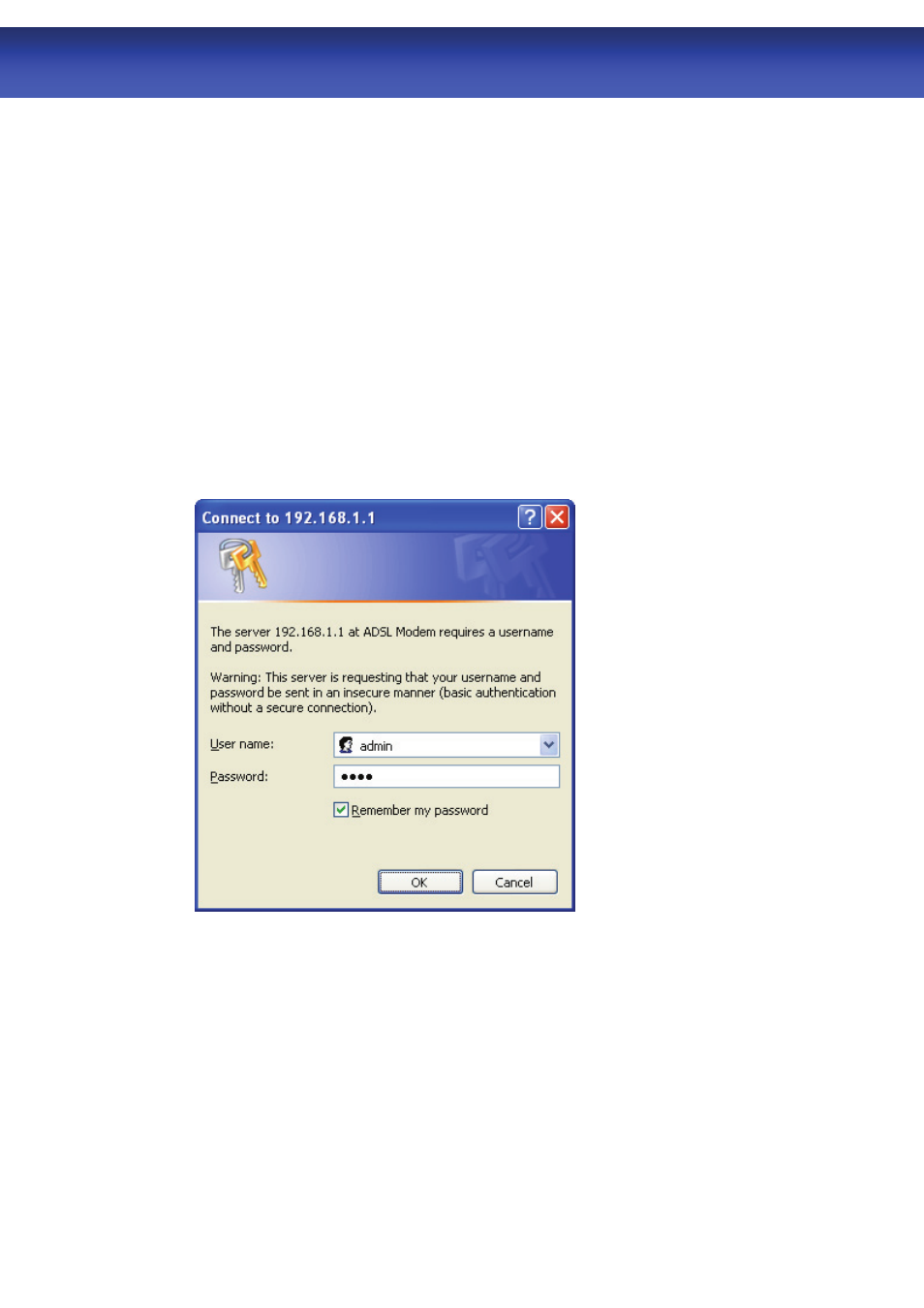

Step 5. An Enter Network Password window displays. Enter the user name (“admin” is the

default), password (“1234” is the default) and click OK.
