WLAN ADSL2+ Router
2.1 LED Meaning

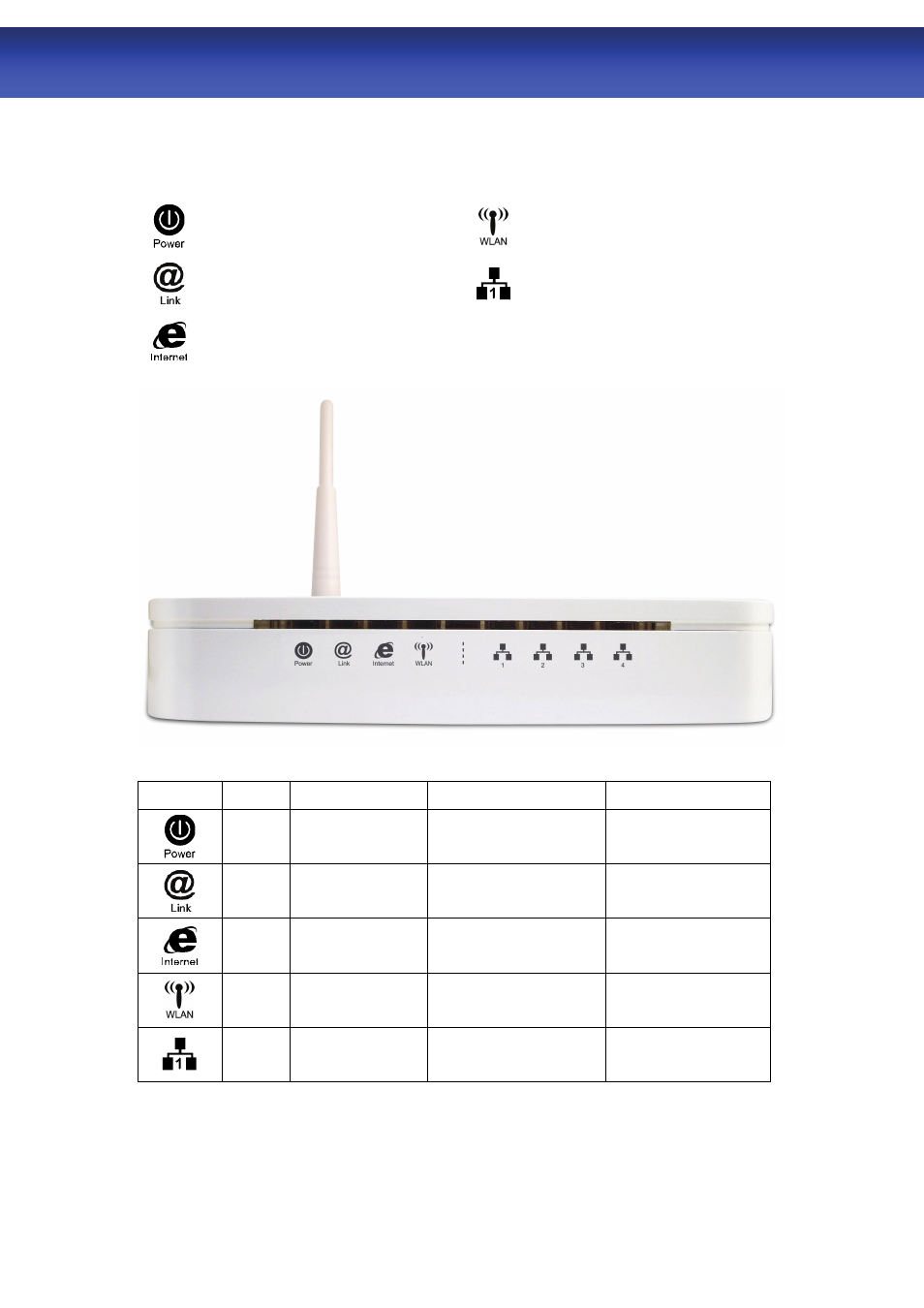

Your WLAN ADSL2+ Router has indicator lights on the front side. Please see below for an
explanation of the function of each indicator light.
Power indicator
Wireless Active indicator
ADSL Link indicator
Ethernet Active indicator
Internet Active indicator
Table 1. LED function
Label Color
On
Flash
Off
Green
Ready
Waiting for device ready
Power Off
Green Connect to DSLAM Disconnect to DSLAM
N/A
Green
The device has a
WAN IP address
from ISP
Transmit / Receive Data
N/A
Green
WLAN Ready
Transmit / Receive Data
WLAN Off
Green
Ethernet
Connected
Transmit / Receive Data
Ethernet
Disconnected
The icons appear on the products are for application indication only.
The trademark or intellectual property is belonging to their respective owners.
