Heidolph LABOROTA 4000 eco User Manual
Page 43
43
E
3

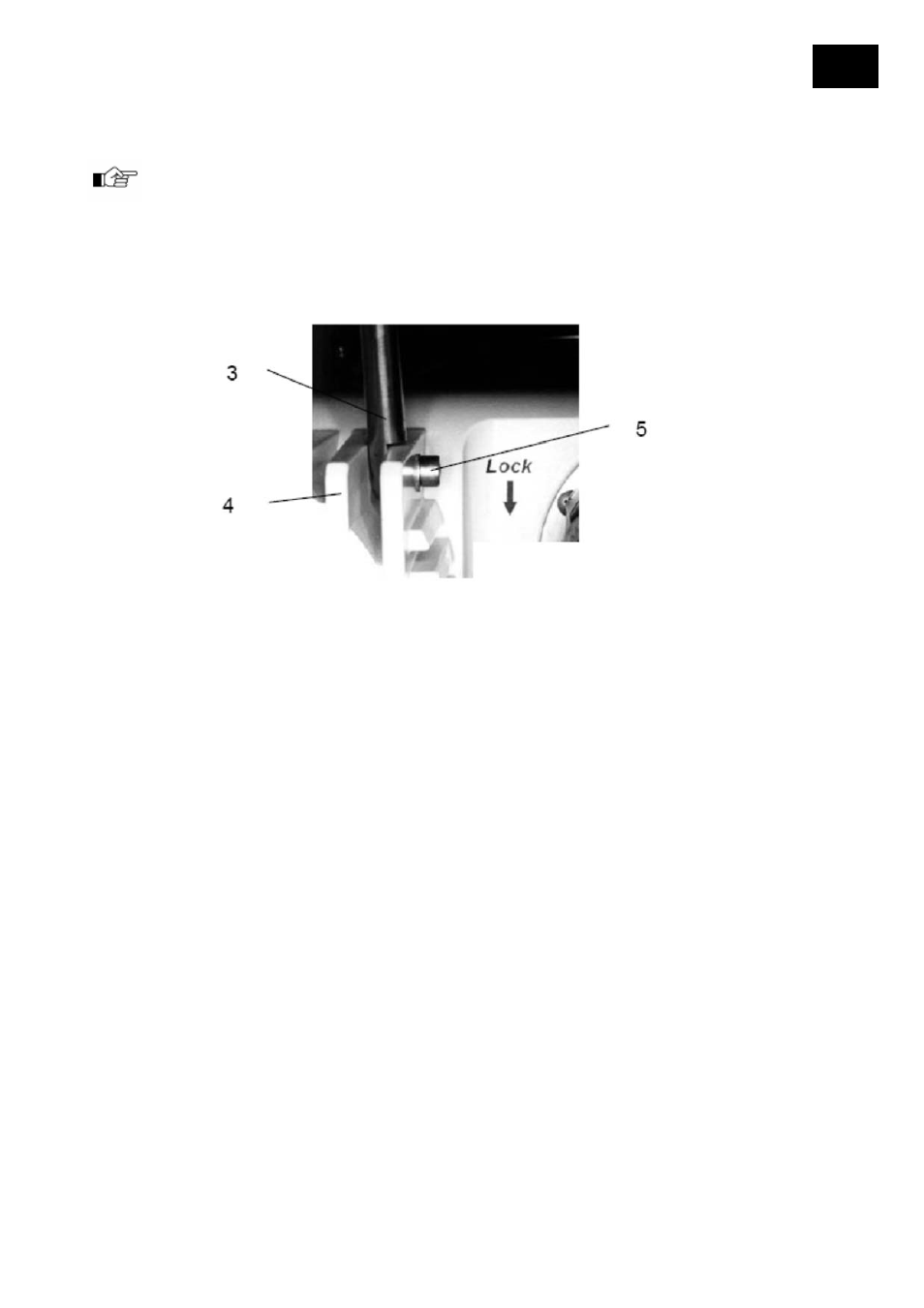

Install condenser support bar, when using G3 and G5eco glassware kits
view fig. 1,3
G3 and G5eco glassware kits are protected against tipping with condenser support bar.
First secure bar (3) in threaded hole (4) with hex-key screw (5). Tilt bar (3) to fit the
condenser (K) to be held.
fig. 3
Fit cross sleeve (6) on bar (3) and secure with clamp screw.
Plug condenser clamp (7) in cross hole of cross sleeve (6) and secure with clamp screw.
