Heidolph LABOROTA 4000 eco User Manual
Page 42
42
E
power switches (1b & 2a) for item and hot bath are OFF;
rotary controls (1c & 2b) for rotation and hot bath temperature are set to ZERO
(LH stop).
Connect power cord with outlet. Use connectors installed in the rear panel.
Use junction cable to connect hot bath (2) with the item.

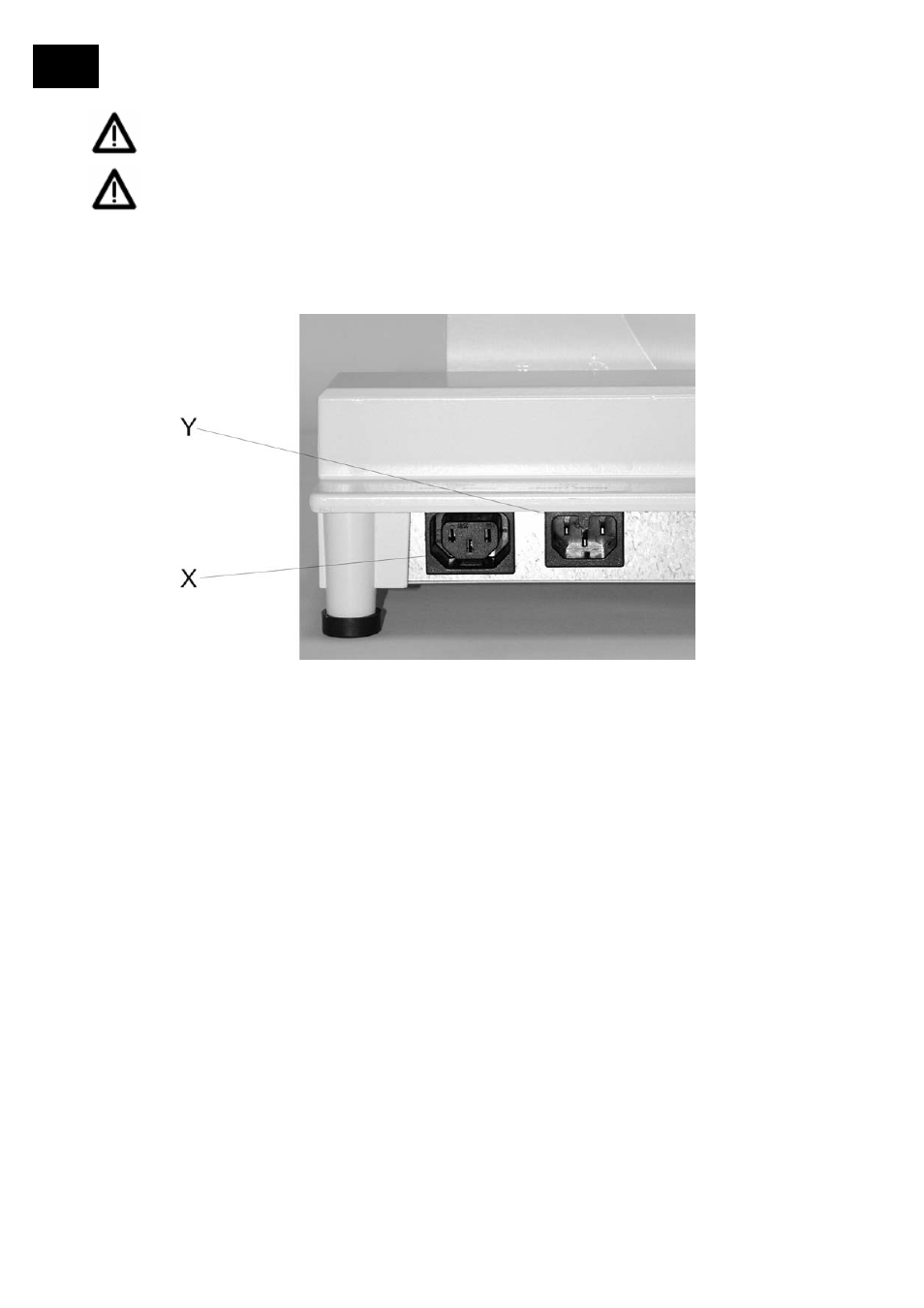

fig. 2
X power
cord
Y
junction cable, hot bath
