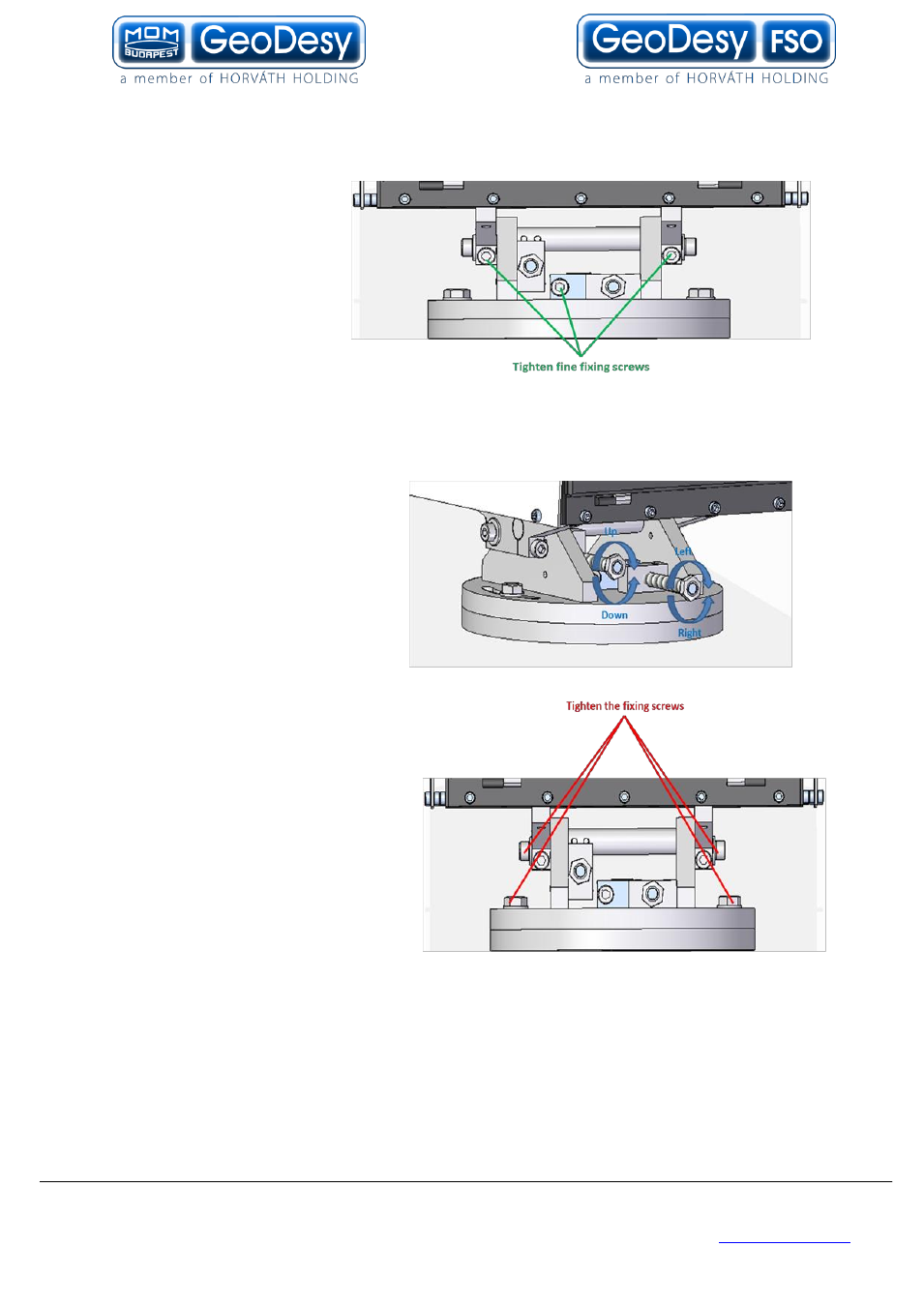

5 step
Tighten the screwsseen a
picture No5.
6 step
Align the laser head to best
position using the fine alignment
screws. Please see Picture No6
how to direct these screws.
7 step
Tighten the fixing screws as an picture No7.
