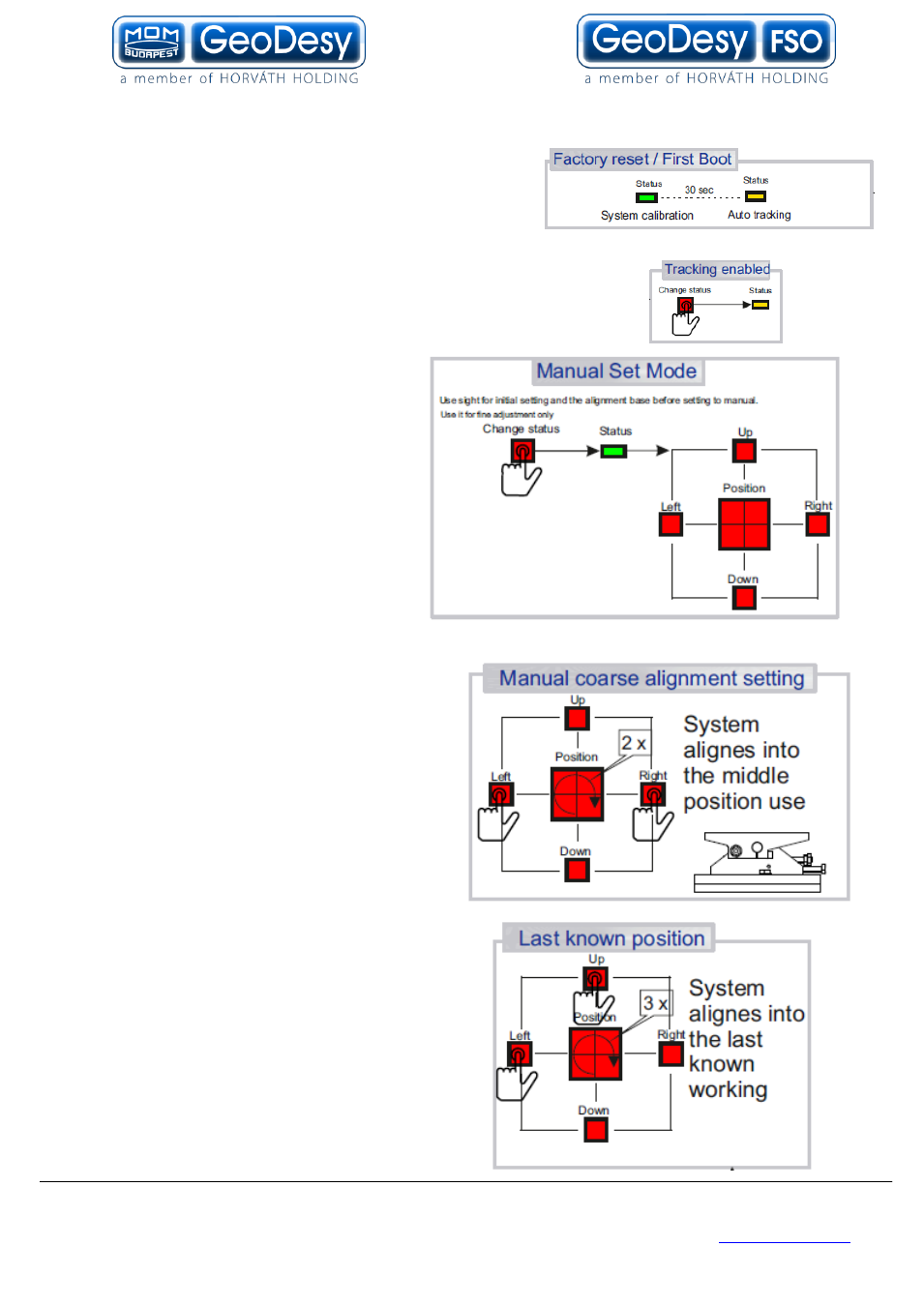

Factory reset/First boot: After turning ON the
status LED on the laser head will flash for about
30 seconds then the laser head will change to
Auto Tracking (AT) status, after that the LED will
be continuously yellow.

Tracking enabled (status LED: yellow): If the status LED is
yellow then the AT system is enabled.

Manual set Mode (status LED:
green): After booting the equipment
will automatically turn to AT mode.
You can change to manual mode by
pressing the Change Status button
and in this case the LED will be
green. Here you can direct the AT
system by pressing the up-down
and left-right buttons.

Manual coarse alignment setting(status
LED: green): By pressing the right-left
buttons both at the same time then the
AT system stops in the middle position,
the Position LEDs will turn twice
confirming that. After that you can start
the alignment using the alignment unit.

Last know position (status LED: green):
Pressing the upper and left buttons both at
the same time moves the laser head to the
last known working position. The Position
LEDs will turn 3 times confirming that.
