4.5.5 Installation Steps
IMPORTANT
 COUNTERTOP CUT-OUT DIMENSIONS, see section 4.5.4 Mounting Frames.
 When installing two coil carrier sheets on the same frame, you must install a non-magnetic steel
partition plate in between them. This will isolate the magnetic fields and prevent the fields from
interfering each other.
IMPORTANT
To protect the induction unit from water penetration, you must apply and bond the silicone adhesive
properly to create a water-tight seal. Before you begin the installation, it is very important to use isopropyl
alcohol (minimum 70%) or equivalent to clean the flanges/edges and the counter surfaces where the
silicone adhesive will be applied.
To install the mounting frame and Ceran glass:

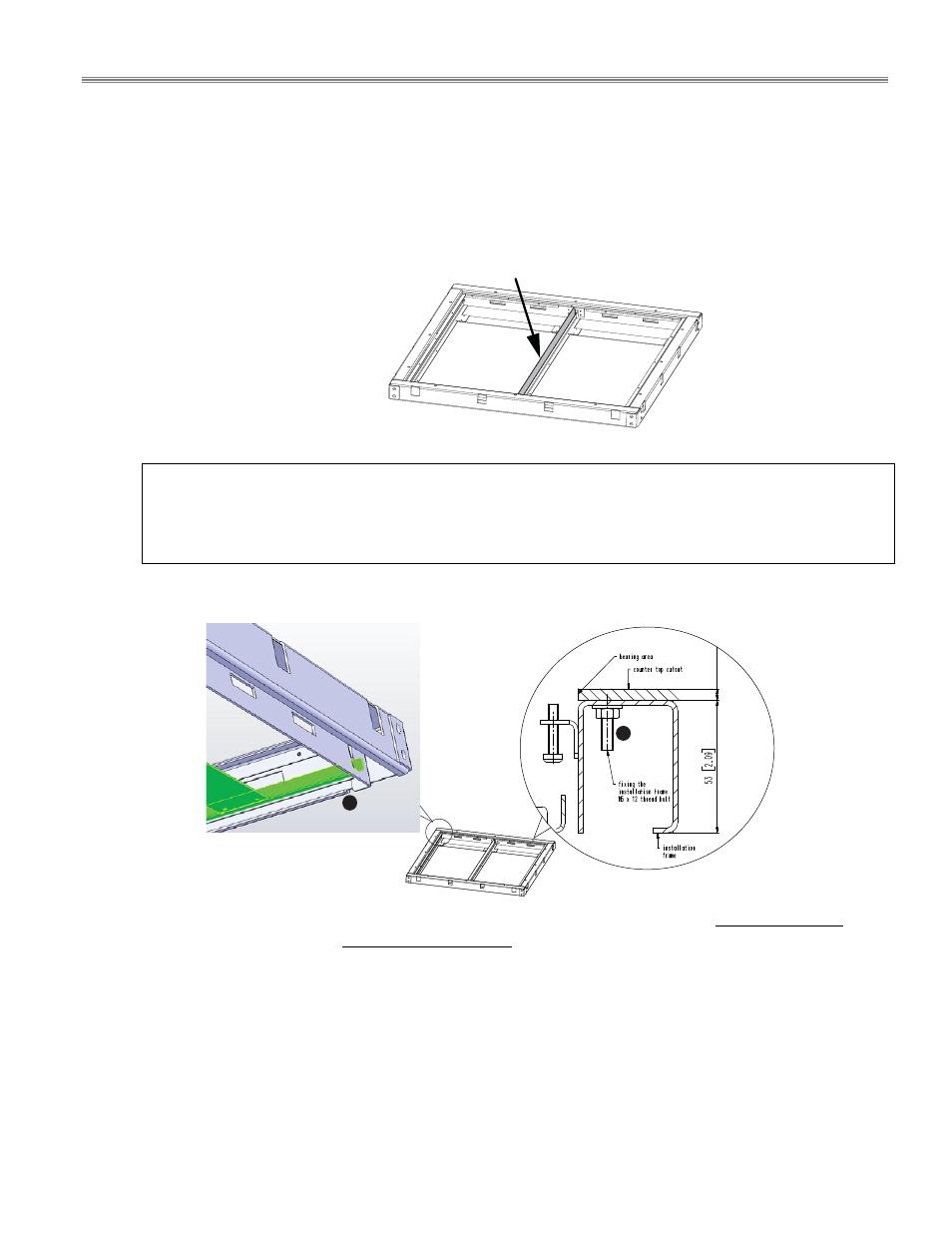

A. Orientation: The mounting frame assembly has a set of retaining rails that are hinged at the BACK of the
frame. The rails can drop down at the FRONT for installing the coil carrier sheet. Ensure to install the
frame in the correct orientation according to the design/layout plan.
B. Secure the mounting frame to the underside of the counter surface. Stud-mounting method is shown in
illustration.
B
min 1.5 [0.06]
A
