Gamber-Johnson 7170-0191 User Manual
Page 2
Apply red
Threadlocker

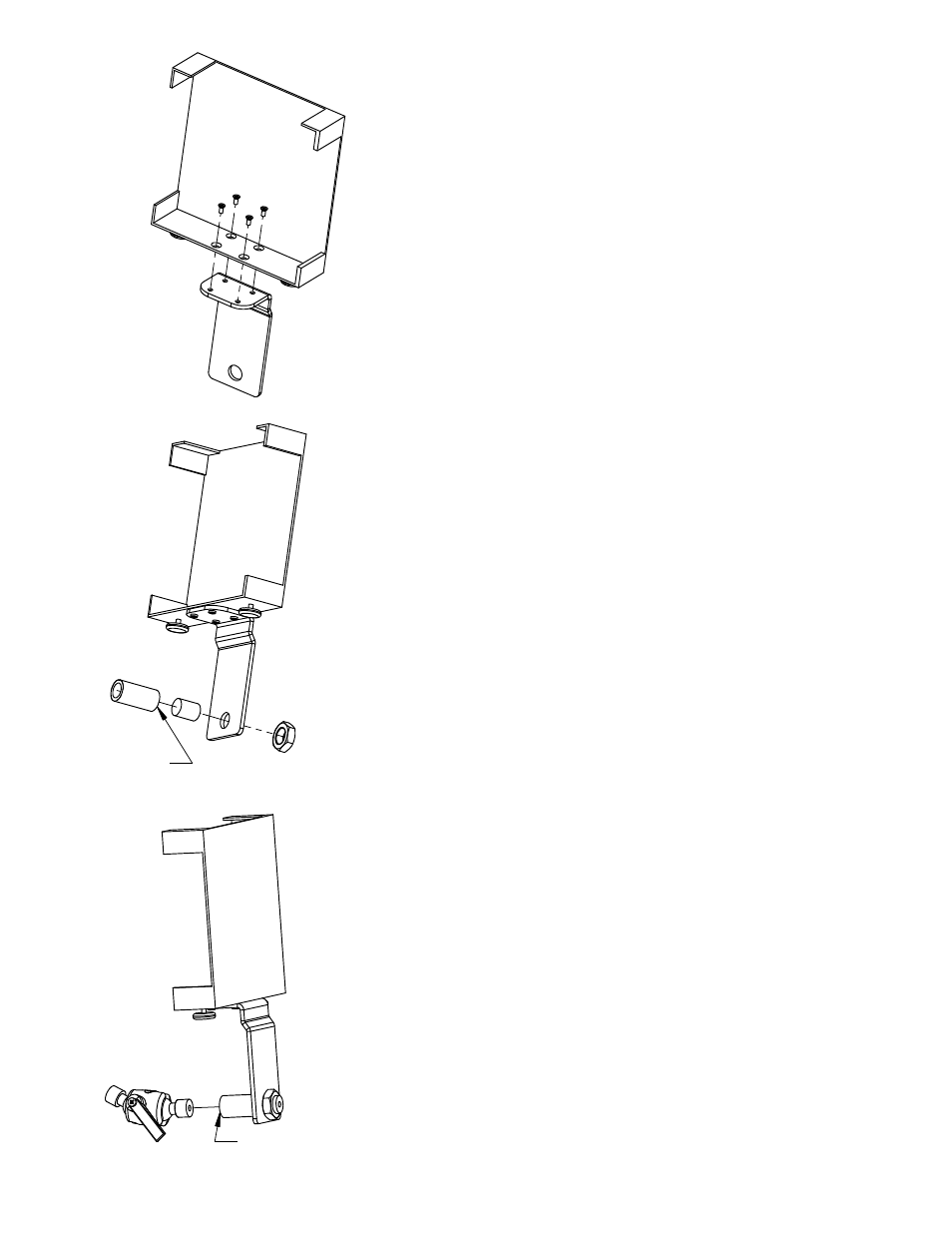

Begin by installing from the top the 4 countersunk
1.
8-32 screws to secure the Max 3 Stud Adapter to
the cradle/docking station.
2. Apply thread locker to the Max3 Extension tube and
connect the Max3 M20 Thread Adapter to the
Max3 50mm Extension. Screw the Max3 Extension
bar into the large threaded hole in the Max3 Stud
Adapter. Thread the 30mm nut and tighten until the
Max 3 extension is secured to the bracket.
3. Apply thread locker to the Max3
50mm tube and insert the Max3
Knuckle to the Max3 Extension as shown.
Apply red
Threadlocker
