Rev.A

INST-640

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

PS-001

Printing Spec:

Product

FORKLIFT - 2" & 3" TUBE CLAMP

INSTALLATION INSTRUCTIONS

Revision

Form

7160-0561

7160-0561 Tube Clamp can be used on 2" or 3" diameter tubes.

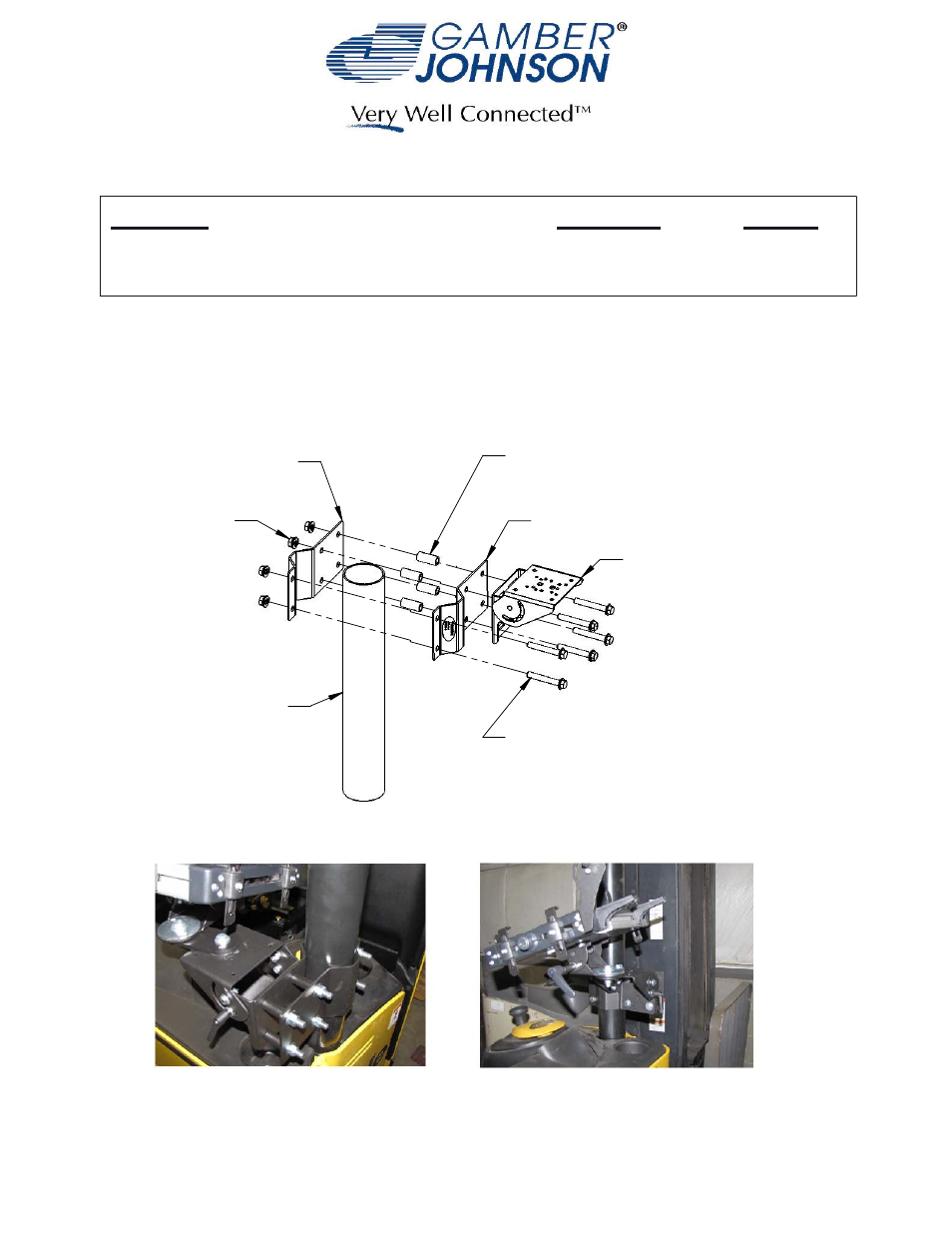

Assemble 7160-0561components as shown below.

Clamshell maybe placed in a horizontal or vertical position per application.

(4) Spacers and 2.75" long bolts are used when mounting on 3" tube.

Spacers are not required and 1.00" long bolts are used when mounting on 2" tube.

(4) Spacers used with 3" Tube,

Clamp Bracket

Flat Washers

Clamp Bracket

Diameter

Tube

2" or 3"

3/8-16 Nuts,

Clamshell

Lock Washers &

Spacers not required with 2" Tube

(6) 3/8-16 x 2.75" Bolts and Washers

used with 3" Tube

(6) 3/8-16 x 1.00" Bolts and Washers

used with 2" Tube

© Copyright 2014 Gamber-Johnson, LLC
