Gamber-Johnson 7160-0418 User Manual

Page 2

background image

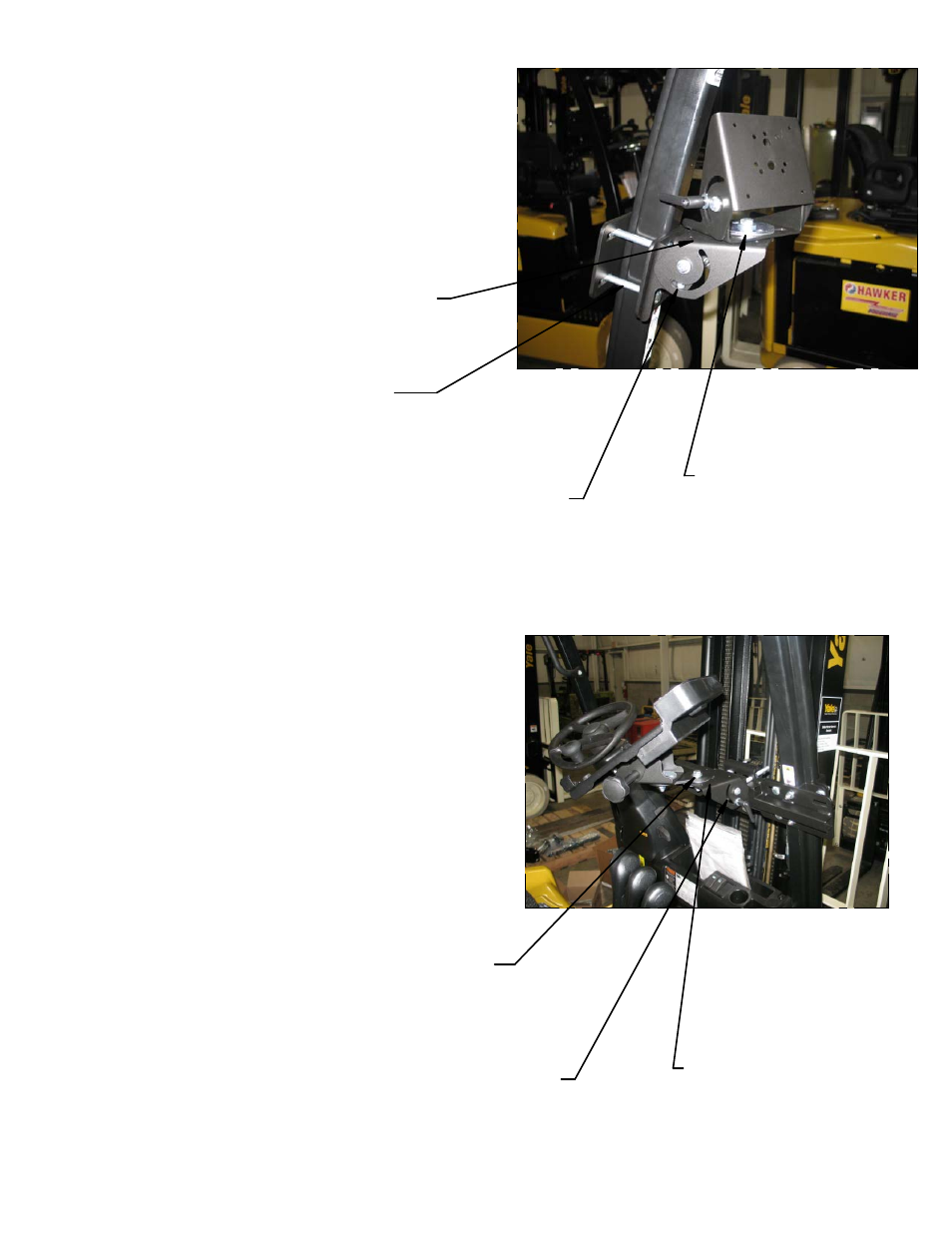

Figure 2. - Example of Extension Tube,

Clam Shell with 0-90 Clevis and 3" Arm

7160-0418 = Yale Roll Formed Pillar Bracket Assy.

7160-0363 = Extension tube

7160-0364 = Fork lift 0-90 Clevis W/Small Plate

CF19 Docking Station

Note: The 3/8" pivot bolt

can be tightened to lock

the mount in place.

Note: 1/4" bolts and flat washers have been provided

in the hardware bag and can be installed in the open

location opposite the lever handles to lock the clam

shells in place.

Position the 3/8 bolts as close to

the pillar as possible to prevent

bowing the components

Figure 1. - Example of Dual Clam Shell Assembly

attached to Yale Roll Formed Pillar Bracket Assembly

7160-0418 = Yale Roll Formed Pillar Bracket Assy.

7160-0366 = Fork Lift Dual Clam Shell W/Small Plate

Position so this surface

is relatively level

Position so this surface

is relatively level

Note: 1/4" bolts and flat washers have been provided

in the hardware bag and can be installed in the open

location opposite the lever handles to lock the clam

shells in place.

Note: The 3/8" pivot bolt

can be tightened to lock

the mount in place.
