Gamber-Johnson 7160-0507 User Manual
Page 2

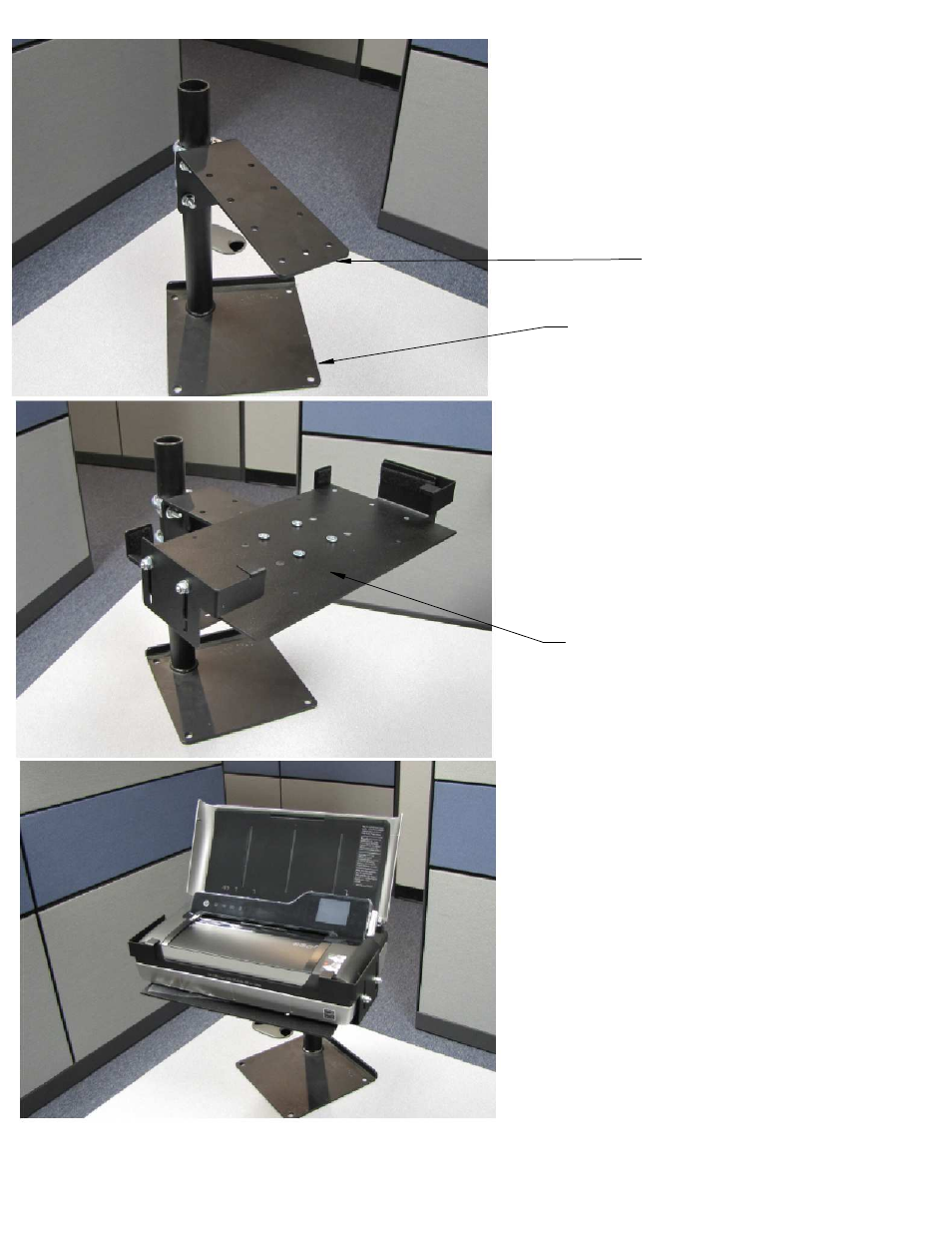

2. Typical install is a DS-74-L mount
attached to vehicle base or pole.
3. Attach printer mount to DS-74-L
with .25-20 screws, washers & nuts
supplied in hardware bag.
4. Insert printer into printer mount.
Center printer so paper feed doors
can be opened.
Moved side and back backets against
printer body and tighten in place.
Attach and secure power and
data transfer cables.
DS-74-L
Vehicle Base/Pole
.25-20 Flat Head Screws,
Washers and Nylok Nuts
