Gamber-Johnson 7160-0392 User Manual
Page 2
2 / 2

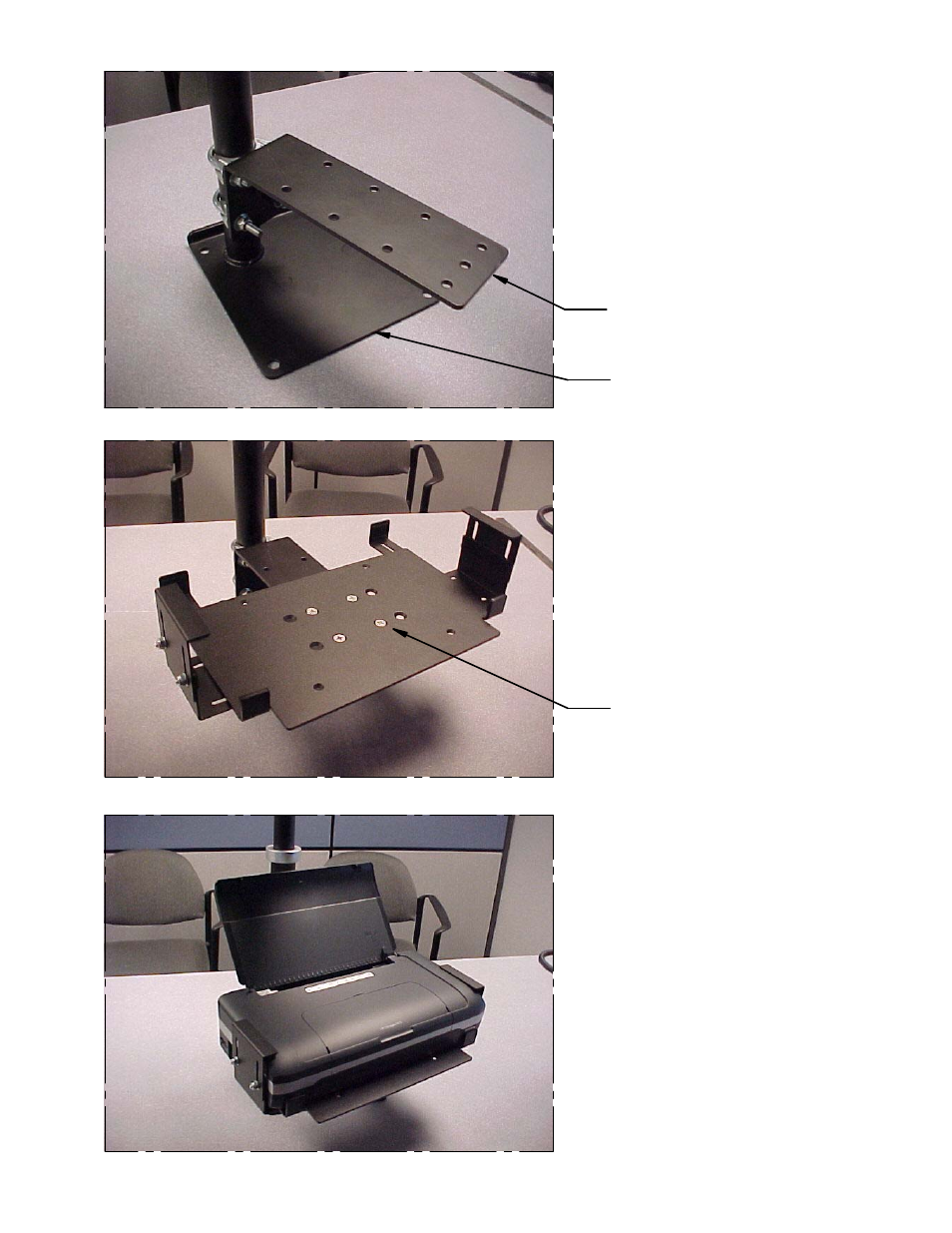

2. Typical install is a DS-74-L mount
attached to vehicle base or pole.
3. Attach printer mount to DS-74-L
with .25-20 screws, washers & nuts
supplied in hardware bag.
4. Insert printer into printer mount.
Center printer so paper feed doors
can be openned.
Move side and back brackets against
printer body and tighten in place.
Attach and secure power and
data transfer cables.
DS-74-L
Vehicle Base / Pole
.25-20 Flat Head Screws,
Washers and Nylok Nuts
