Installing the Pentax Printer:
1. Insert the paper roll spindle into the paper roll then place the roll into the printer
mount. The paper should roll off the top of the roll toward the printer. See figures 1 & 2
2. Plug the wires into the Pentax printer and insert into the mount. The left side of the
printer slides under the tab on the left side of the mount. The printer will then nest
inside the formed flanges on the mount base. The top cover will hold the printer in
place. See figures 3 & 4

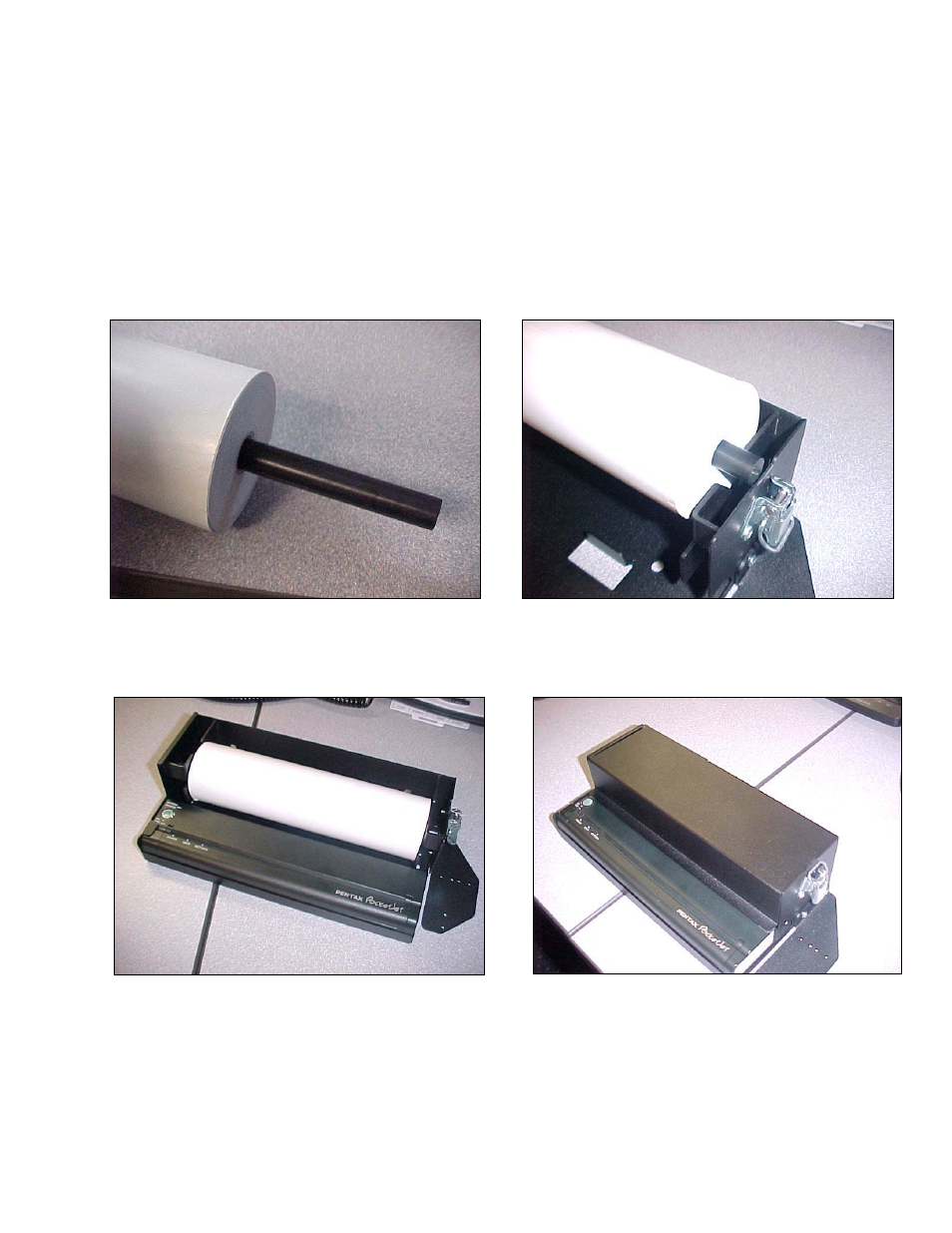

FIGURE 1. FIGURE 2.
FIGURE 3.
FIGURE 4.
