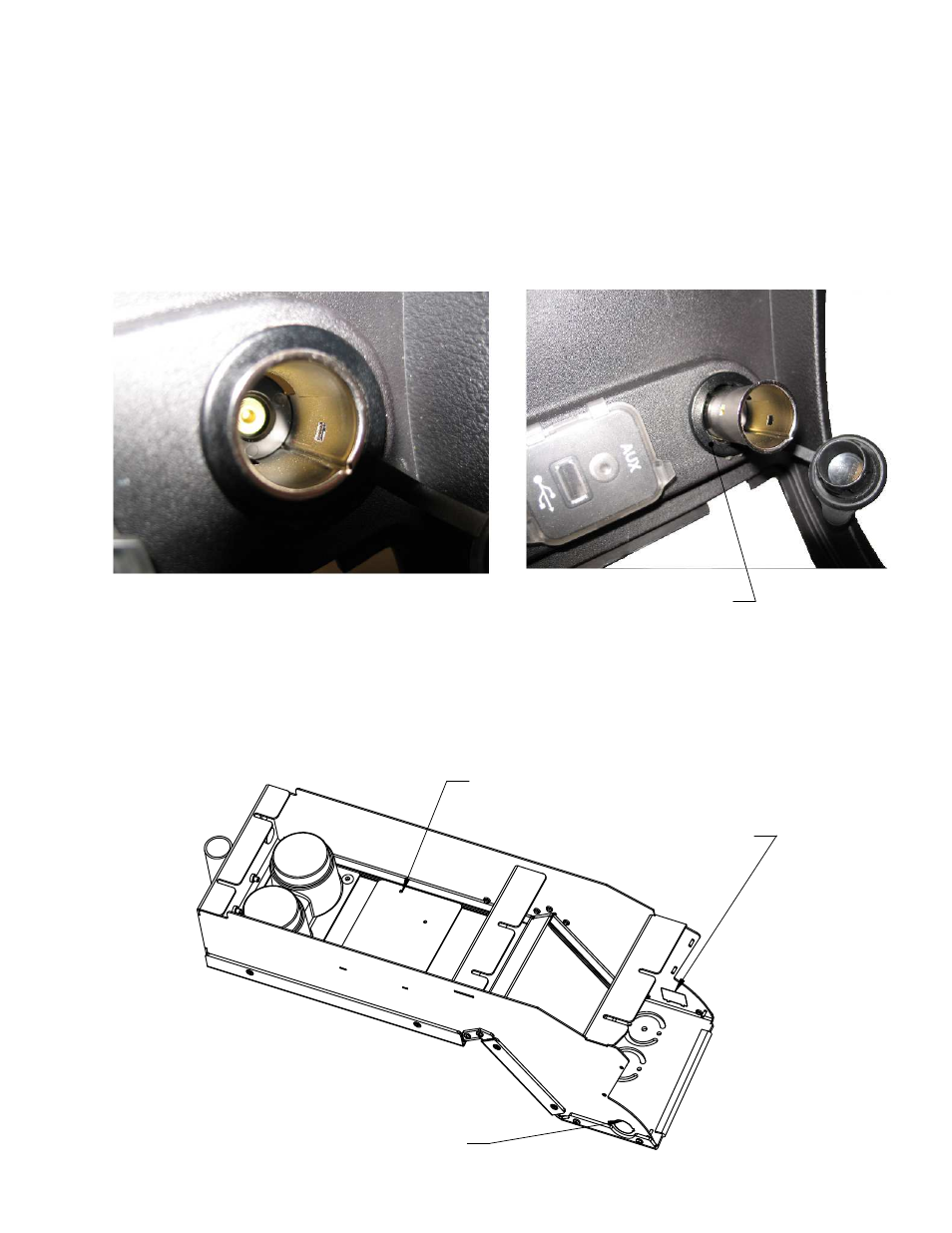

CAP AND RING Fig.1
Installing factory 12v jack (optional)
1.Remove one of the 12v jacks from the factory console. This can be
accomplished by pressing the jack through from the back of the console.
2. Seperate the cap and ring from the 12v jack by depressing the tabs inside the
jack (Figure 1) then pressing the metal sleeve out of the plastic ring.
3. Remove the knockout from the left side of the console box
4. Install the ring and cap into the hole in the console box. Note orientation of
notch.
5. Install the 12v jack into the ring.
6. Connect harness from factory console
Installing USB/MP3 Jack (optional)
1. Remove USB/MP3 box from factory console by depressing tabs on either side.
2. Remove the knockout from the right side of the console box.
3. Snap the USB/MP3 box into the opening in the console box.
FACTORY 12v
JACK KNOCKOUT
USB/MP3 KNOCKOUT
YAW SENSOR PLATE
