Gamber-Johnson 7170-0218 User Manual

Installation instructions, Form, Product revision

background image

Rev.C

INST-635

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications

Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is

and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.

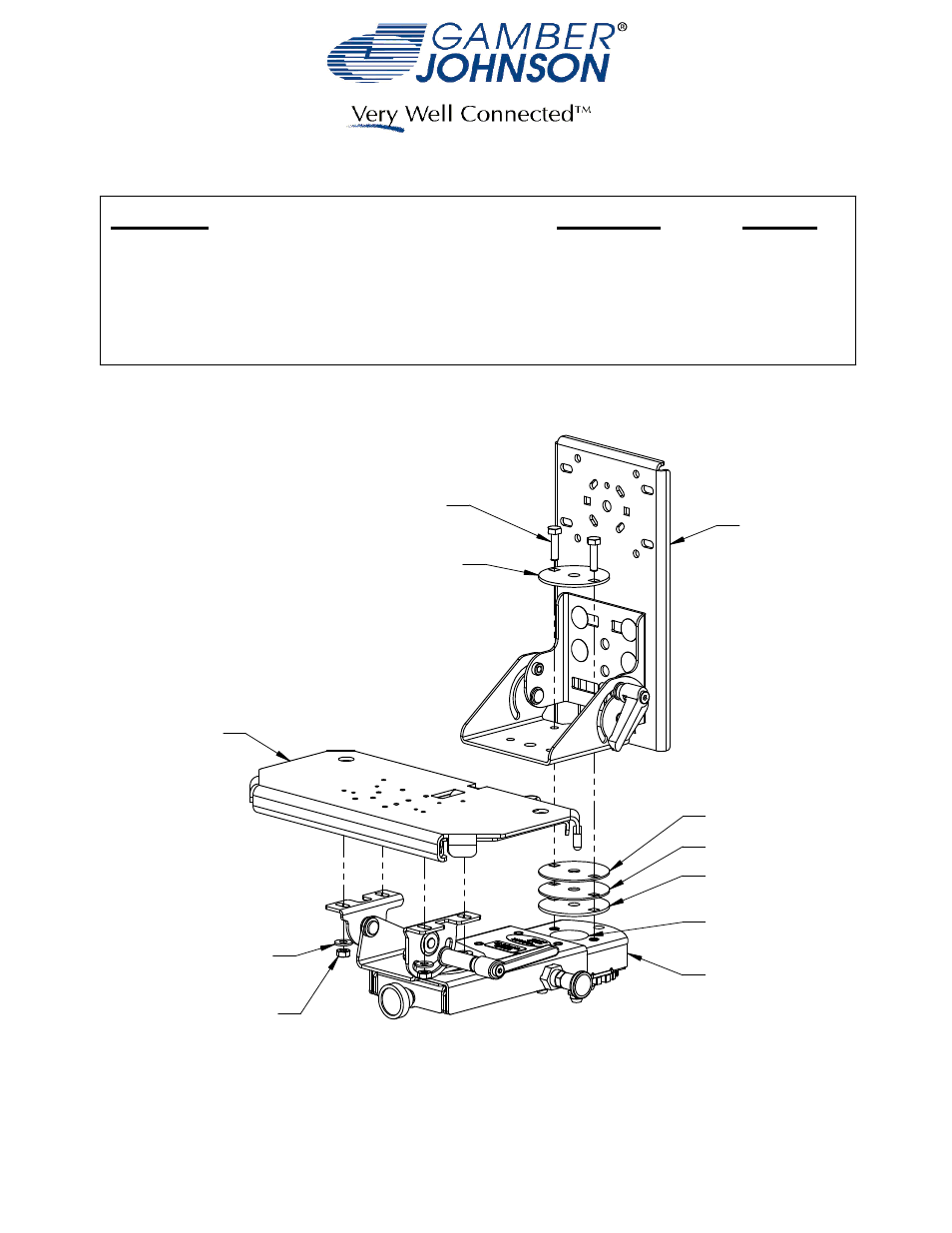

4X .25 FLAT WASHER

(INST-521)

KEYBOARD TRAY

7160-0498

2X .25-20 x 1.00 HEX HEAD BOLT

4X .25-20 NYLOK NUT

(INST-620)

DISPLAY MOUNT

TALL TABLET

(INST-451)

STEEL BACKUP PLATE

NYLON BEARING

STEEL BACKUP PLATE

NYLON BEARING

7160-0494
TABLET
DISPLAY MOUNT
(INST-606)
or
7160-0529

7160-0220
9" LOCKING SLIDE ARM

REMOVE HOLE PLUG

INSTALLATION INSTRUCTIONS

Form

PS-001

Product

Revision

If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868

Printing Spec:

KIT - TABLET DISPLAY MOUNT,

7170-0218-01

9" LOCKING SLIDE ARM, KEYBOARD TRAY

7170-0218

KIT - TALL TABLET DISPLAY MOUNT,
9" LOCKING SLIDE ARM, KEYBOARD TRAY

Assemble 7170-0218 and 7170-0218-01 Kit components as shown below.
Refer to the instruction sheet supplied with each component for details specific
to the component.

© Copyright 2014 Gamber-Johnson, LLC
