BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183
MODEL 1415
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice
APPROVAL/STAMP
P/N 35043 Rev P (6/11)
DIMENSIONS: Single Double
Number of sections: 1 2
Number of controls: 1 2
Number of compartments: 1 2
Size of compartments: 20” x 20” x 9” (508mm x 508mm x 229mm)
Clearance below oven: 4” (102mm) minimum
Counter space: 27-3/8” x 23-11/16” (695mm x 602mm)
Minimum entry clearance: 23” (548mm)
POWER SUPPLY:
1400 Series (three heaters)
208 VAC, 60 Hz, 1 Phase, 3750 Watts, Line Amps 18
208 VAC, 60 Hz, 3 Phase, 3750 Watts, Line Amps 10-10-10
220-240 VAC, 60 Hz, 1 Phase, 3750 Watts, Line Amps 16
220-240 VAC, 60 Hz, 3 Phase, 3750 Watts, Line Amps 9-9-9
MINIMUM ENTRY CLEARANCE:
Uncrated 17” (431 mm)
Crated 26” (660 mm)
SHIPPING INFORMATION:
Approx. Weight:
Single: 253 lbs. (115 kg)
Double: 506 lbs. (229 kg)
Crate size: 33” x 36” x 35”
(838 mm x 914 mm x 889 mm)

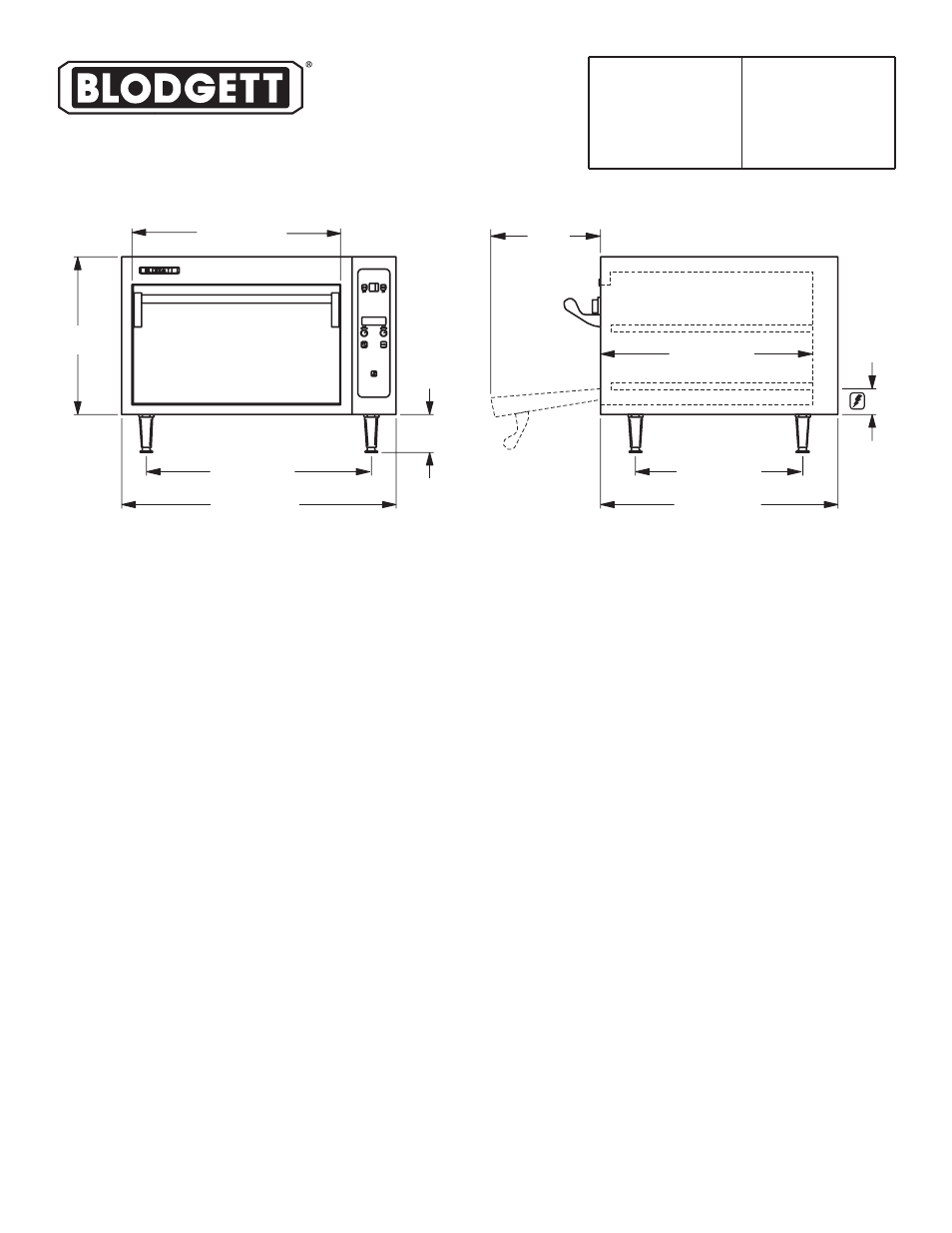

FRONT VIEW
22-3/8” (568mm)
27-1/4” (692mm)
20-3/4” (527mm)
16-3/4”
(425mm)
4” (102mm) min.
5-3/8” (137mm) max.
SIDE VIEW
2-3/4”
(70mm)
11”
(279mm)
21-1/8” (537mm)
16-5/8” (422mm)
23-5/8” (600mm)
CLOSED
OPEN
