Gamber-Johnson 7160-0344 User Manual
Page 2
STEPS FOR ASSEMBLY:

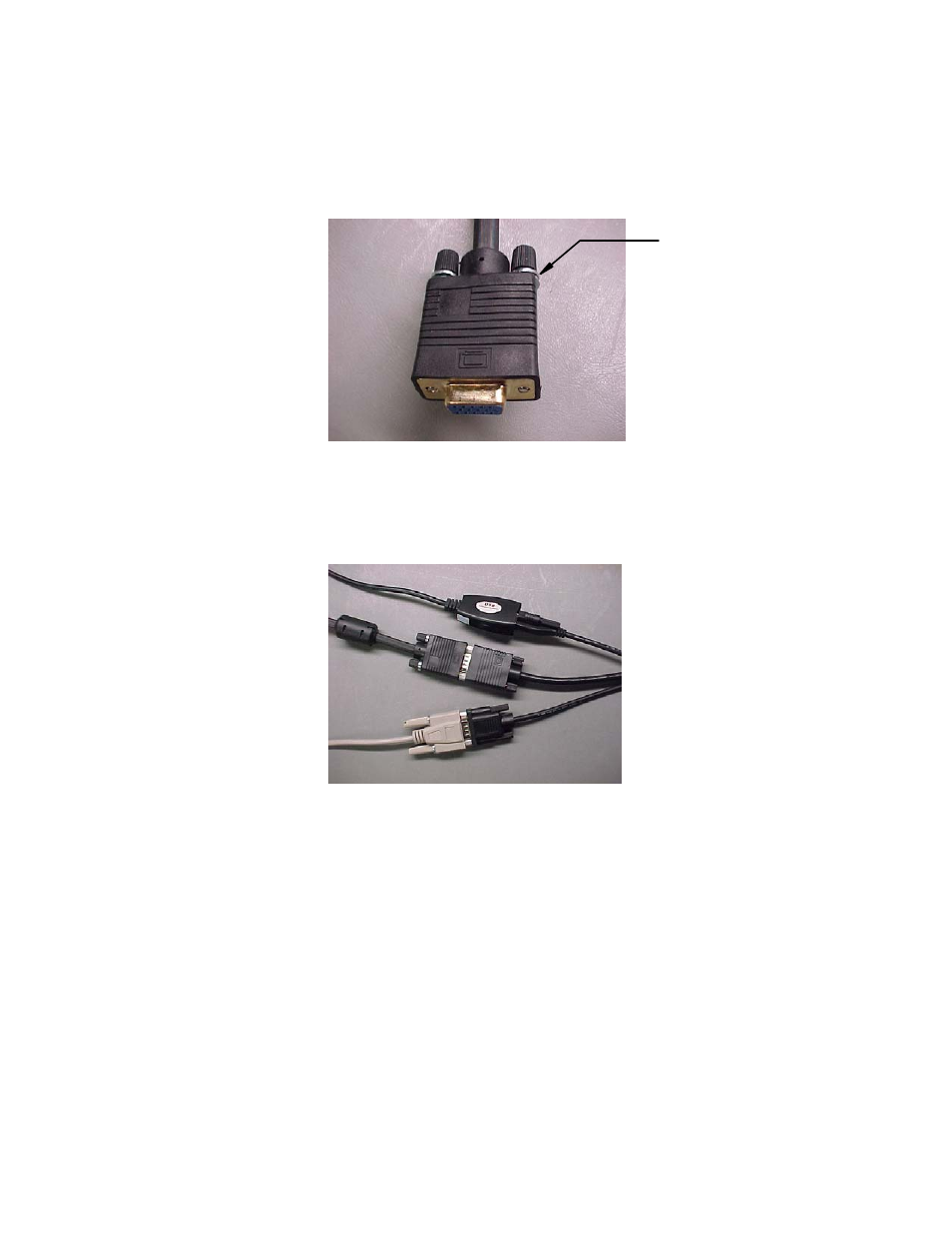

3. Remove attachment pins from 15' Video Extension Cable (14402).
Unscrew the pins from the female end and place 2 washers (9000-0045) over
eah pin and replace. See Figure below.
4. Assemble all three Extension Cables to 6' PDRC Cable as shown in
Figure below.
5. Apply Shrink Tubing over the connections and shrink in place. This is
especially important for the USB Cable as there is no retension pins for this
part of the assembly. Note that the USB Repeater is attached to this
connection. See Figure above.
Washers
