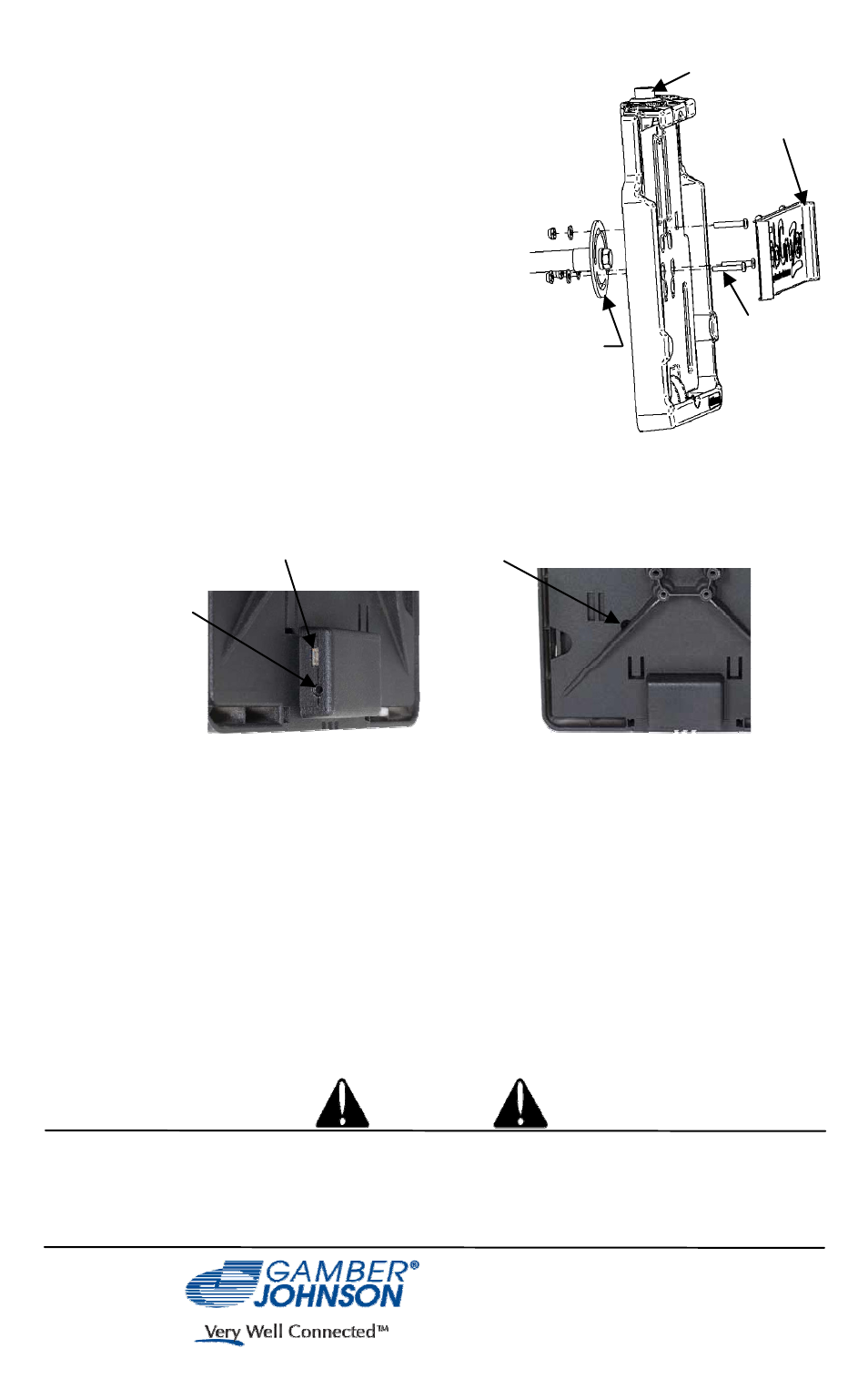

Mounting/Installation:
•
Take out the Removable Insert by prying at the top and
assemble the TabCruzer to mount (not supplied) using
supplied fasteners. The TabCruzer can be wall mounted
using wall anchors and/or wood screws (not included)
•
Connect the Micro-USB Cable and 3.5mm Stereo
Cable to the appropriate jack on the back of the
TabCruzer.
•
Secure cables to the Cable Strain Relief Fea-
ture in the rib using supplied cable tie.
•
Plug Dual USB Car Charger into 12v acces-
sory outlet and plug USB cable into 2.1 A USB
Jack. Note: If using an ignition switched 12v accessory
outlet, your iPad will pause automatically when the vehicle
is turned off.
•
Plug 3.5mm Stereo Cable into aux jack of vehicle (if equipped). FM Transmit-
ters or Cassette Adapters (not included) can also be plugged into the TabCru-
zer.
Micro-USB Jack
3.5mm Stereo
Jack
Use:
•
For iPad 2, reinstall the Removable Insert.
•
Fully depress Lock Button to open TabCruzer.
•
Slide your iPad into TabCruzer. Carefully line up docking connector.
•
Press down on your iPad to fully seat.
•
Slide TabCruzer closed until lock click is heard. Lock with key if desired.
•
When TabCruzer is powered audio will not play through your iPad speakers.
•
The USB Cable can be unplugged from the Car Charger for easy syncing
with a personal computer. Do not plug the USB Cable into vehicle or ste-
reo system USB jacks. Doing so may damage the TabCruzer, your iPad or
vehicle/stereo system.
3001 Borham Ave.
Stevens Point, WI 54481, USA
Phone: 715.344.3482
Toll Free: 800.487.9220
www.TabCruzer.com
Mount Not
Included
Cable Strain
Relief Feature
You must read and follow all of these installation instructions. Failure to follow the installation instructions may result in serious bodily injury or
death. Do not install or use the TabCruzer in the area in which the airbag on the vehicle may be deployed. The installer and user of the TabCru-
zer are responsible for installing and using this device outside the area in which an airbag may be deployed. Abide by all state and federal laws
when mounting and using this device. Do not use this device while operating a motor vehicle. Keep these instructions with the product and
readily available in the vehicle for future reference of other users of the product.
Warranted to be free from defects in materials and workmanship for one year. See www.tabcruzer/warranty for more information.
If you need assistance of have questions, call Gamber-Johnson at 1.800.487.9220
Lock Button
Removable
Insert
WARNING
Mounting
Hardware
7160-0345
INST-543 Rev C
