INSERTING THE COMPUTER INTO THE CRADLE
1. With the slide plate in the open
position, insert the bottom of the
computer into the cradle. Make sure
the guide tabs are lined up with the
pockets on the back side of the
computer.
Rotate the top of the comptuter under
the top hooks until the computer is
resting on the two vertical walls sticking
out from the slide plate.
(see Figues 1, 2 & 3)
(Note: If your FZ-G1 computer has an
extended battery or card slot
attachment on the back side, you will
need to remove the guide block from
the face of the dock before inserting
the computer.)
3. Push downward on the slide plate
to latch the cradle. (See Figure 4)
4. (Optional) The key lock can now
be used for security purposes.
TO REMOVE THE COMPUTER
1. Unlock if locked.
3. Press the Latch Button. The slide
plate is spring loaded and should raise
with your hand when you release the
button.
4. Rotate the top of the computer out
of the dock to remove.

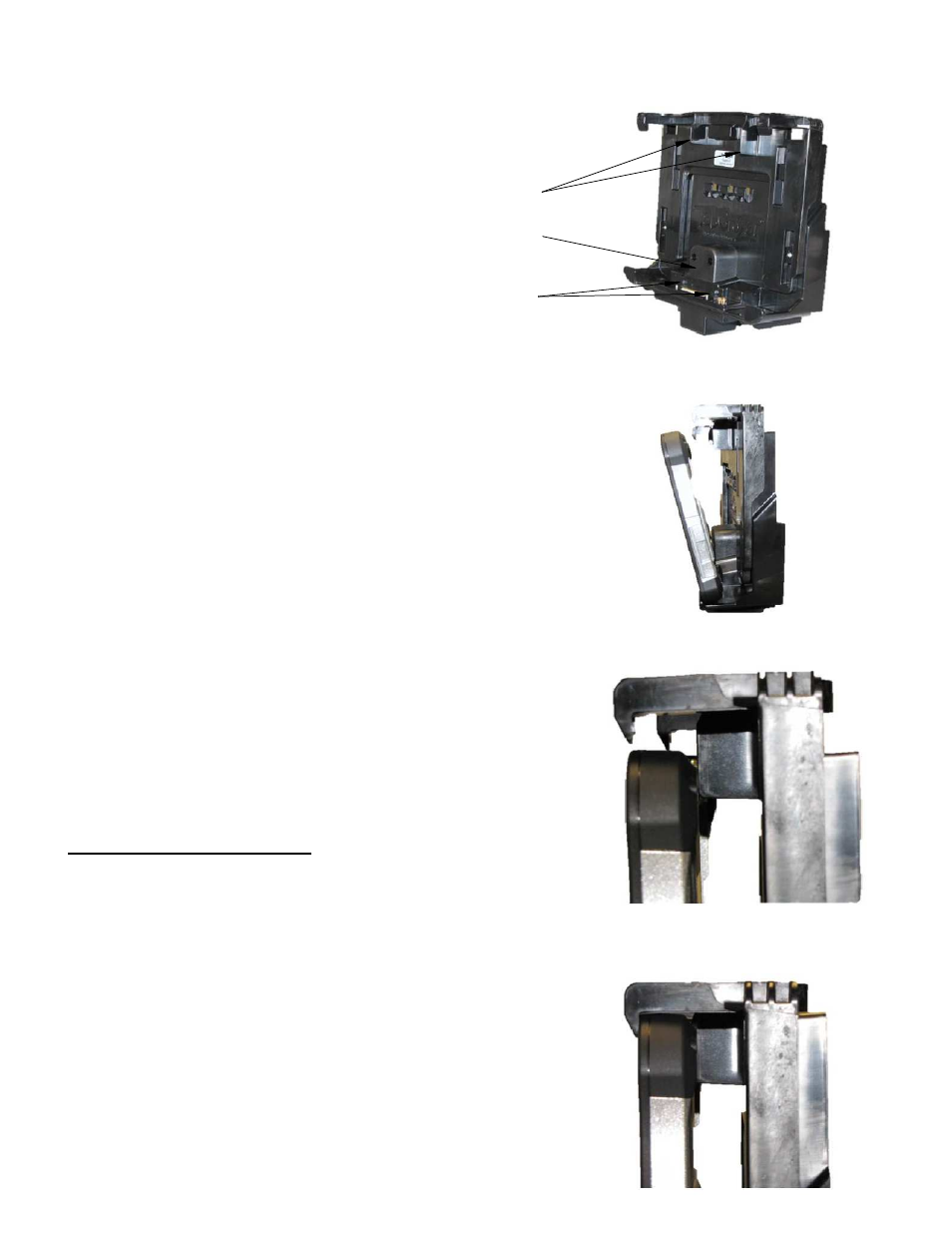

Figure 2
Figure 3
Figure 4
Figure 1
Verital Walls
Guide tabs
Guide Block
