7160-0252 LED Light Assembly
The LED is powered using the red and
black wires on the light base.
The LED Assembly is designed to operate on 12 VDC.
In a negative ground vehicle:
Connect the RED wire to the positive pole of the
vehicle battery or power distribution box.
It is recommended that a user-supplied fuse holder
and 1 amp fuse be installed on the red wire.
Connect the BLACK wire to a suitable chassis GROUND
or the NEGATIVE pole of the battery.
Turn on the LED by pressing the Activation Button
on the head on the LED Assembly.
The LED has three light options: White, Red and White/Red.
Press the Activation Button to toggle thru the options.
Hold the Activation Button down for approximately one second to turn the LED off.
The LED Light Assembly can be mounted on
any corner of the Notpad™V-LT.
Remove the two Phillips Flat Head Screws found
on the corner.
Place the LED Light Assembly over the holes and
attach using two #8-32 x .62 Socket Head Screws
and two #8 Flat Washers.
Notepad™V-LT Accessories Cont.

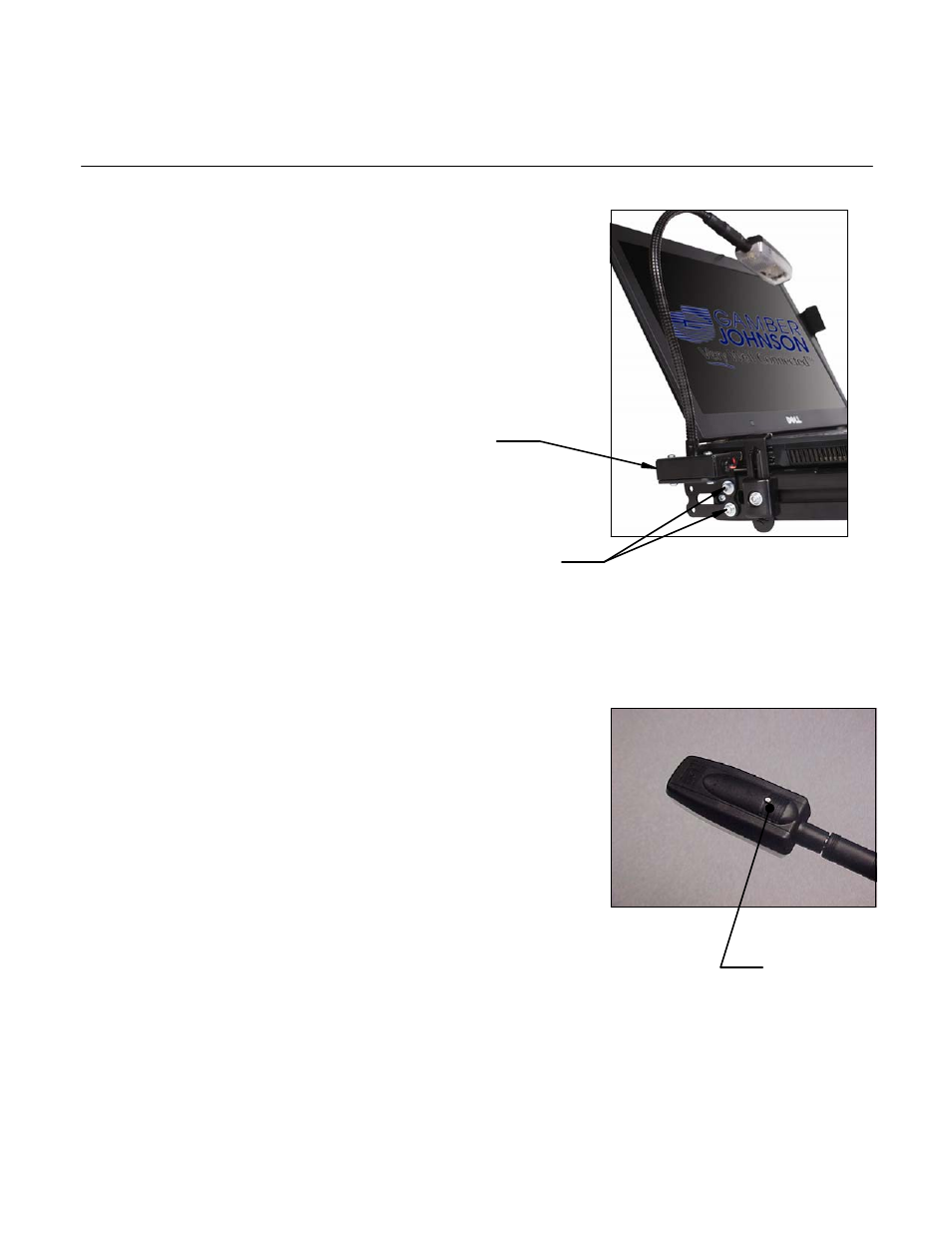

Activation Button
LED Light Assembly
#8-32 x .62 Socket Head Screws
& #8 Flat Washers
