Installation Instructions for
Dockyard 1 Light Outdoor Post
1.0
OL9107
CAUTION - RISK OF FIRE
This product requires installation by a qualified electrician.
Before installing be sure to read all instructions and
TURN THE POWER TO THE ELECTRICAL BOX OFF.
Outdoor
OL9107_
G P I : ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product may be dimmed with a standard incandescent dimmer.

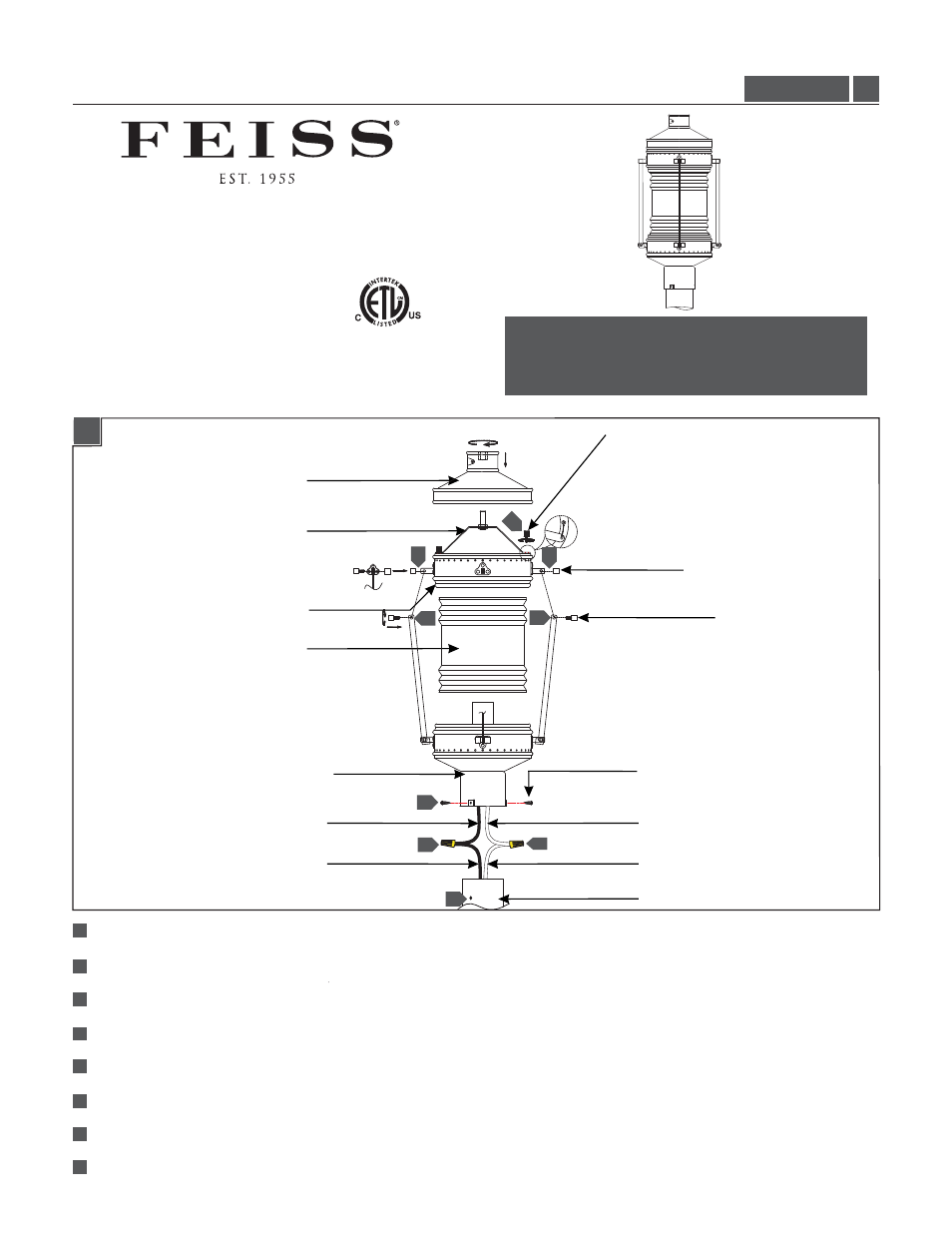

This instruction shows a typical installation.
1
2
1A
CAP SCREW
CAP NUT
SHADE
FIXTURE COVER
3
5
4
5
THUMB SCREW
FRAME
Connect the fixture to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Secure the fixture base to the post with the provided post screws making sure to neatly tuck in all wiring.
Install the lamp by screwing it into the socket. Refer to the label on the lamp socket for Max Wattage information.
Install shade by placing it in the fixture base and secure it to the fixture top with the provided cap screws and nuts.
Install the frame to the fixture top by securing it with the provided thumb screws.
Install the fixture cover by securing it onto the fixture top to tighten.
FIXTURE TOP
HOT WIRE
BLACK WIRE
POST SCREW
NEUTRAL WIRE
WHITE WIRE
2
FIXTURE BASE
POST
3
8
6
7
8
5 5
5
6
8
