System Manual Safety System CES-A-S5H01
8
A
B
1

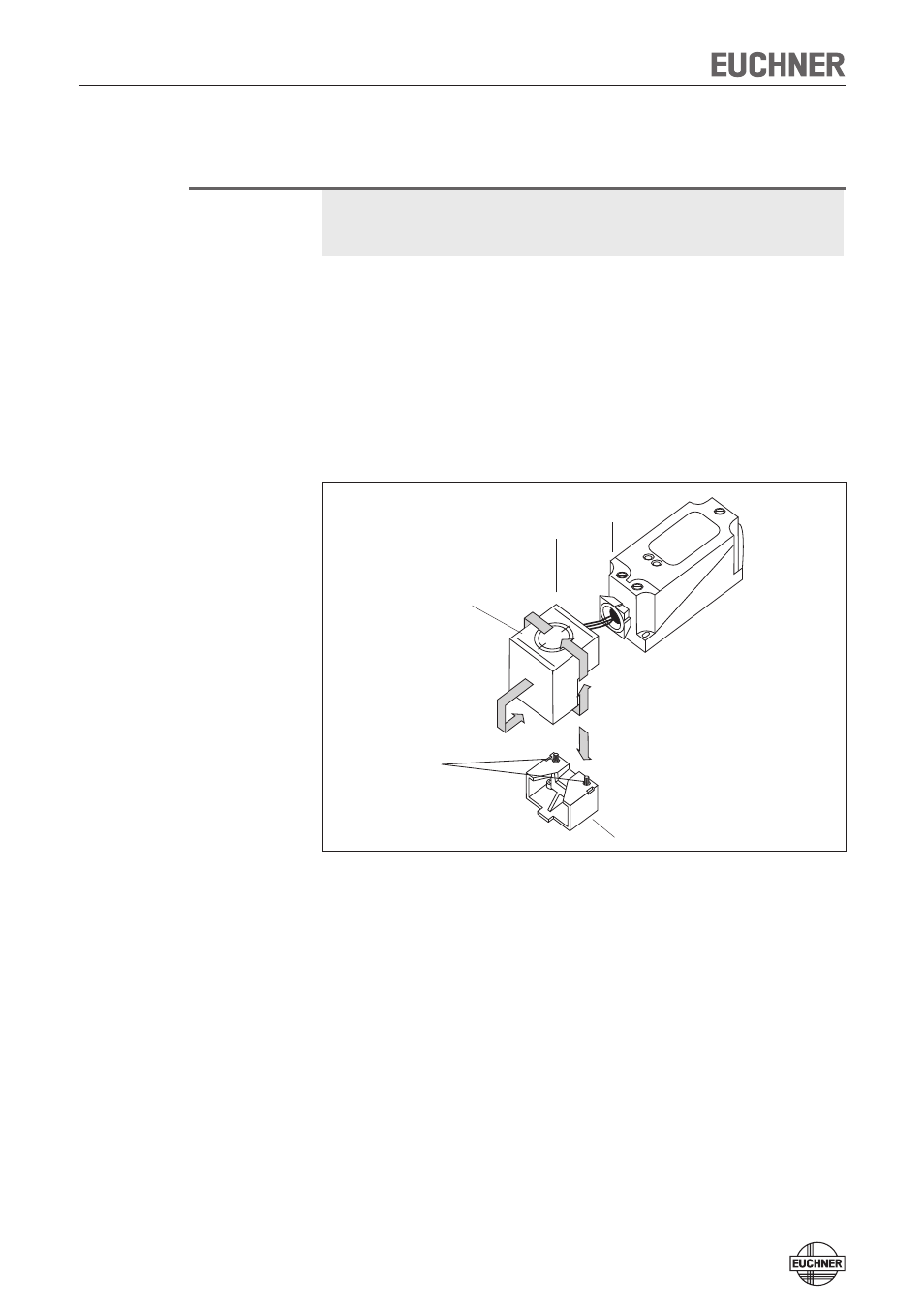

Changing the approach direction
Caution!
Risk of damage to equipment as a result of trapped cables.
Make sure that the cables are not trapped or torn off when the approach
direction is changed. 
The active face of the read head can be adjusted in 5 directions. The face is marked
with the EUCHNER logo. The center of the circle corresponds to the middle of
the read head.
Remove clamp from read head by undoing the screws (1).
Pull read head from the dovetail guide on the housing and rotate by 90° (ar-
row A). Then place the active face on the read head in the required position by
rotating in the direction of arrow B).
Assemble in reverse order of disassembly.
1.
.
3.
Evaluation unit
Clamp
Read head
Active face
