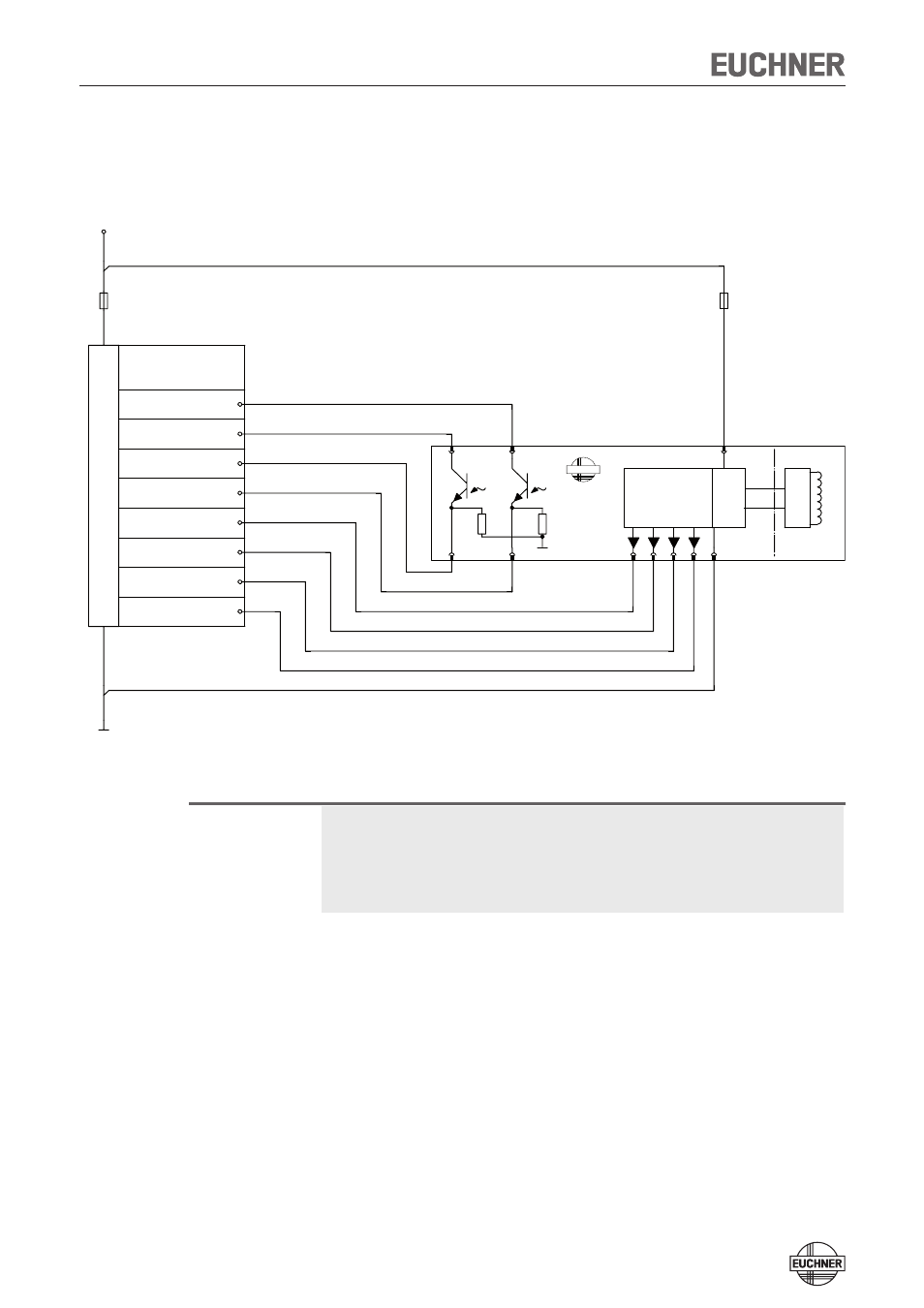

Connection example
CES-A-S5H-01
Important!
To achieve category 4 according to EN ISO 13849-1, it is necessary to monitor
the downstream contactors (not shown here).
This example shows only an excerpt that is relevant for connection of the CES
system. The example illustrated here does not show complete system planning.
The user is responsible for safe integration in the overall system.
+24V DC
-F1
GND
Po
w
er
S
up
pl
y
Safety - PLC with static /
dynamic signals
O1 Pulsed output
O2 Pulsed Output
I1 Input
I2 Input
I4 Input
I5 Input
I3 Input
I6 Input
A1
+LA
LA
+LB
LB 0V
+UB Read head
2
1
4
5
EUCHNER
CES-A-S5H-01
090640
D3
11
D2
10
D1
9
D0
8 6
-F2
3
