System Manual Safety System CES-A-S5H01
0

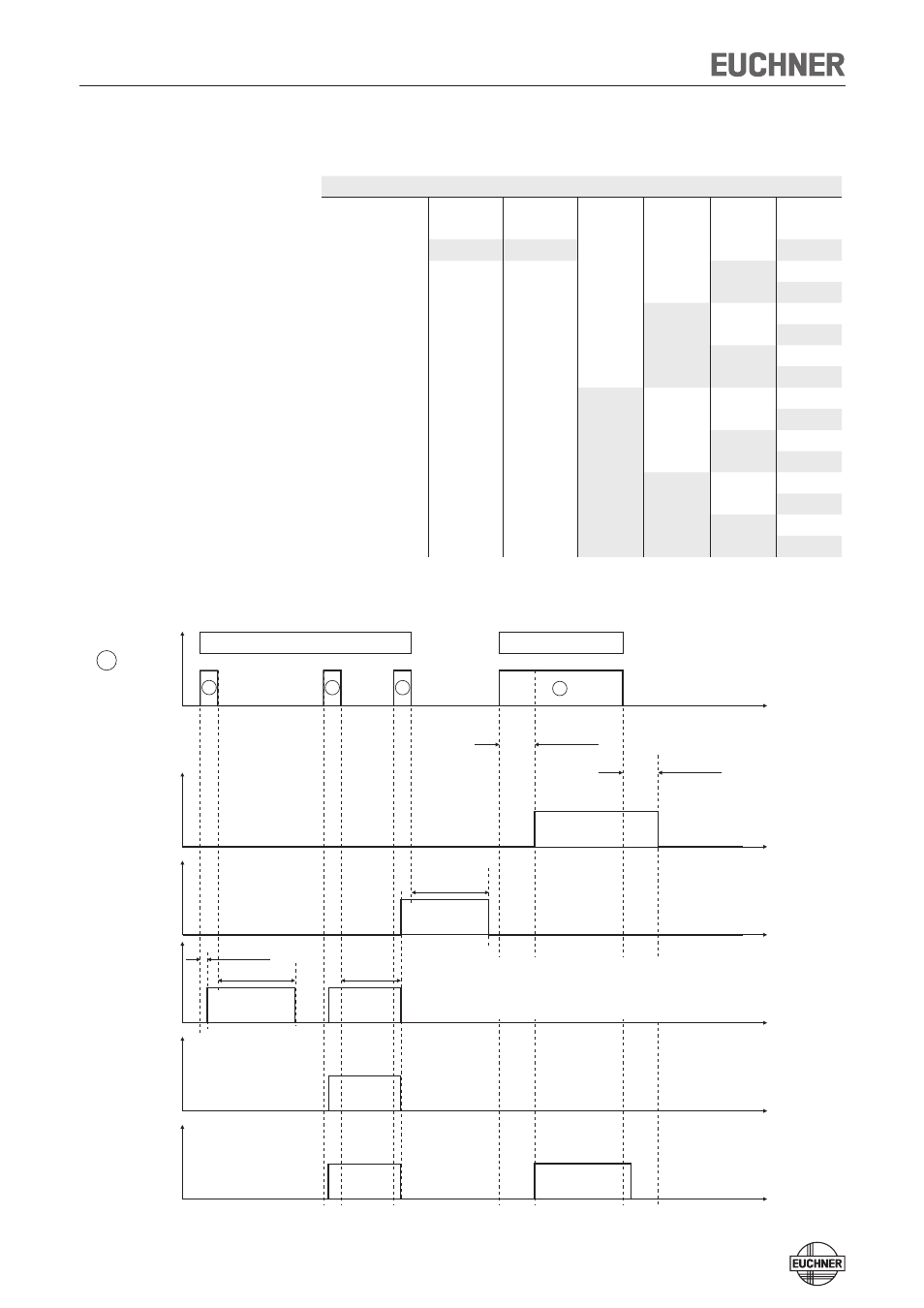

Truth table
Actuator Safety outputs Data outputs/LED displays
LA LB D3 D D1 D0
No actuator 0 0 0 0 0 0
Safety actuator 1 1 0 0 0 1
Actuator 0 0 0 0 1 0
Actuator 3 0 0 0 0 1 1
Actuator 4 0 0 0 1 0 0
Actuator 5 0 0 0 1 0 1
Actuator 6 0 0 0 1 1 0
Actuator 7 0 0 0 1 1 1
Actuator 8 0 0 1 0 0 0
Actuator 9 0 0 1 0 0 1
Actuator A 0 0 1 0 1 0
Actuator B 0 0 1 0 1 1
Actuator C 0 0 1 1 0 0
Actuator D 0 0 1 1 0 1
Actuator E 0 0 1 1 1 0
Actuator F 0 0 1 1 1 1
Pulse diagram
Transponder
Nr.
in the
operating
distance
Yes
No
Safety
outputs
LA, LB
ON
OFF
Position actuator
4 7 8 1
Safety actuator
Time t
200 ms
4 … 9 ms
200 ms
< 200 ms
30 … 180 ms
30 … 180 ms
Monitoring
outputs
D3
D2
D1
D0
ON
OFF
ON
OFF
ON
OFF
ON
OFF
t
t
t
t
t
If a new transponder enters the operating distance
within the switch-off delay, the switch-off delay
is interrupted and the new transponder number
signaled.
