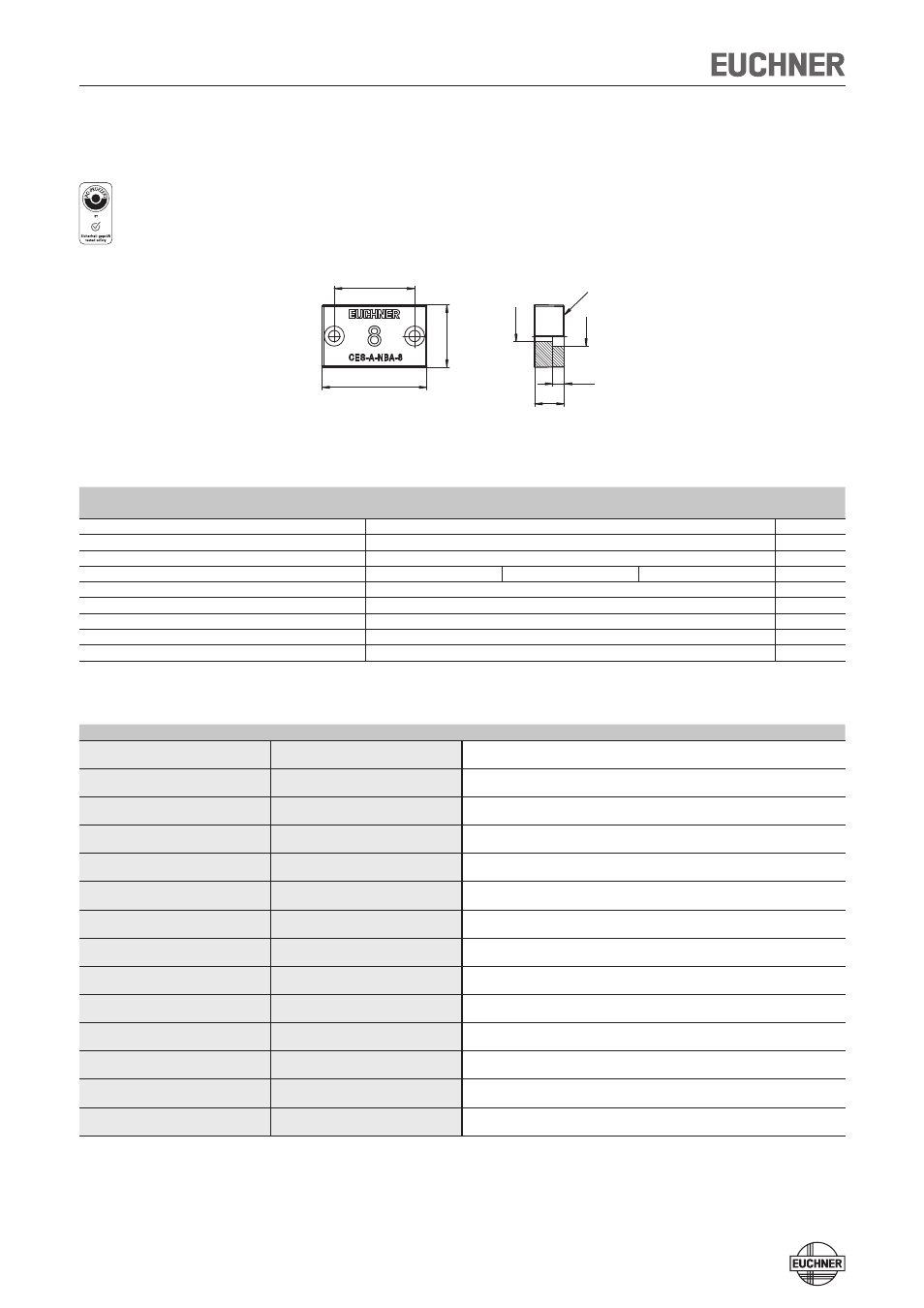

System Manual Safety System CES-A-S5H01
6
Position actuator CES-A-NBA-.
in combination with safety switch CES-A-S5H-01
Dimension drawing
Technical Data
Parameter
Value
Unit
min.
typ.
max.
Housing material
Fortron, reinforced thermoplastic, fully encapsulated, green
Dimensions
4 x 5 x 1
mm
Weight
0,0
kg
Ambient temperature
-5
-
+70
°C
Degree of protection
IP67
Installation position
Active face opposite read head
Power supply
Inductive via read head
Storage capacity
4 bits (1 BCD digit)
Data retention time (T = ° C)
approx. 0 years
Ordering table
Series
Actuator number
Order no. / item
CES-A-NBA-2
090682
CES-A-NBA-
CES-A-NBA-3
3
090683
CES-A-NBA-3
CES-A-NBA-4
4
090684
CES-A-NBA-4
CES-A-NBA-5
5
090685
CES-A-NBA-5
CES-A-NBA-6
6
090686
CES-A-NBA-6
CES-A-NBA-7
7
090687
CES-A-NBA-7
CES-A-NBA-8
8
090688
CES-A-NBA-8
CES-A-NBA-9
9
090689
CES-A-NBA-9
CES-A-NBA-A
A
090690
CES-A-NBA-A
CES-A-NBA-B
B
090691
CES-A-NBA-B
CES-A-NBA-C
C
090692
CES-A-NBA-C
CES-A-NBA-D
D
090693
CES-A-NBA-D
CES-A-NBA-E
A
090694
CES-A-NBA-E
CES-A-NBA-F
F
090695
CES-A-NBA-F
Approvals
Approvals
AB
0,1
32
±0,15
<42>
<25>
Ш
8
Ш
4,5
4,6
12
-
0
Active face
safety screws M4 x 14
are supplied
