CE Source Four jr / jr Zoom Assembly Guide
7
13. Place the spring (8) on the protrusion on the inside of the index
hub (6).
14. Insert bolt (19) through the light socket baffle (2), thread nut
(12), through spring (8) and through the index hub (6) of the
housing socket (1), joining the two castings. Make sure wires are
not pinched between the two pieces.
15. Before proceeding, check again to make sure the wires are still
positioned as indicated in figure 5. Adjust if necessary.
16. Press the two castings together firmly so the bottom of the light
baffle (2) sits on top of the cable clamp (17), then install the X-Y
lampset (3) and Z lamp knob (4). Hand tighten the knob all the
way to the right.
Important: You must install Z knob as described above to ensure
proper lamp focus travel.

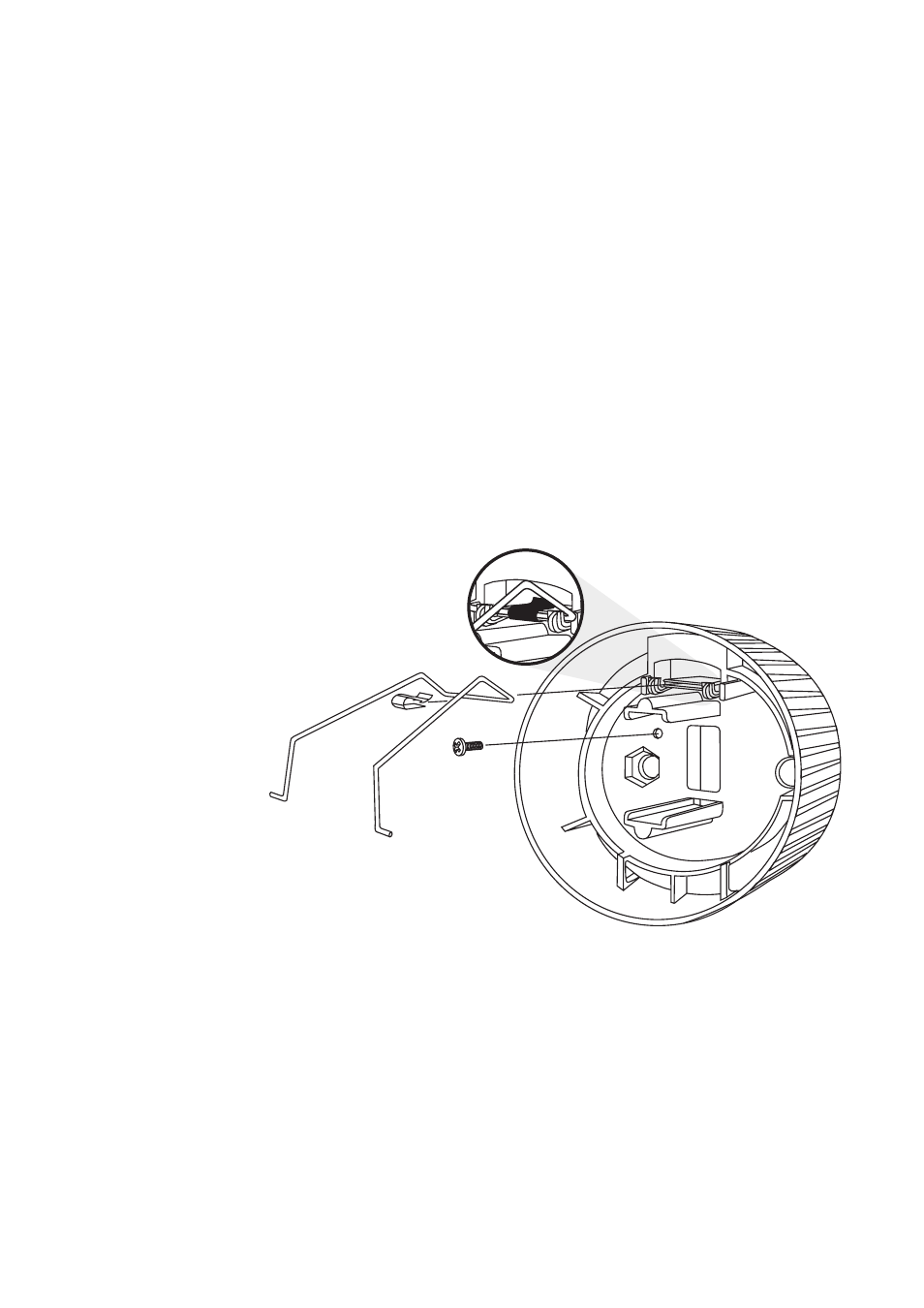

17. Set the crossbar of the retainer clip (25) under the two hooks on
the clip bracket as shown in figure 7.
18. Place the Tinnerman clip (26) over the retainer clip crossbar
between the two hooks and press it down firmly until it snaps
into place.
Figure 7
