Shutter assembly – ETC Source Four CE jr and jr Zoom Assembly Guide User Manual
Page 12
12
Electronic Theatre Controls, Inc.

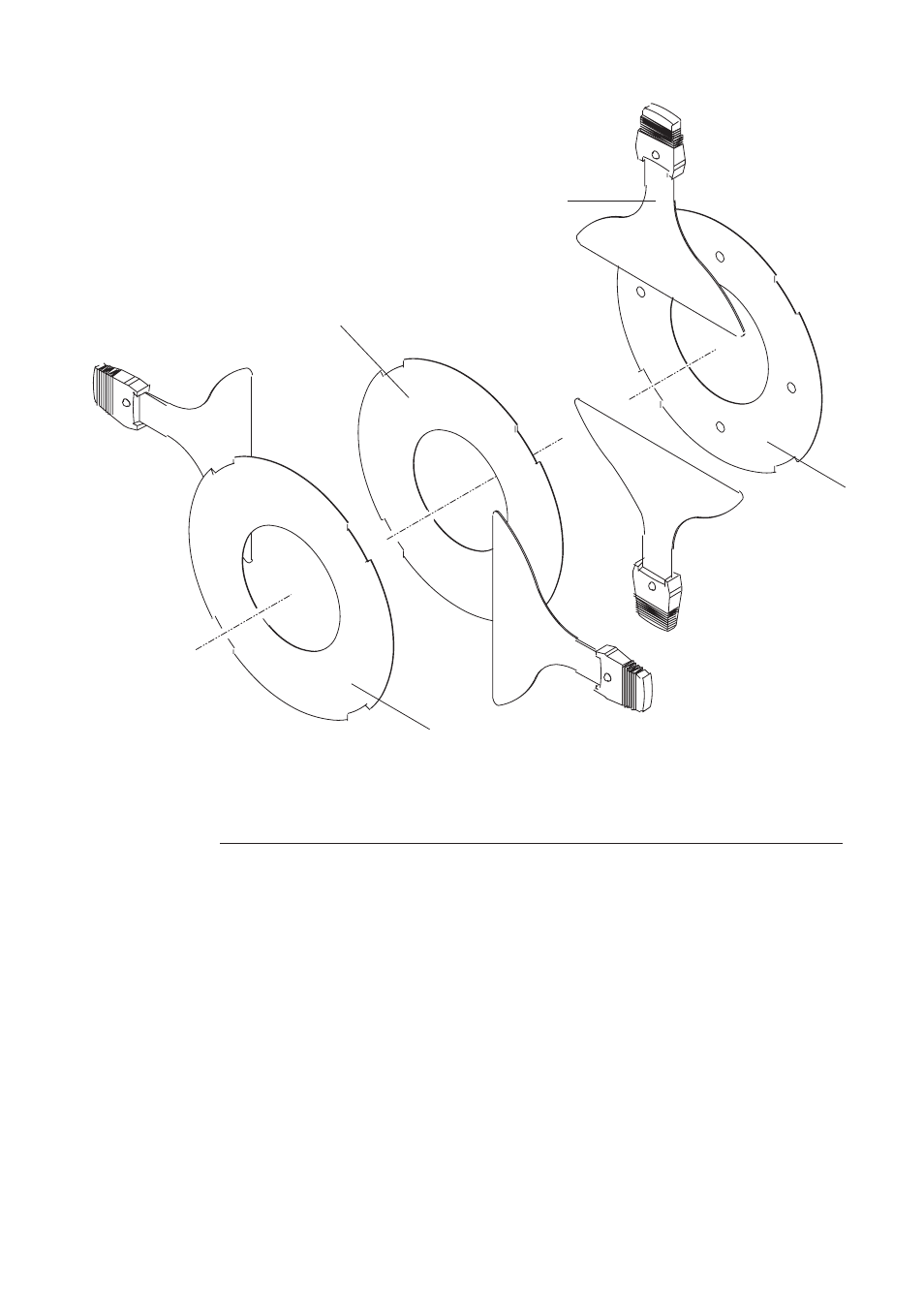

Shutter assembly
Reference
Part
Description
Quantity
number
number
required
1
7062A2002
Shutter blade assembly
4
2
7062A3016
Plate, divider
1
3
7062A3010
Plate, gate (middle)
1
4
7062A3030
Plate, divider with dimples
1
5
7062A3031
Plate, support, spring (see figure 12)
1
6
HW754
Spring, shutter (see figure 12)
4
1
4
2
3
