4.8. I/Os
The Solo Hornet has four digital inputs, two digital outputs and one analog input.
4.8.1. Digital Input (J2)
The digital input level signal can be 5 V (TTL).
Pin (J2) Signal Function
14 IN1 Programmable input 1 (general purpose, RLS, FLS, INH)
15 IN2 Programmable input 2 (general purpose, RLS, FLS, INH)
16 IN3 Programmable input 3 (general purpose, RLS, FLS, INH)
17 IN4 Programmable input 4 (general purpose, RLS, FLS, INH)
18 IN5 Hi-Speed Programmable input 5 (event capture, Main Home,
general purpose, RLS, FLS, INH)
6 IN6 Hi-Speed Programmable input 6 (event capture, Auxiliary Home,
general purpose, RLS, FLS, INH)
7 INRET Programmable input return

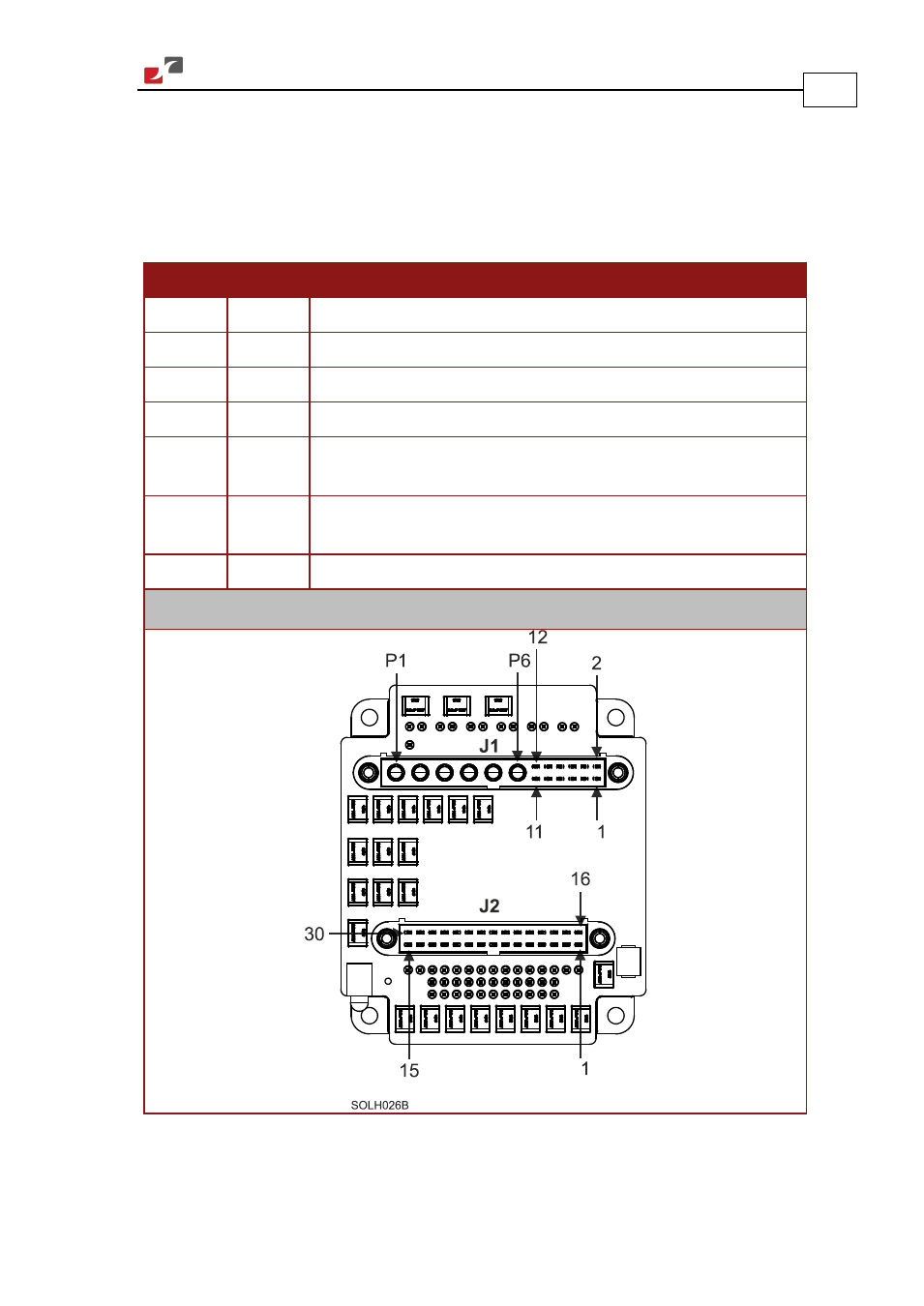

Pin Positions
Table 3: Digital Input Pin Assignments
