Cymbal Installation Guide

Installation

MAN-CYMIG (Ver. 1.3)

Pin

Signal

Function

Pin Position

J1‐9

Backup+ Supply

+VDC backup supply

J1‐8

Backup‐ Supply

Return (common) of the backup
supply

Table 6: Backup Cable Plug

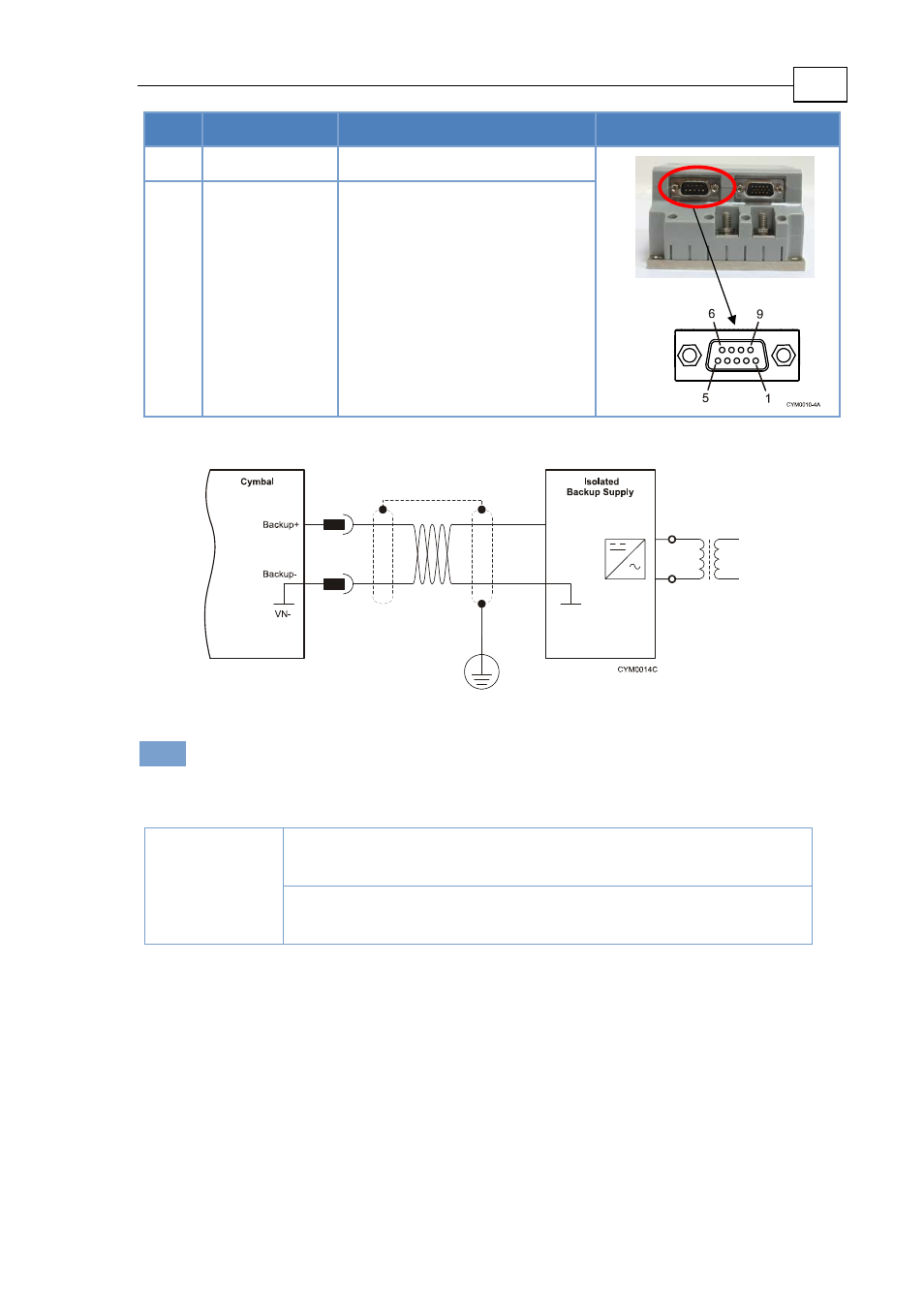

Figure 9: Backup Supply Connection Diagram

Note:

The return of the backup supply must not be connected to PE, as such a connection can

damage the drive.

“Smart” Control
Supply Options

Internal DC‐to‐DC converter that allows operation from DC power (no
need for auxiliary external supply for normal operation).

12 to 195 VDC supply for backing up the control parameters if DC power
is shut off.

J1
Male
