3.3. Mounting the Cymbal
The Cymbal has been designed for Wall Mount along the back (it can also be mounted
horizontally on a metal surface)
M5 socket head cap screws, one through each opening in the heatsink, are used to mount the
Cymbal (see the diagram below).
For full power output capability the Cymbal is designed to be mounted on an external heatsink.
It is highly recommended that the wall on which the Cymbal is mounted will have heat
dissipation capabilities. The Cymbal at “free air convection” (without an additional heatsink)
can dissipate around 12 W to 15 W.

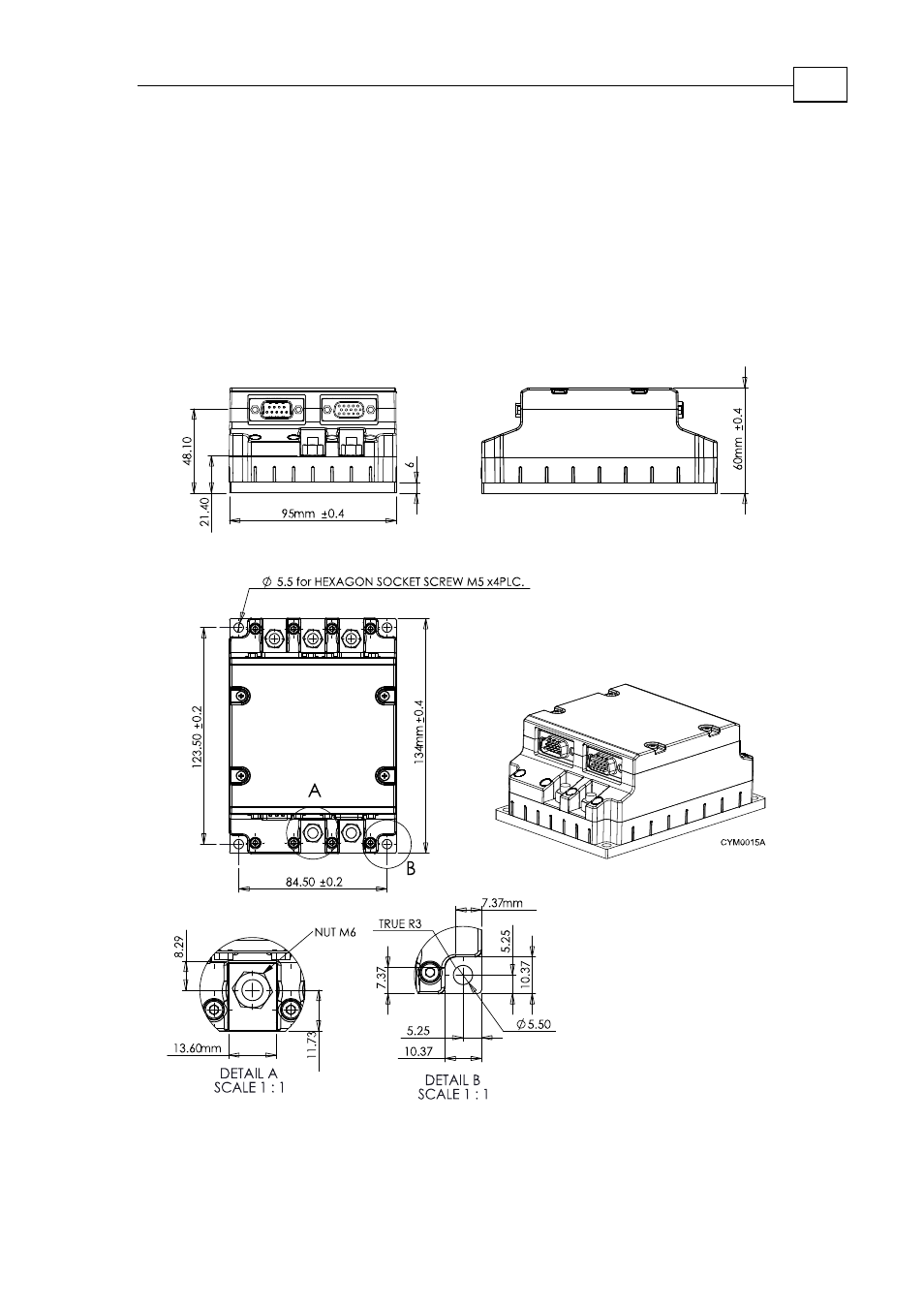

Figure 1: Mounting the Cymbal
