ElmoMC SimplIQ Analog Servo Amplifiers-Cymbal User Manual
Page 21

Cymbal Installation Guide
Installation
MAN-CYMIG (Ver. 1.3)
21

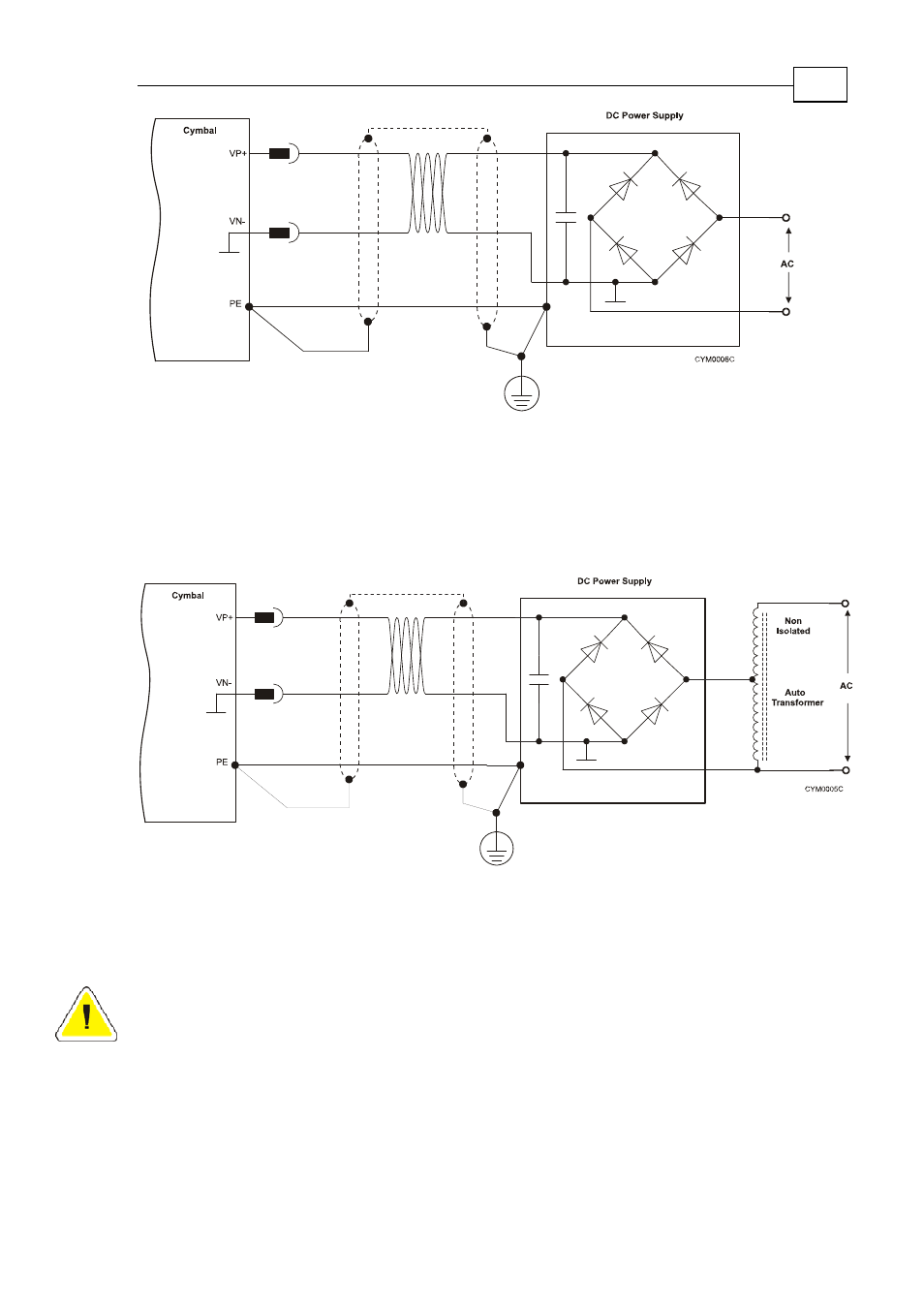

Figure 7: Non‐Isolated DC Power Supply
The Power Supply is directly connected to the AC line (The AC must be limited to 135 VAC not
to exceed the max 190 VDC in case of 200 VDC drive).
The network PE must not be connected to the Return of the Power Supply.
Figure 8: Non‐Isolated DC Power Supply
The Power Supply is directly connected to the AC line through an Autotransformer.
The network PE must not be connected to the Return of the Power Supply.
Caution: Connecting the PE to the VN‐ with a non‐ isolated power supply will cause damages
to the system (Any component that is connected to the system might be damaged).
www.elmomc.com
