Solo Trombone Installation Guide Installation
MAN-SOLTROIG (Ver. 1.203)
www.elmomc.com
41

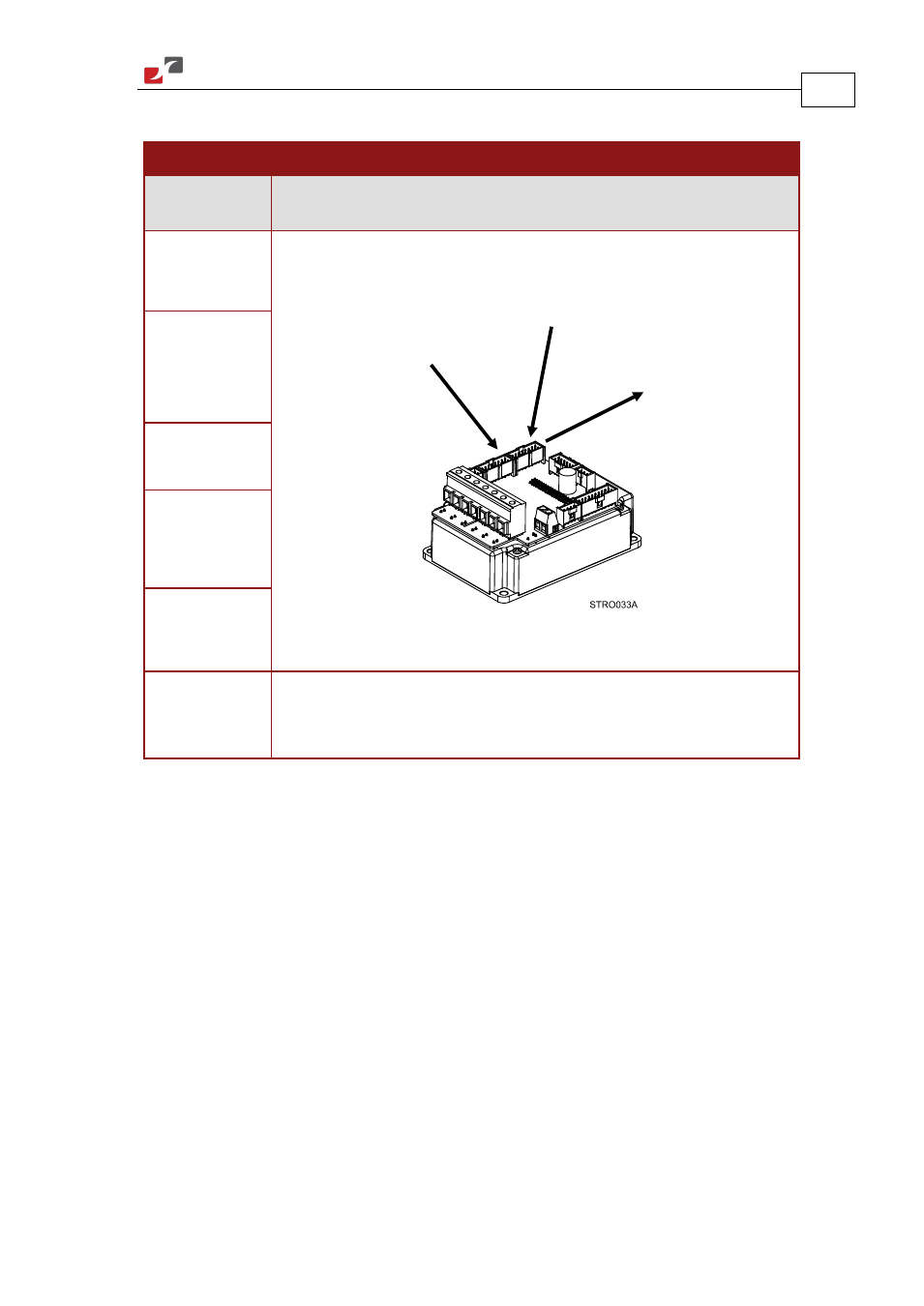

Main Feedback Auxiliary Feedback: Input
Software
Setting
YA[4] = 0
(Auxiliary Feedback: input)
Incremental
Encoder Input
Interpolated
Analog
(Sine/Cosine)
Encoder Input
Resolver Input
Potentiometer
Tachometer
Input
Absolute
Encoder Input
(All types)
Typical
Applications Any application where two Feedbacks are used by the drive.
The Auxiliary Feedback ports serve as an input and output for Pulse &
Direction Commands.
Main Feedback:
Incremental Encoder
OR Interpolated
Analog (Sin/Cos) Encoder
OR Resolver
OR Potentiometer
OR Tachometer
OR Absolute (all types)
Auxiliary Feedback:
B1: Differential
Pulse & Direction
Commands Input
Auxiliary Feedback:
B2: Differential Buffered
Pulse & Direction
Commands Output of B1
