3.7. Main Power and Motor Power
Pin Function Cable Pin Positions
VP+ Pos. Power input Power
PR Power return Power
PE Protective earth Power
AC Motor Stepper DC Motor
PE Protective earth Motor
Chassis
Motor
Chassis
Motor Chassis
M1 Motor phase Phase 1 Phase 1+ +
M2 Motor phase Phase 2 Phase 1- -
M3 Motor phase Phase 3 Phase 2+ NC
M4 Motor phase NC Phase 2- NC
Note: When connecting several Bells to several motors, all should be wired in an identical
manner. This will enable the same SimplIQ program to run on all drives.

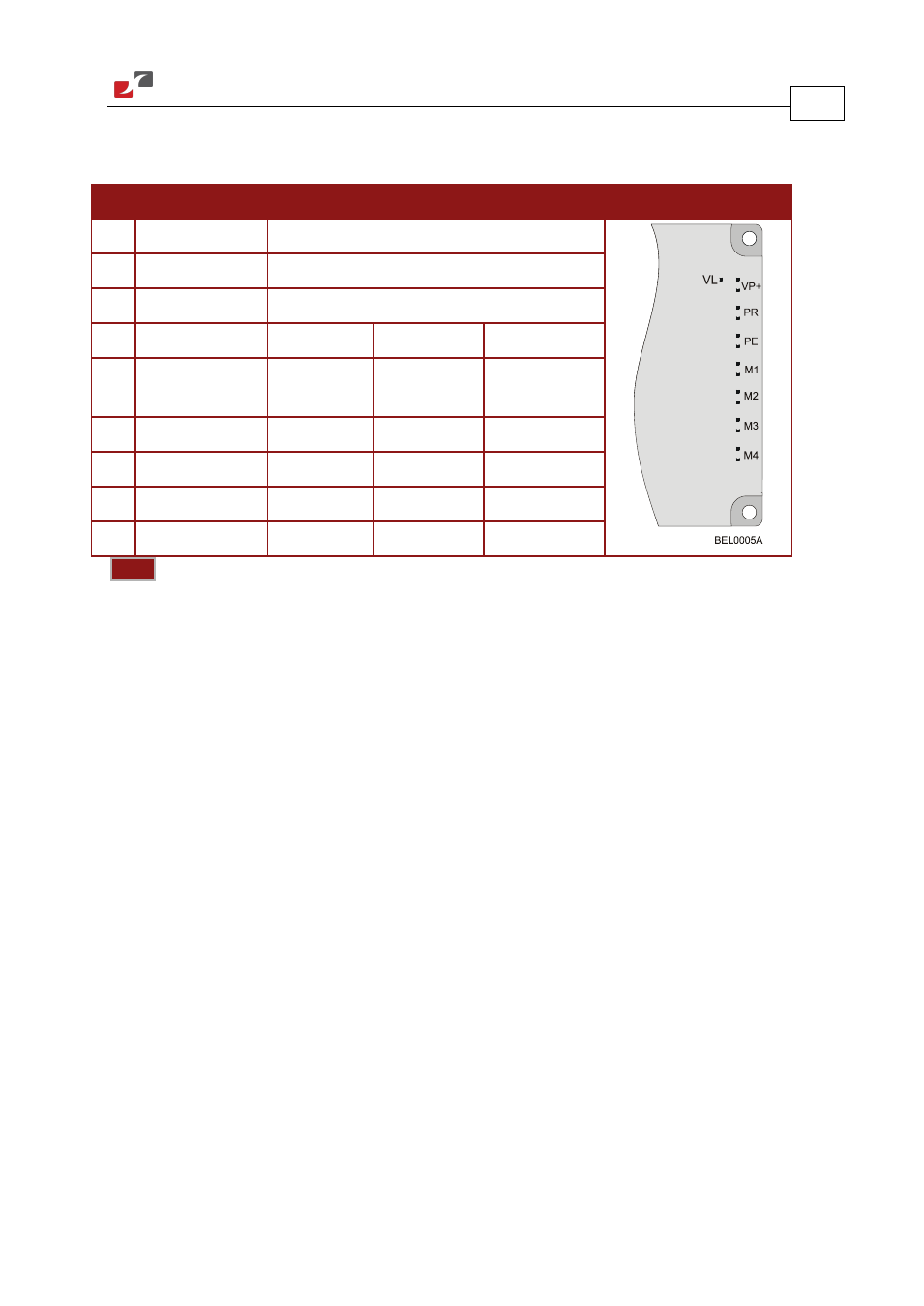

Table 1: Connector for Main Power and Motor
