Bell Installation Guide Installation
MAN-BELIG (Ver. 1.302
| www.elmomc.com
14
Table of Contents
Chapter 3: Installation
3.1. Site Requirements
You can guarantee safe operation of the Bell by ensuring that it is installed in an appropriate
environment.
Environmental Condition Value
Ambient operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Maximum relative humidity 90% non-condensing
Operating area atmosphere No flammable gases or vapors permitted in
area
Models for extended environmental conditions are available.
Caution:
The Bell dissipates its heat by convection. The maximum operating ambient
temperature of 0°C to 40°C (32°F to 104°F) must not be exceeded.
3.2. Unpacking the Drive Components
Before you begin working with the Bell, verify that you have all of its components, as follows:
•
The Bell stepper drive
• The Composer software and software manual
The Bell is shipped in a cardboard box with Styrofoam protection.
To unpack the Bell:
1. Carefully remove the stepper drive from the box.
2. Check the drive to ensure that there is no visible damage to the instrument. If any damage
has occurred, report it immediately to the carrier that delivered it.

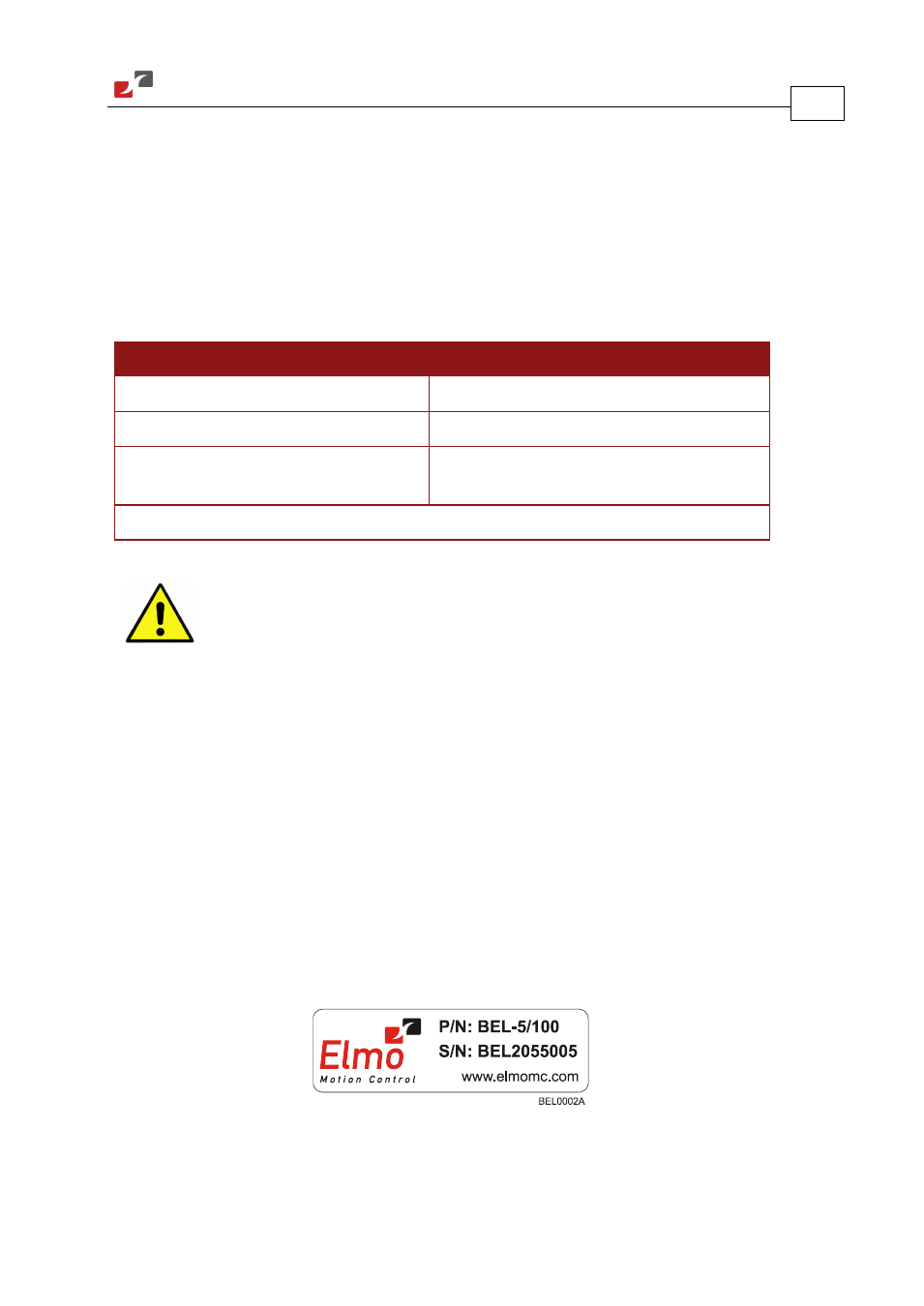

3. To ensure that the Bell you have unpacked is the appropriate type for your requirements,
locate the part number sticker on the side of the Bell. It looks like this:
