Doug Fleenor Design NODE4 User Manual
Page 9

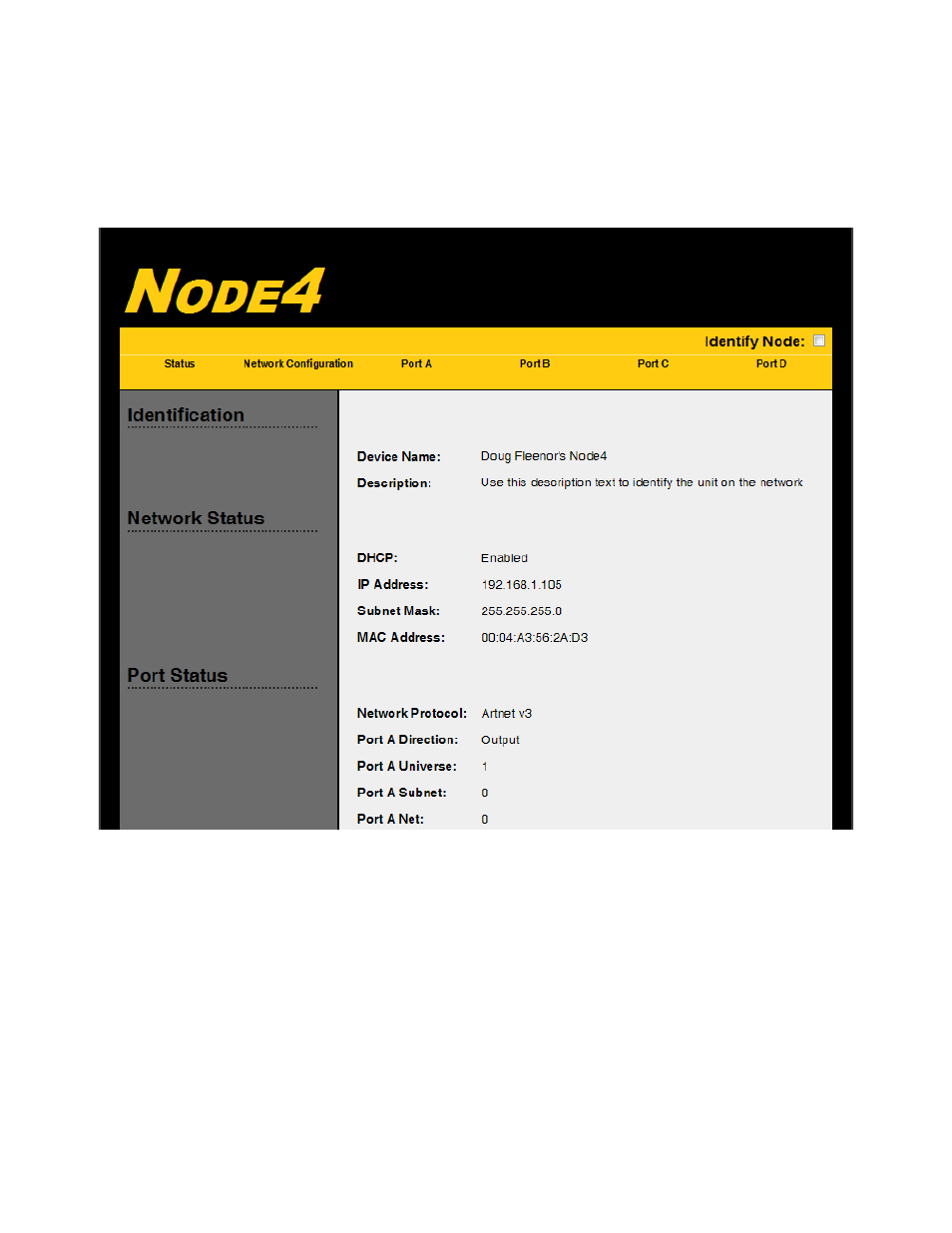

On the Status Page the current status of the NODE4 can be seen. The uptime, number of
power cycles, software version, DHCP status, IP address, Subnet Mask, MAC Address,
DMX512 port Universe selections, and DMX512 port input/output status. A menu bar at
the top of the page has links to access the network settings and the DMX512 port settings.
In addition, there is a check box to identify the NODE4. While checked, the LCD backlight
on the currently selected NODE4 will blink.
9 of 15
