Using a web broswer to configure the NODE4
The NODE4 has a built-in web server that allows remote configuration of a unit across the
network. It allows for configuration of all aspects of the NODE4 including the front panel
name, unit description, network settings, and port options available for the current network
protocol.
To access the web server, the computer to be used must be physically connected to the
same network as the NODE4. It must be in the same Subnet, have the same Subnet
Mask, have a unique IP address, and have a web browser installed.
To start the web server, open a web browser (Internet Explorer, Mozilla Firefox, Google
Chrome, Safari, etc....).

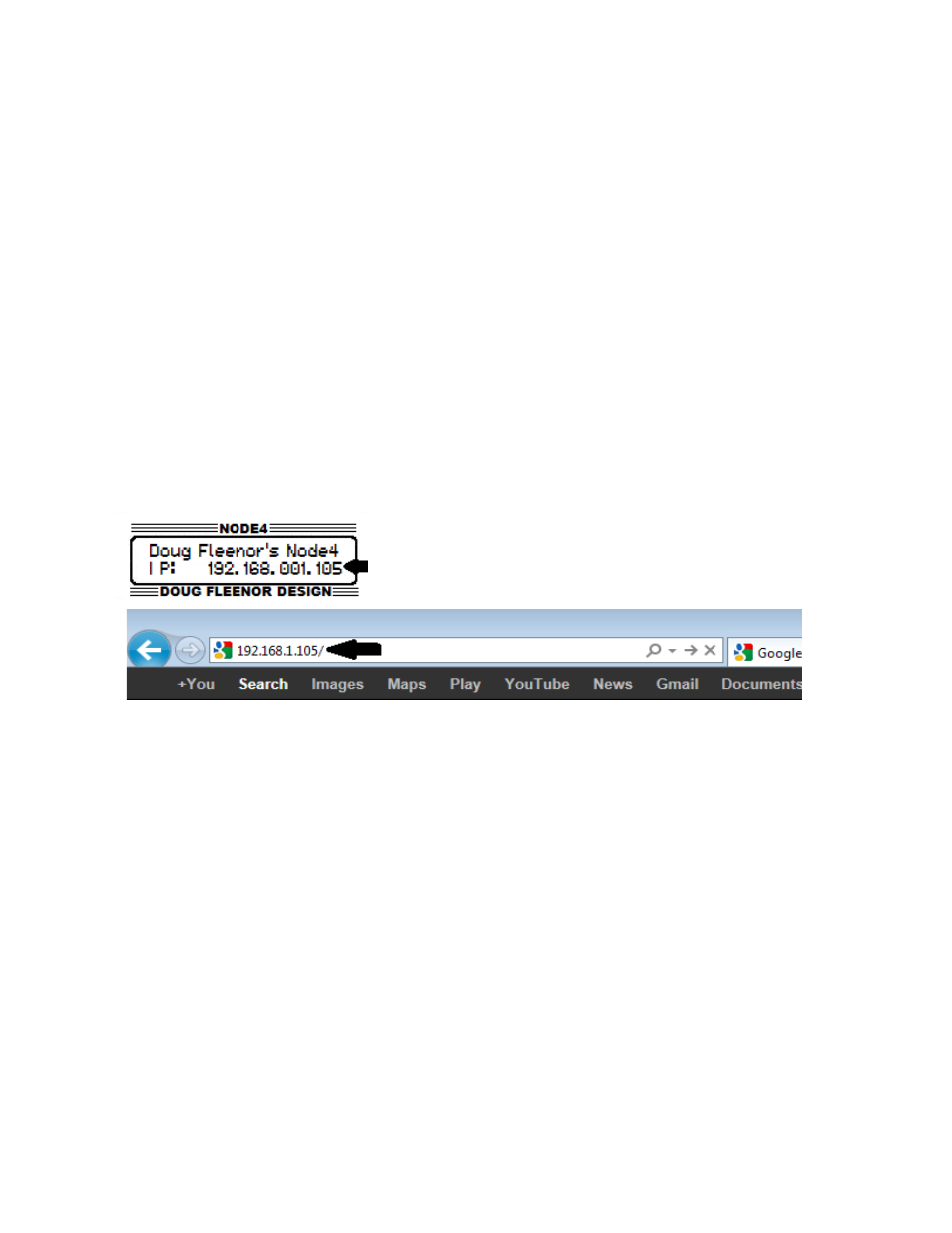

In the address bar of the browser, type in the IP address of the NODE4. The IP address of
each NODE4 can be located on the HOME page of the device as shown in figure below. In
this example the IP address of this NODE4 is 192.168.1.105. After this address has
entered, press Enter on the computer keyboard. The Status Page from the NODE4 will be
displayed.
