MMX-7 Data Logging Ultrasonic Thickness Gauge
67
6) Abort the Grid View Box by pressing the MEAS key at any time.
Note: Every time a reading is saved to memory, a picture of the display is
automatically saved with the reading.
10.4 Viewing stored readings
It is sometimes necessary to go back and view the stored readings and waveforms
using the MMX-7 without a PC. The following procedures outline this process:
Viewing Stored Readings & B -Scans

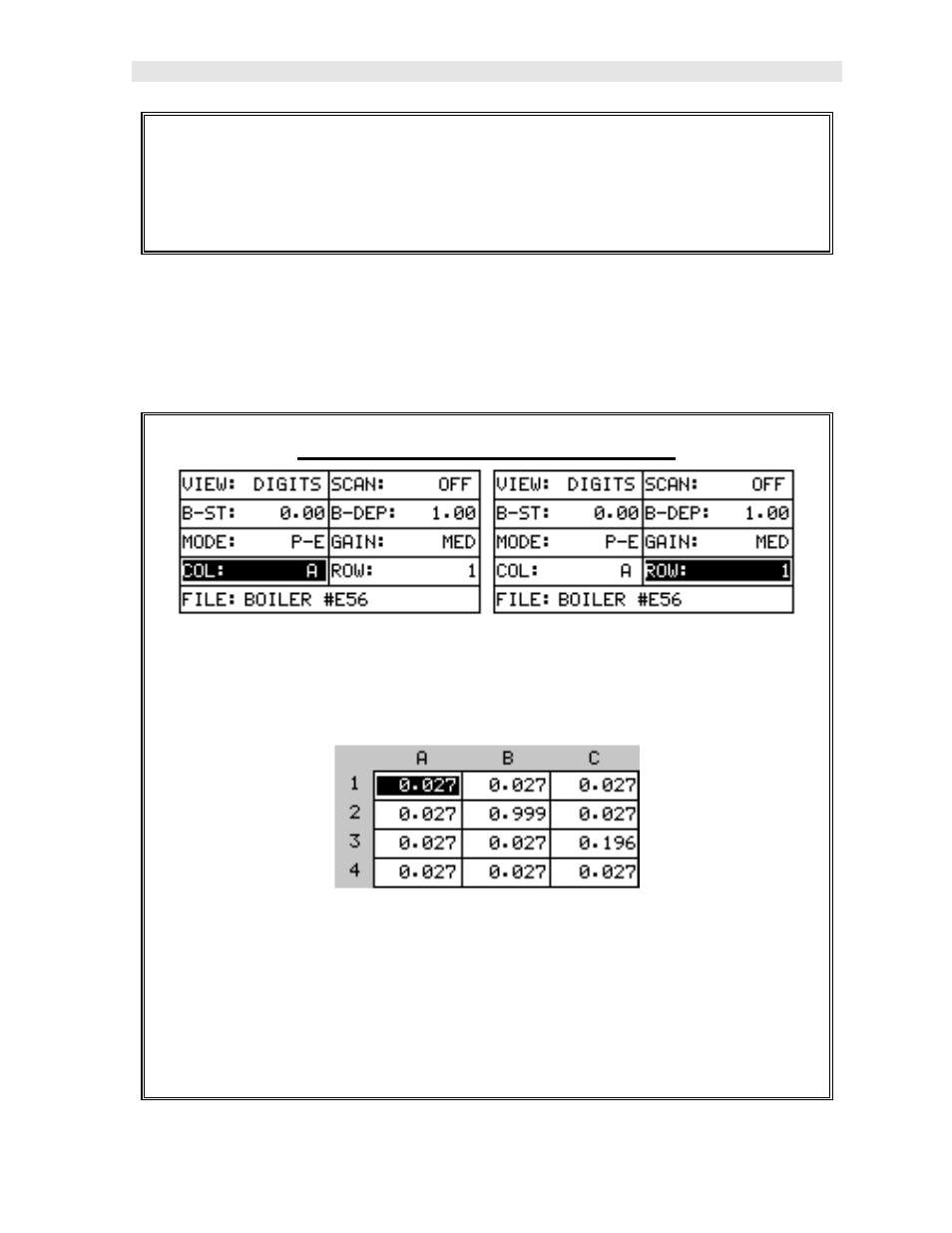

1) Press the MEAS key once to activate measure menu items. Press the
MEAS key multiple times to move right and the ESC key multiple times to
move left until the COL or ROW cell is highlighted.
2) Press the ENTER key to display the Grid View Box.
3) Press the UP, DOWN, LEFT, and RIGHT arrow keys to scroll the stored
readings and corresponding display view. Notice as the cursor is moved to
a different cell, the display will be updated with the display view saved with
the reading.
