Overall range (B-DEP)
Once again, just to reiterate, B-DEP is the overall viewable thickness range being
tested. This should be set to a value slightly larger then the expected maximum
range being measured. The procedures to adjust the overall thickness range viewed
(B-DEP) are outli ned below:
Adjusting the Depth (B-DEP) using the Hot Menus
1) Press the MEAS key once to activate measure menu items. Press the
MEAS key multiple times to move right and the ESC key multiple times to
move left, until the B-DEP cell is highlighted.
2) Press the UP, DOWN, LEFT, and RIGHT arrow keys to scroll the highlighted
value.

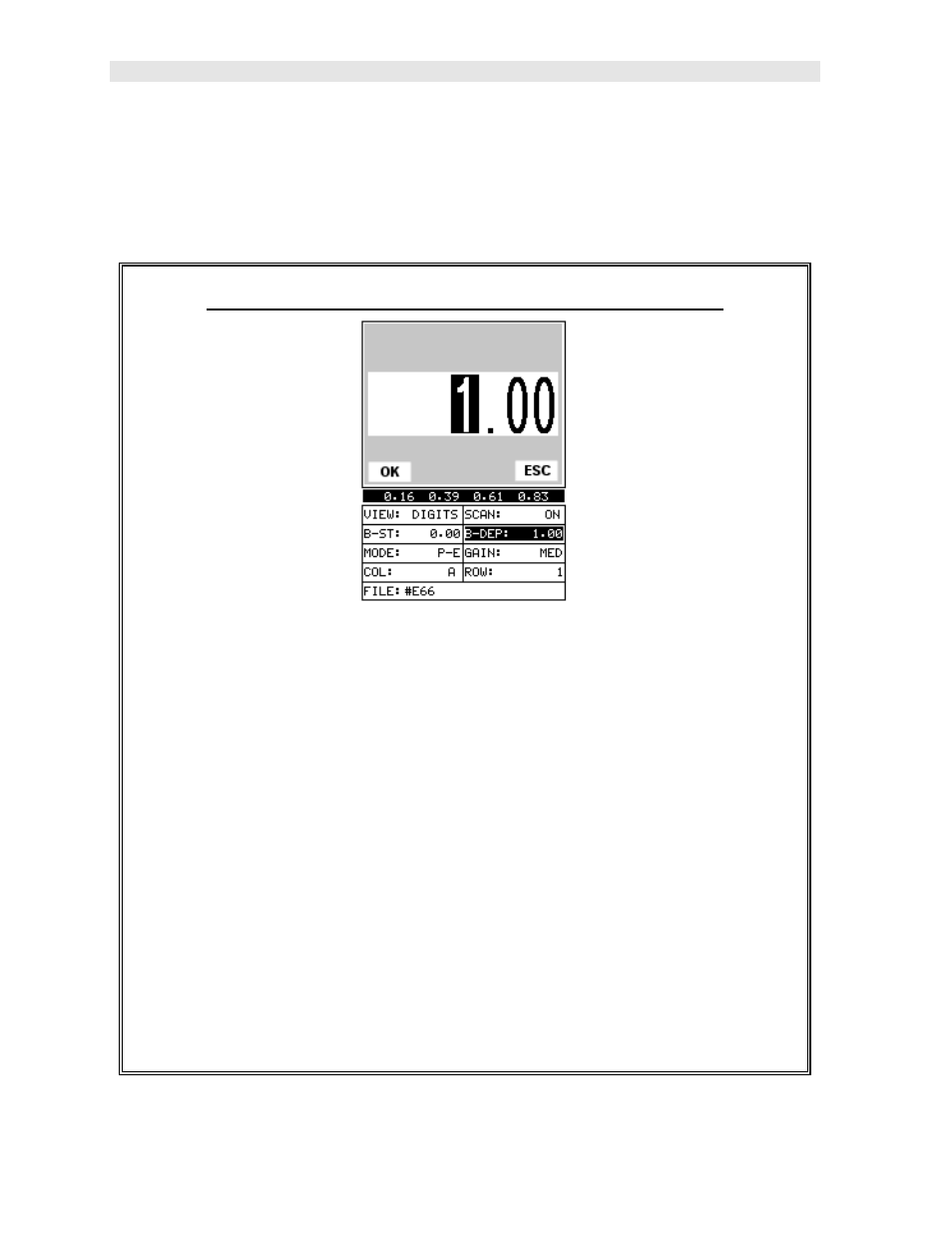

3) Alternatively , press the ENTER key to display the Digits Edit Box.
4) Press the UP and DOWN arrow keys to scroll the highlighted value.
5) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
6) Repeat steps 4 & 5 until the B-DEP value is correctly displayed.
7)
Press the OK key to return to the measurement screen, or ESC to cancel
entering the B-DEP.
