Carlin EZGasPro - Manual (Page 3)

Model EZGas Pro gas burner — Instruction manual
Carlin part number MNEZGas Rev. 10/28/13
– 3 –
Where appliance instructions differ from this manual, follow the appliance instructions.

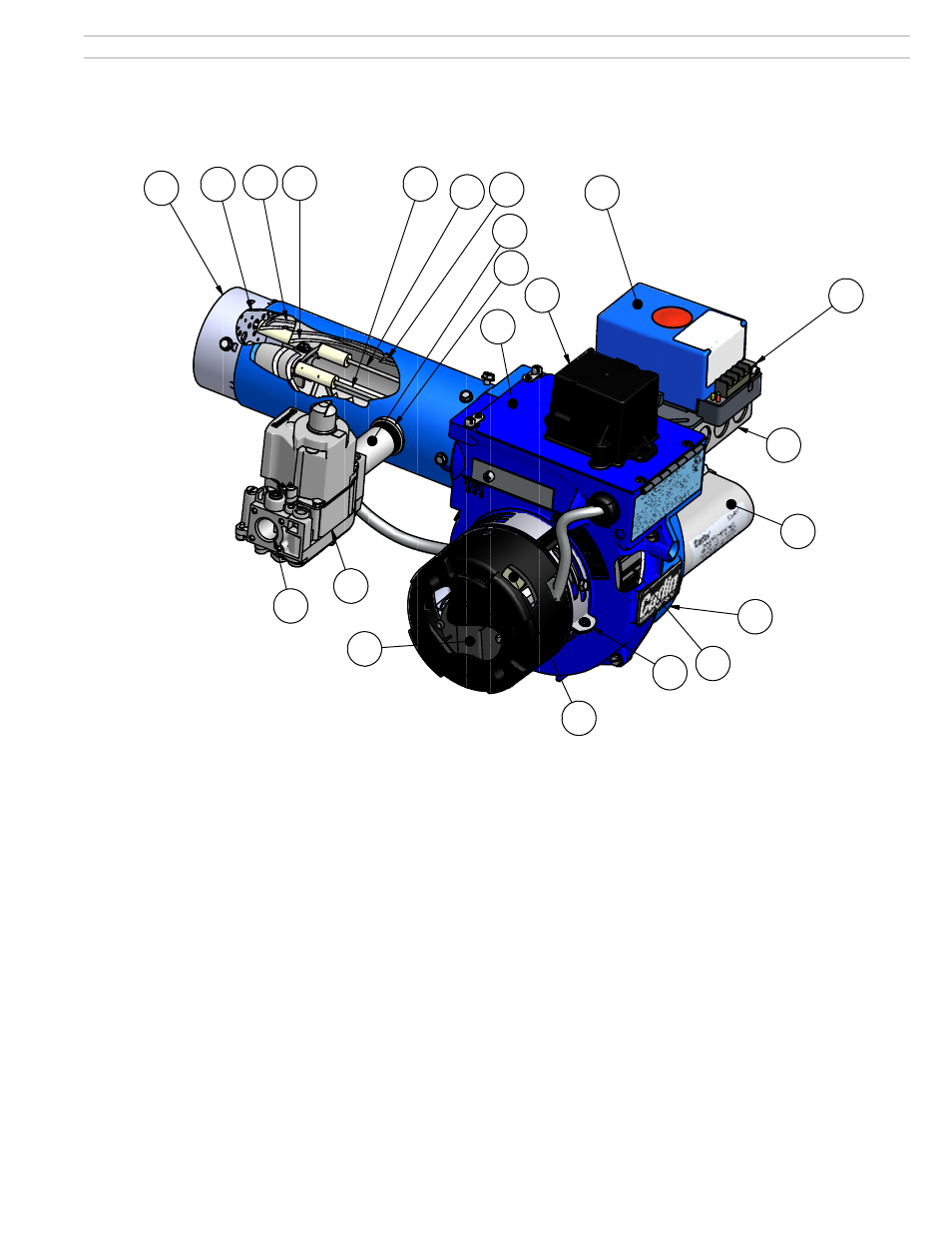

EZGas Pro burner at-a-glance
12 Primary control (Carlin Model 60200FR microprocessor-based inter-
rupted ignition flame supervisory control, for use with flame rod flame
rectification)
13 Flame current test jack
14 Burner junction box
15 Motor (Carlin PSC motor, with permanently-lubricated bearings and
automatic thermal overload protection)
16 Blower housing (cast aluminum), with powder coat paint finish
17 Blower wheel
18 Air band with indicator — Only a single adjustment required for setting
combustion air; see page 7 for starting setting based on appliance
model and input)
19 Airflow proving switch — Prevents burner from firing if air is not moving
20 Combination gas valve (with integral gas pressure regulation — set for
3½” w.c. outlet pressure) - 24V
21 Gas supply entrance — ¾” NPT; 5” w.c. min; 14” w.c. max
22 24V Transformer
1 Air tube (flange omitted for clarity), with powder coat paint finish
2 Diffuser plate (interchangeable hole or slot pattern)
3 Gas manifold (concentric cylinders swaged at ends) — Gas manifold
delivers gas to gas openings on inner wall of manifold near the dif-
fuser plate.
4 Ignitor electrode
5 Flame rod
6 Gas orifice nipple — see pages 7 and 8 for orifice sizing requirements
7 Gas inlet connection (gas entrance to gas manifold)
8 Gas manifold outer wall
9 Gas manifold inner wall
10 Hinged cover plate (for access to blower wheel & electrodes)
11 Ignitor — Carlin Model 41800 solid state electronic ignitor — 9,000
volts, continuous duty rated)
QUALITY CHARACTERISTICS
CRITICAL
MAJOR
A
MAJOR
B
MINOR
NO
SYMBOL
CRITICAL
STATISTICAL
SEE QAS 1000 FOR VENDORS QUALITY
ASSURANCE REQUIREMENTS
TOLERANCE UNLESS OTHERWISE SHOWN
FRACTIONAL `1/64 ANGLE `1/2~
DEC. .XX `.01 .XXX `.005
THIS DOCUMENT MAY NOT BE
REPRODUCED WITHOUT WRITTEN
PERMISSION FROM CARLIN
COMBUSTION TECHNOLOGY, INC.
REMOVE BURR AND FLASH FOR
PROPER OPERATION AND GOOD
APPEARANCE
THIRD ANGLE PROJECTION
DO NOT SCALE DRAWING
INTERPRET ALL DIMENSIONS
PER ANSI Y14.5 1994
CARLIN COMBUSTION TECHNOLOGY, INC.
EAST LONGMEADOW, MA U.S.A.
PART
NUMBER
MAT'L
NUMBER
PART
DESC.
MAT'L
DESC.
ITEM
CLASS
ITEM
CLASS
ECN #
REV SH
OF
DRAWING
NUMBER
DRAWN DATE
SCALE
EZ
GAS_RevA_FlippedElectrode_1
wmisiaszek 9/4/2013 ECN
BSIZE
ALL LINEAR DIMENSIONS
ARE IN INCHES
REVISION HISTORY
REV DESCRIPTION ECN BY DATE
.
Released to Production ECN MPC 5/4/2009
1
2 3 4
5
6
7
8
9
10
11
14
15
16
17
18
19
22
21
20
12
13
