27

Item

Part Description

Part#

Quantity

1

Screw, rnd hd, #8-32x1/2

152517

6

2

Screw, Hex HD FL 10-24x 5/16

159597

1

3

Switch, Feed Toggle, 15A, DPDT

161052

1

4

Screw, 4-40 x 3/4 socket head cap

164206

2

5

Housing Casting Comp

168797

1

6

Cover, Housing Comp

168802

1

7

Gear Motor 5 RPM

168832

1

8

Switch, Micro Snap Action

168833

1

9

Label, ON/OFF

169352

1

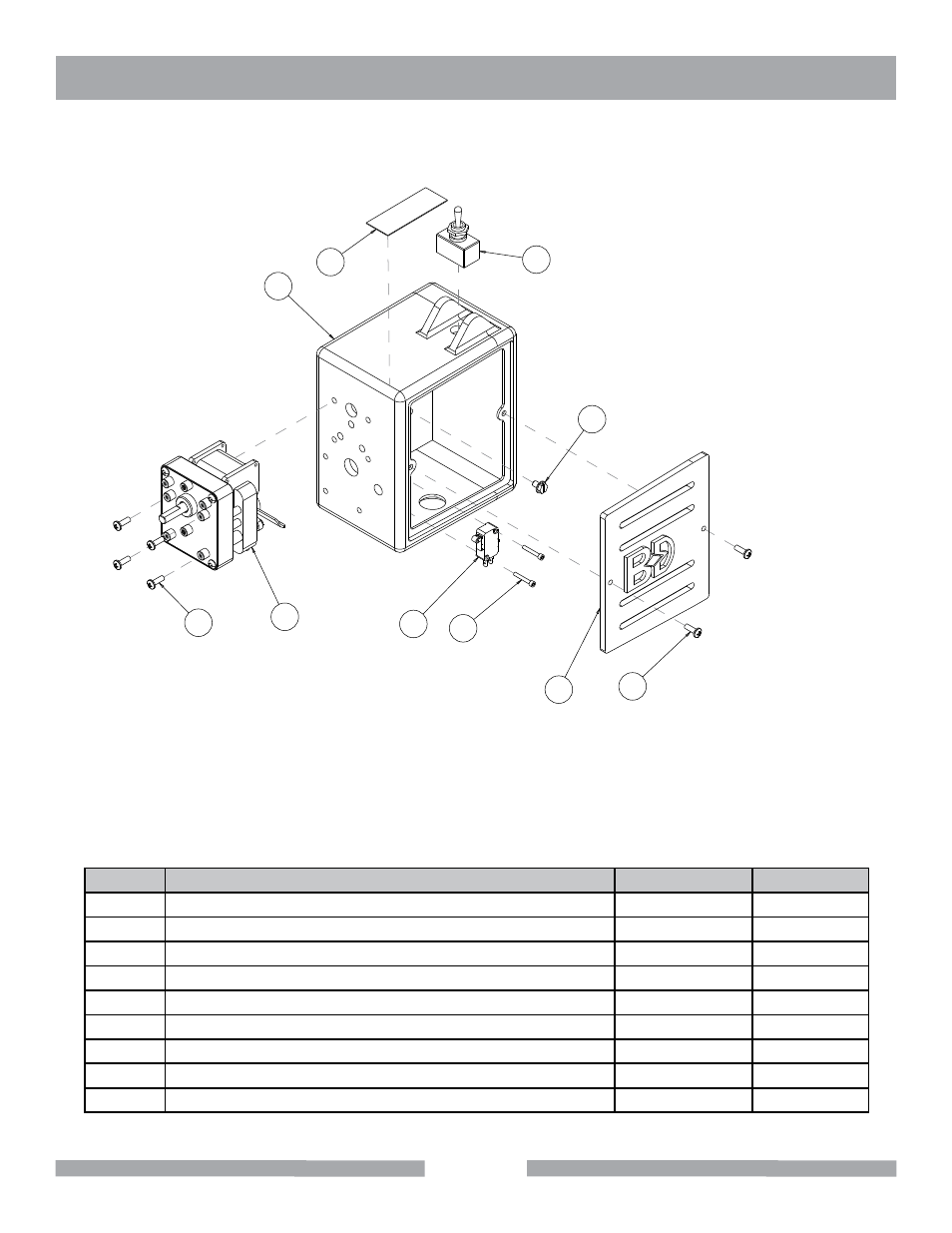

BD10

EXPLODED VIEW & PARTS LIST

1

2

4

5

6

7

8

1

3

9
