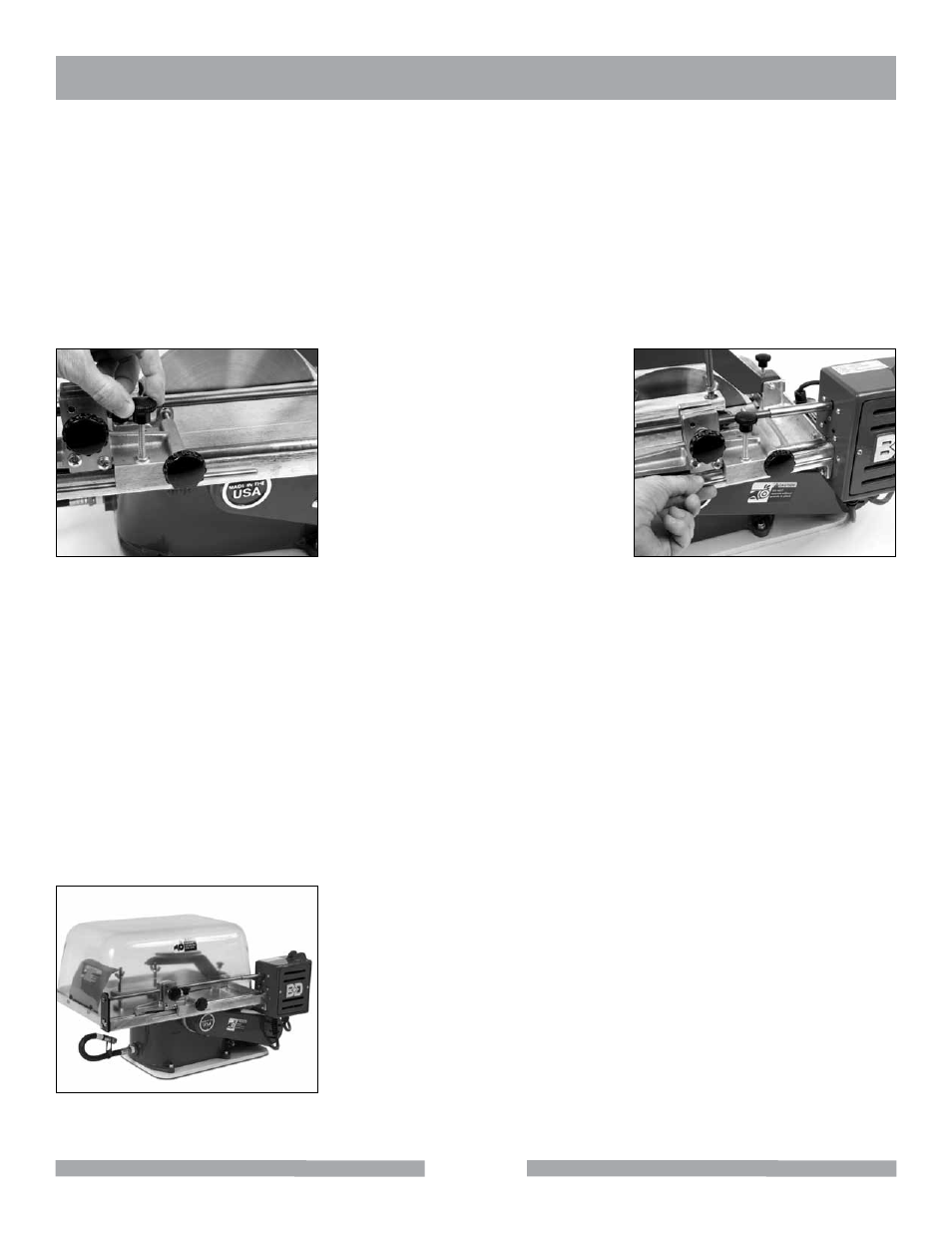

Fig. 17. Vise adjustment

Fig. 18. Vise cross-feed locking

SLAB SAWING MODE

At this point, the clutch should be engaged by turning the knob clockwise (Fig. 12). The hood may be placed

over the table to contain spray and misting. Slabbing of material can now be initiated by engaging the power

feed and blade by moving the toggle switch to the RIGHT/ENGAGED FEED position (Fig. 13). The rock vise

and material will move forward into the blade and the slab will be cut from the vised material. The vise will

proceed to move along the power feed rail until the automatic feed shut-off rod is engage by the powerfeed box

contact switch. Once the shut-off-rod encounters contact, the powerfeed box will shut off by contact with the

switch. Before pulling the vise back, move the power toggle switch to the MIDDLE/OFF position (Fig. 14).

The shut-off rod can be adjusted to any position along the length of the 1/4" rod by loosening the knob on the

carriage (Fig. 19) and sliding the rod to the desired position (Fig. 20) and retightening adjustment knob. After

the slab has been cut and the power feed is shut down automatically, the user can reposition the rock vise to

the next position in front of the blade. Move the power toggle switch to the MIDDLE/OFF position. Adjust the

vise to begin the next slab cut by disengaging the clutch and sliding the rock vise to a position in front of the

blade again. Once the clutch is reengaged by turning the knob clockwise, the next slab can be cut.

Position the plastic splash hood onto the table (Fig. 21) so that spray from the cutting fluid (oil or water) dur-

ing sawing will be contained and drain back into the reservoir. Excess cutting fluid that builds up on the table

during slab or trim sawing will drain back into the reservoir through the blade slot and drain hole adjacent to the

slot. Rock chips and debris from sawing should be removed from the table area periodically to prevent interfer-

ing with free movement of the vise over the table during automatic or manual feeding.

Fig. 19. Shut-off adjustment knob

Fig. 21.

Fig. 20. Shut-off rod

WARNING: If you do not move the toggle switch to the MIDDLE/OFF position before moving the vise back,

the motor and blade will restart.

BD10

OPERATIONS AND ADJUSTMENTS
