13

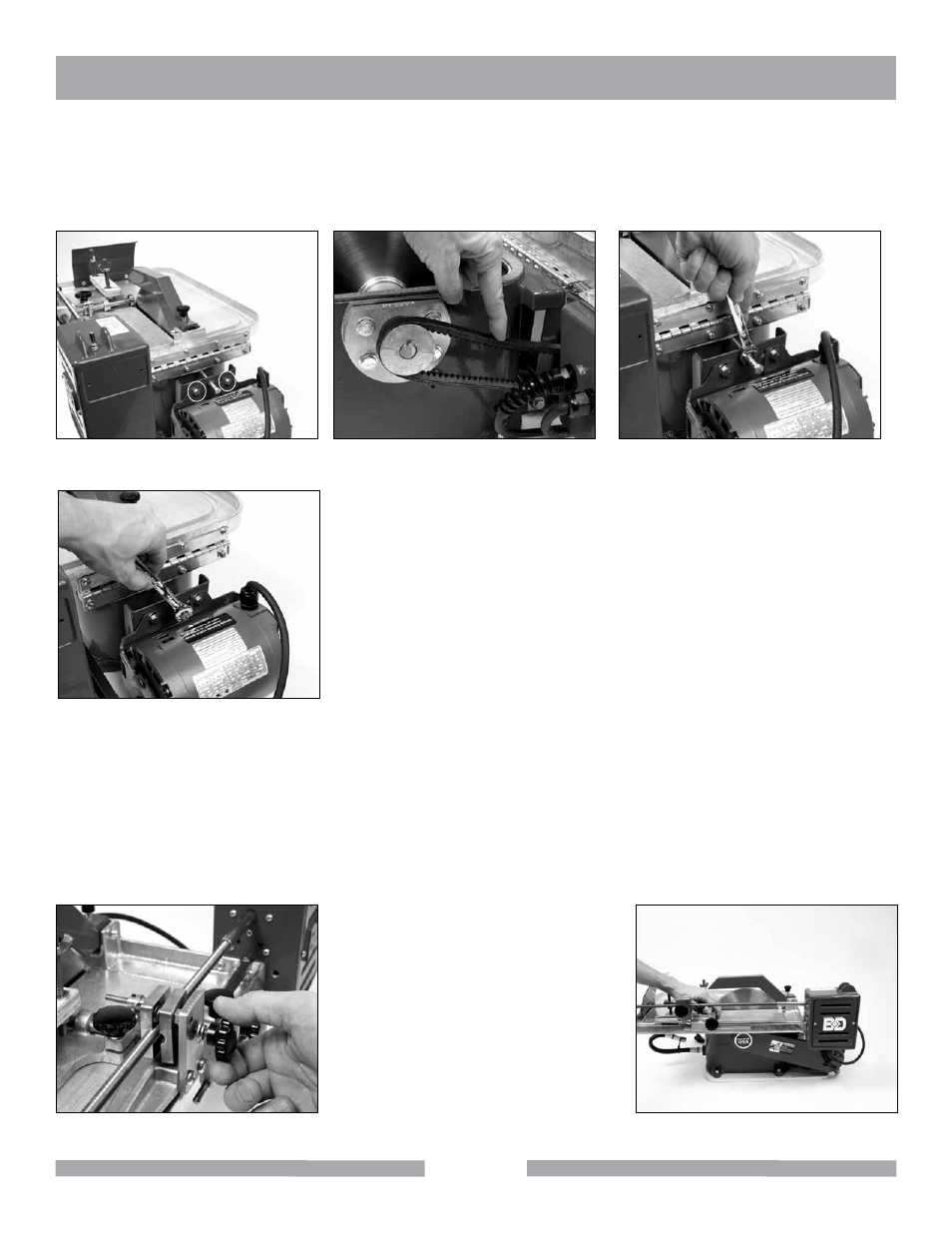

Fig. 5. Secure sludge plug

START UP

Inspect the belt tension. Check the four motor mounting bolts (Fig. 6) to ensure they are tight and the motor

is secure. The V-belt is adjusted and tensioned at the factory. If belt needs adjustment, loosen nut (Fig. 8).

Tighten or loosen screw (Fig. 9) until belt is properly tensioned. There should be no more than 1/2" of belt

deflection when the belt is depressed by fingertip pressure (Fig. 7).

Fig. 6. Motor mounts bolts

Fig. 9. Adjust screw

Fig. 10. Loosen clutch plate

Fig. 11. Rock vise

Fig. 7. V-belt correctly tensioned

Fig. 8. Loosen nut

To perform a power up test on the BD10, first disengage the vise clutch by turning the knob counterclockwise

to loosen the clutch plate (Fig. 10). Move the vise to the front (operator's) end of the saw table (Fig. 11).

START UP

When you have confirmed that the belt is properly tensioned and the motor mounting bolts are secured. You

are ready to proceed. Be sure the proper amount of lubricant is in the reservoir. Check to ensure that the toggle

power switch is in the MIDDLE/OFF position.

BD10

OPERATIONS AND ADJUSTMENTS
