11

BD10

SETUP

TRANSPORT

For ease of transport, place the hood over the saw table and tape the hood to the table. All sawing lubricant

should be removed from the reservoir during transport of the saw.

A. Belt Guard

B. Drain Hose

C. Hood

D. Power Toggle Switch

E. Blade Guard

A. Table

B. Clutch Plates

C. Rock Vise

D. Crossfeed adjustment knob

E. Clutch plate engagement locking knob

F. Vise rotation locking knob

G. Shut off rod adjustment

CONTENTS

In the shipping crate, you will find one Barranca Diamond BD10 Trim Saw assembly (saw, motor, baseboard,

spray hood and ten inch lapidary diamond blade).

UNPACKING AND ASSEMBLY

Your BD10 Trim Saw has been shipped from the factory thoroughly inspected and tested. Remove the crating

material (wood and plastic) from the baseboard and around the saw. Remove the spray hood from the saw and

remove the protective covering.

A

B

D

C

E

A

B

F

E

D

G

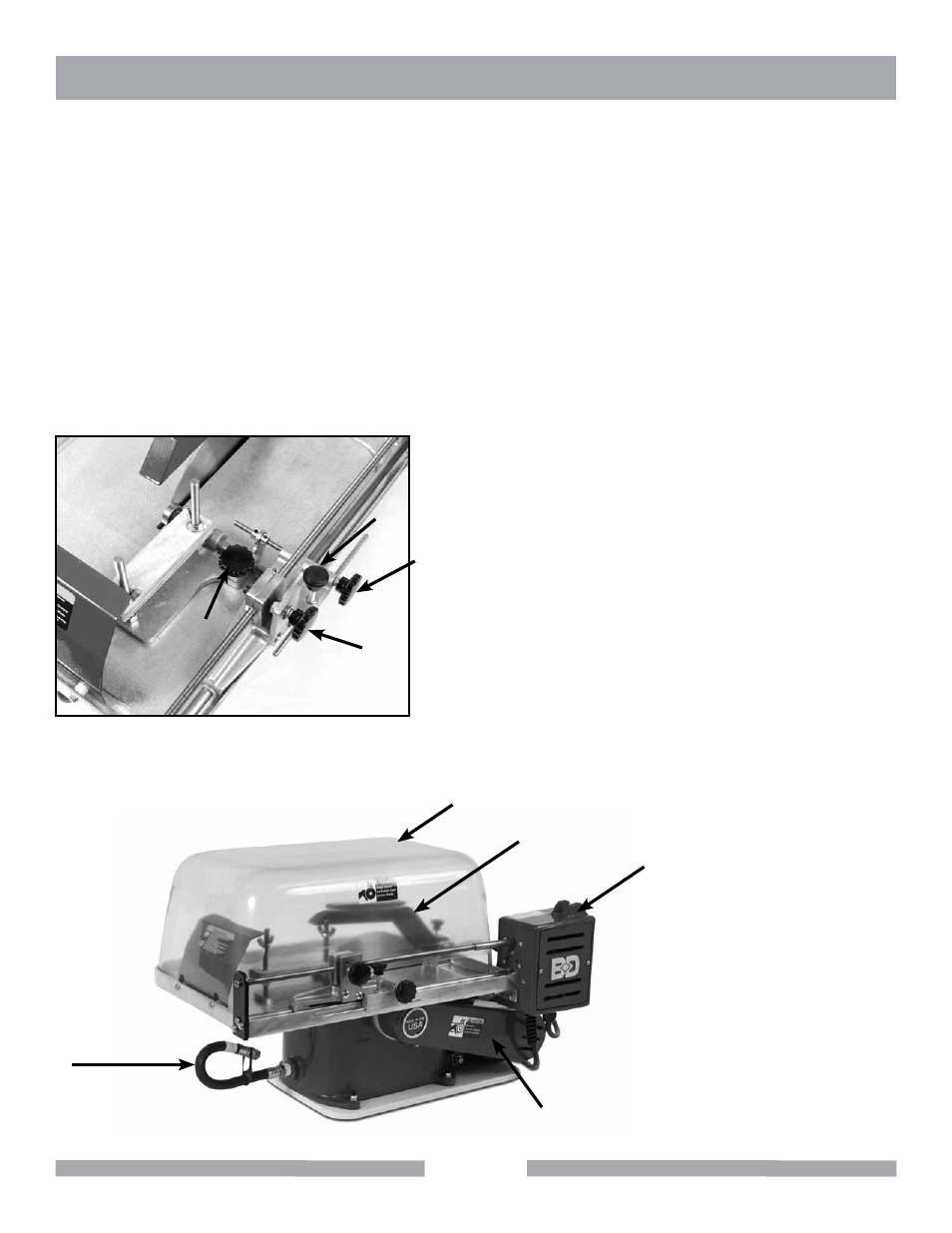

COMPONENT LOCATION
