19

POWER FEED SYSTEM AND VISE

Periodically the user should apply a thin coat of lubricating grease (wheel bearing or lithium grease) to the

3/8"- 24 screw feed rod to prevent the screw feed rod threads from becoming prematurely worn. If the threads

on both the bronze clutch blocks should become worn or “flattened” the clutch block will not securely engage

with the screw rod and it may disengage from the clutch block and not automatically advance the rock vise. A

replacement bronze clutch blocks can be obtained from Barranca Diamond. The rock vise assembly has cross

feed threads (Fig. 31) attached to an indexing or crank knob to laterally adjust the vise so that slab thickness is

accurately controlled before each slab cut. These threads should be lubricated periodically with wheel bearing

or lithium grease to allow for ease of rotation of the cross feed knob.

BLADE ARBOR ASSEMBLY AND PULLEYS

The BD10 Trim Saw is equipped with a 5/8"- 11 left-hand threaded arbor shaft with sealed ball bearings

mounted in an aluminum bearing arbor housing. A 2" OD x 5/8" bore die cast zinc coated pulley is mounted

on the shaft outside the oil reservoir. Unusual noises emanating from the saw tank or arbor area, slower than

normal cutting speeds and overheating of the shaft or belt are indications of arbor/bearing wear. Using the saw

with a worn arbor/bearing assembly can result in poorly cut rock slabs not to mention permanent damage to

other components of the saw. A new arbor/bearing assembly can be purchased from Barranca Diamond. It is

sold only as a complete unit as the bearings are installed in the aluminum housing by the factory.

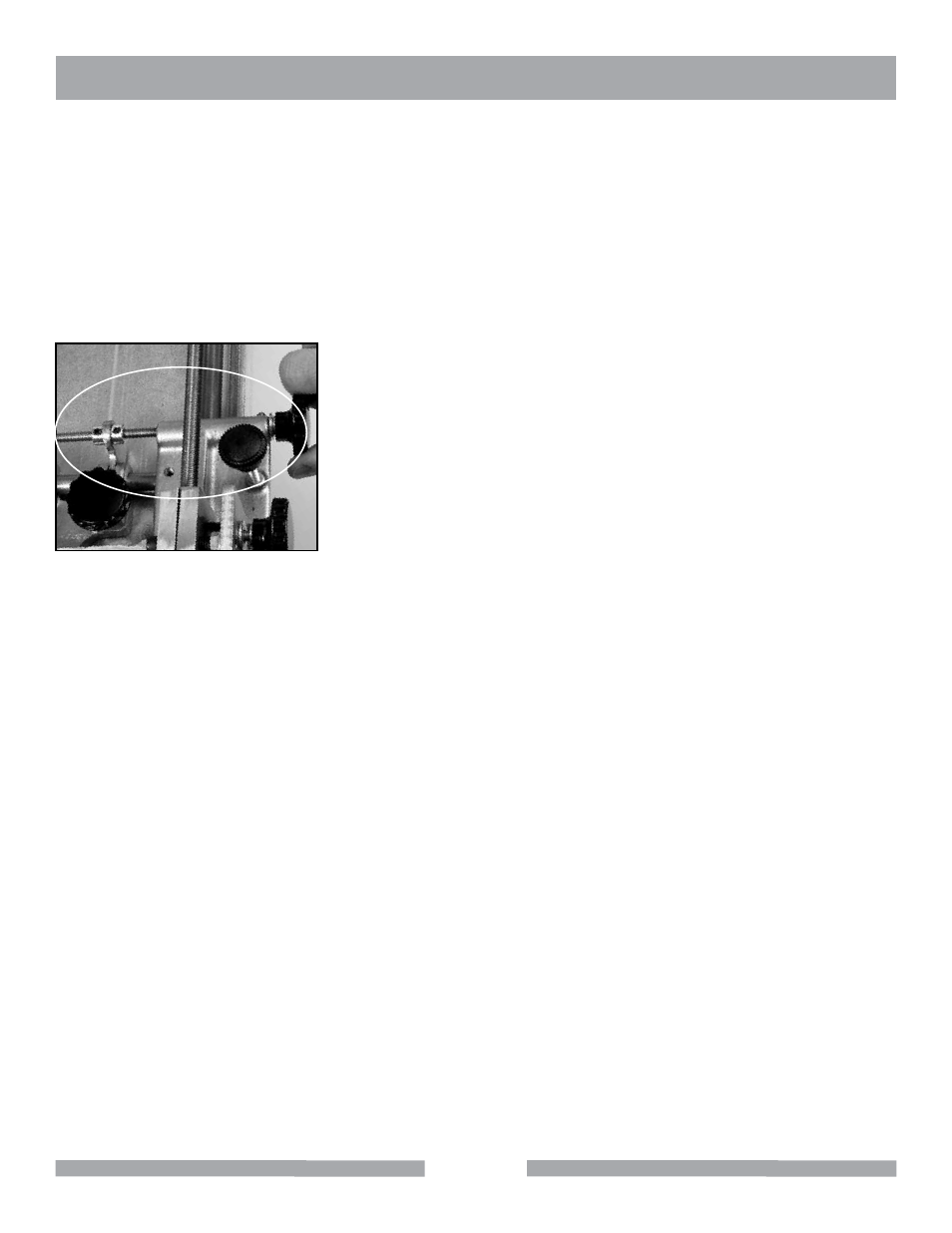

Fig. 31. Cross feed adjustment

VISE

Should the wooden jaw on the upper vise become worn or start delaminating, replacement jaws can be made

from 1/2" plywood.

BD10

MAINTENANCE
