SERVICE
For service send your product to Auto Meter in a well packed shipping carton. Please include a note explaining what the problem is along with your phone number. Please
specify when you need the product back. If you need it back immediately mark the outside of the box “RUSH REPAIR,” and Auto Meter will service product within two days after
receiving it. ($10.00 charge will be added to the cost of “RUSH REPAIR.”) If you are sending product back for warranty adjustment, you must include a copy (or original) of your
sales receipt from the place of purchase.
12 MONTH LIMITED WARRANTY
Auto Meter Products, Inc. warrants to the consumer that this product will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that
fall within this 12 month warranty period will be repaired or replaced at Auto Meter’s option to the consumer, when it is determined by Auto Meter Products, Inc. that the product failed due to defects in material
or workmanship. This warranty is limited to the repair or replacement of parts in the Auto Meter instruments. In no event shall this warranty exceed the original purchase price of the Auto Meter instruments nor
shall Auto Meter Products, Inc. be responsible for special, incidental or consequential damages or costs incurred due to the failure of this product. Warranty claims to Auto Meter must be transpotation prepaid
and accompanied with dated proof of purchase. This warranty applies only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12 month
warranty period. Breaking the instrument seal, improper use or installation, accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. Auto Meter Products, Inc. disclaims any liability
for consequential damages due to breach of any written or implied warranty on all products manufactured by Auto Meter.
FOR SERVICE SEND TO: AUTO METER PRODUCTS, INC. 413 W. Elm St., Sycamore, IL 60178 (815) 899-0801
For Email: [email protected]
© 2006 Auto Meter Products. Inc. 2650-1139 8/18/06
The “Super Bezel” is a registered trademark of Auto Meter Products, Inc.

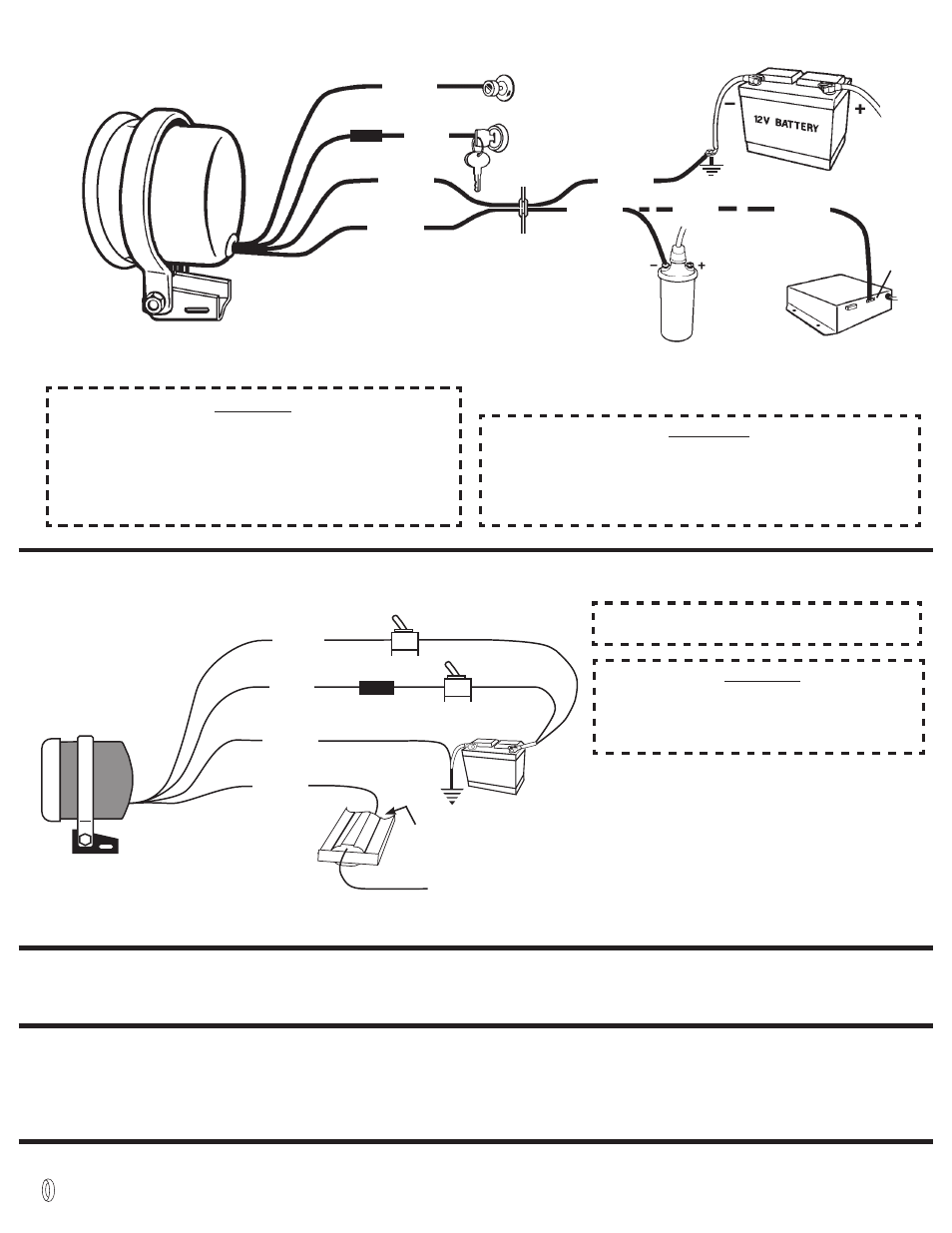

Wiring
12V DASh
LIGhTING
12V IGNITION
SWITCh (+)
GROMMET
IN FIREWALL
GOOD
ENGINE
GROUND
WhITE
EARLY
MODEL IGNITIONS
ELECTRONIC
IGNITION
OR
COIL
Tach
Terminal
CAUTION!
As a safety precaution, the +12 V terminal of this product should
be fused before connecting it to the 12V ignition switch. We
recommend using a 1 Amp, 3 AG fast-acting type cartridge fuse
(Littlefuse® #312 001 or an equivalent).
WARNING
Warranty will be void if connected to coil when using an
aftermarket ignition box such as, but not limited to products
from the following manufacturers: MSD, Crane, Jacobs,
Mallory, Holley, Etc.. Prior to installation of your tachometer,
check with the ignition box manufacturer for recommended
tachometer signal location.
FUSE
RED
BLACK
GREEN
BLACK
GREEN GREEN
Wire Connections
White - Connect to 12 volt source for dial lamp operation.
Red - Connect to 12 volt positive.
Black - Must be common grounded with both battery
and engine.
Green - Trigger lead, connect to the primary spade
terminal on the ignition coil. If a kill switch
is already connected there, you may connect to
the high (hot) side of the kill switch.
Jr. Dragster Wiring
Ignition Coil
Spark Wire
Good
Engine
Ground
Power Switch
Lighting Switch
Primary (Kill Switch)
Terminal
WARNING : No wire on this tach should be connected to
the ignition secondary (Spark wire) at any time. This will cause
damage to the product.
CAUTION!
As a safety precaution the Red wire of this product should be
fused before connecting it to the positive (+) side of the 12V DC
battery. We recommend using a 1 Amp, 3AG fast-acting type
cartridge fuse (Littlefuse ® # 312 001 or an equivalent) inline
with the Red wire of our product.
(See caution below)
Fuse
12V
BATTERY
- +
This tachometer is made to operate on Briggs & Stratton engines only.
WhITE
RED
BLACK
GREEN
