Copper Coil Installation
When connecting to the exhaust manifold, it is necessary to prevent the extremely
hot gases from entering either the 1/8" nylon tubing (mechanical versions) or the
pressure transducer (FSE versions). To adequately cool these gasses, a 6 foot
length of coiled 1/4" copper tubing and the necessary fittings are provided. This
tubing is to be connected to the exhaust manifold collector.
Use the stainless steel 1/4" tube to 1/8" NPT fitting to make the connection at the
manifold. Drill into the cast iron manifold with a 5/16" letter R (0.339) drill bit and
follow through with a 1/8" NPT pipe tap. Mount the stainless steel to the exhaust
manifold (see fig. 1).
Carefully form the copper tubing (be careful not to kink the tubing) and connect one
end in the stainless steel fitting. The tubing should be formed to a shape that allows the
other end to be near a point to which it can be secured mechanically (i.e. with a strap,
bracket, etc.).
A. Mechanical Version:
Once the copper tubing has bee mounted, connect the 1/8" nylon tubing to
the copper tubing using the 1/4" tube to 1/4" NPTF fitting, the 1/4" to 1/8"
reducer, and the 1/8" fitting (see fig. #1). To prevent vibrations, secure the
copper/nylon tubing to something solid with strapping.
B. FSE Version:
Once the copper tubing has bee mounted, connect the Pressure Sender
to the copper tubing 1/4" tube to 1/4" NPTF fitting and the 1/4" to 1/8" reducer
(see fig. #2). To prevent vibrations, secure the pressure sender to something
solid with strapping, or fabricate a bracket as a mount

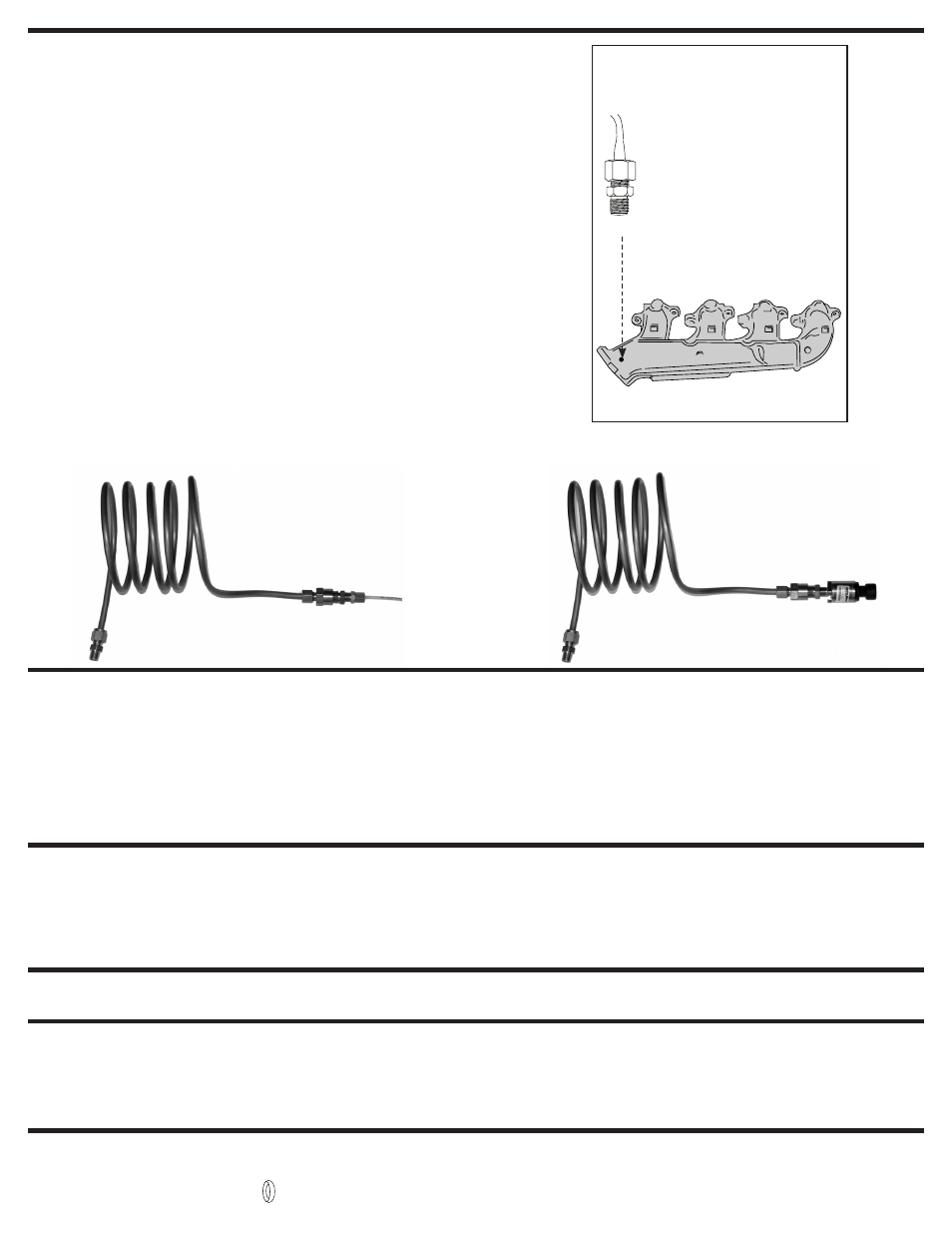

Drill & Tap into Manifold (D)
Drill 5 ⁄
16 ” letter R (.339)
Hole and tap for 1 ⁄
8 ” NPT
in cast exhaust manifold
collector or other engine
builder specified location.
Copper Coil Fitting #1 Copper Coil Fitting #2
Figure 1
The pressure in the exhaust system is constantly varying in normal operating conditions. While there is not a “flow” of exhaust gases through the
copper tubing, the compression and expansion of the exhaust gases within the tubing will cause some migration of diesel exhaust particulates (soot) into
the tubing. Over time these particles may build up to a point that will interfere with proper operation of the gauge (both Mechanical and FSE versions).
For this reason, periodic maintenance of the copper tube is required. It is recommended the copper tube be monitored for build up. To check for build
of soot, loosen and remove the 1/4" tubing at the gauge end of the coil. If there is noticeable build, use an air hose to blow air through the coil back into
the exhaust manifold. Re-connect the copper tubing.
The frequency and need for the copper tube maintenance will vary. Factors affecting the build up are miles driven, type of driving, etc. If the engine is
considered a “smoker”, close monitoring and more frequent maintenance will be required.
