Anchor NAVI-TRAC LITE 20 WIDE - Manual (Page 5)

5
E-10
RG-10
R-20
RH-20
H-20
U-8
U-8
BA
BA
CW
EW
RW

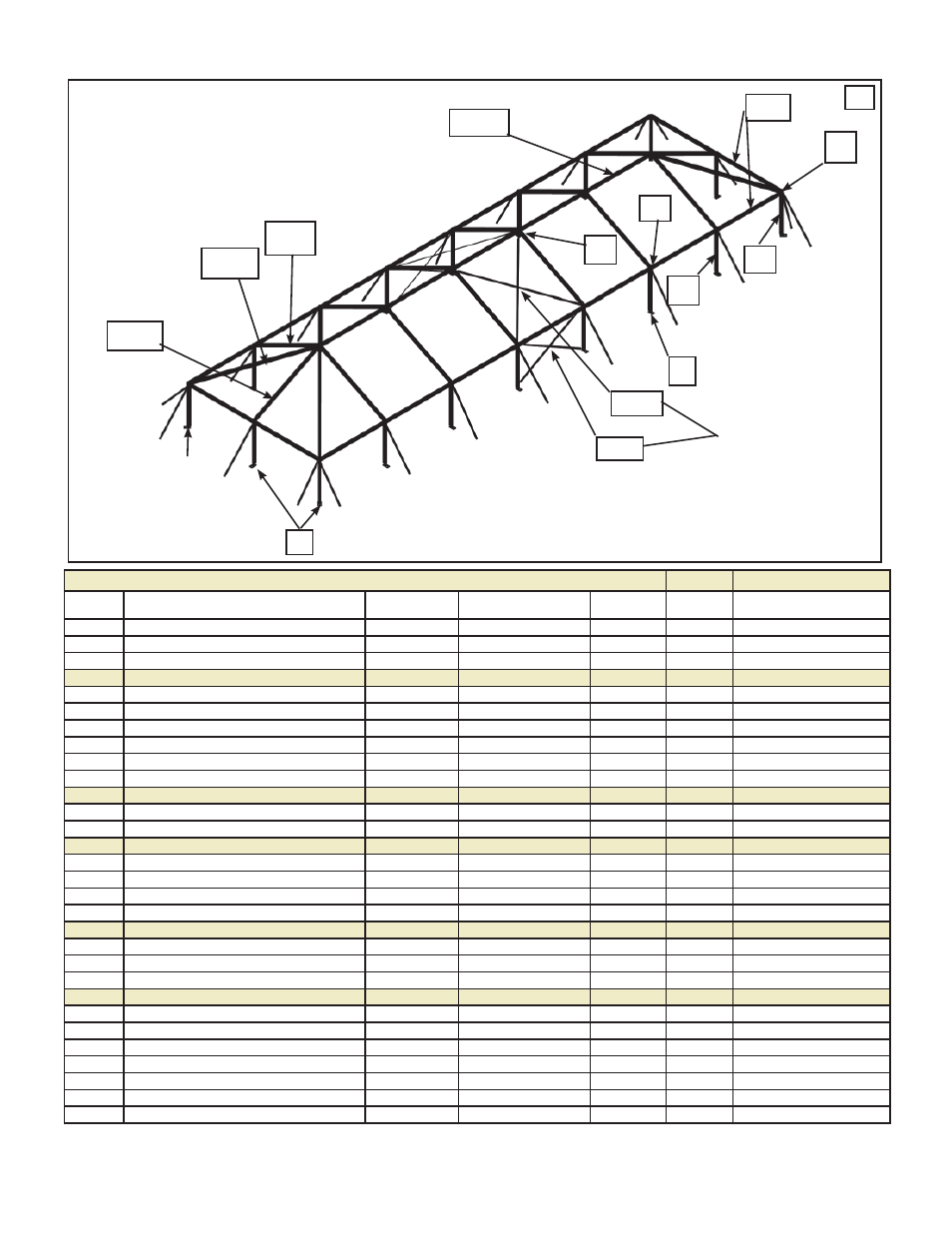

20’ NAVI-TRAC LT FRAME TERMINOLOGY
3
XR-10
X8-10
REQUIRED ONLY ON
UNITS EXCEEDING
60 FT IN LENGTH.
Component Chart QTY QTY
LABEL PARTS FOR HIP END UNITS 20’ x 20’ 10’
(LETTER (For Gabled End, see Appendix 1) POSITION ID PART HIP EXTENSION
ON DWG) COMPONENT DESCRIPTION CODE CODE # END MID
TOP EXTRUSIONS WITH CHANNELS:
E-10 EAVE - 10’ 8004400 8 2
RG-10 RIDGE W/ HOOKS - 10’ 8004405 0 1
R-20 RAFTER 20’ 8004425 2 2
RH-20 RAFTER 20’ W/ HOOKS 8004430 2 0
H-20 HIP - 20’ W/ HOOKS 8004420 4 0
UPRIGHTS:
U-8 UPRIGHT - 8’ 8004450 8
WELDMENTS, FITTINGS & PLATES:
BA BASEPLATES, ADJUSTABLE, 2-HOLED 8004505 8 2
CW CORNER WELDMENTS W/ PINS 8004525 4 0
RW RIDGE WELDMENTS W/ PINS 8004545 1 1
EW EAVE WELDMENTS W/ PINS 8004530 4 2
X-CABLES:
X8-10 X-CABLE, 8’ UPRIGHT 10’ BAY GREEN NAVLTCS-BAY10-U8 8004550 0 4 (OVER 60’L ONLY)
XR-10 X-CABLE, RAFTER 10’ BAY BLUE NAVLT-BAY10 8004565 0 4 (OVER 60’L ONLY)
INSTALLATION TOOLS:
LONG LIFTING BAR W/ CRADLE 80702
SHORT LIFTING BAR W/ CRADLE 80701
FABRIC PULL ROPES 80730
WHEELED PANEL GUIDE/ ASSEMBLIES 80731
PUSH POLE ASSEMBLY 80707
FABRIC END FITTING FOR PUSH POLE 80732
DROP CLOTH (8’ x 30’) 80705
OTHER COMPONENT NOTES:
STAKES AND GUYS ARE NOT INCLUDED IN THIS TABLE. (1) 1” X 30” STAKE MUST BE USED FOR EACH BASE
PLATE. EACH GUY REQUIRES THE USE OF A 1 1/8” X 42” STAKE.
