4

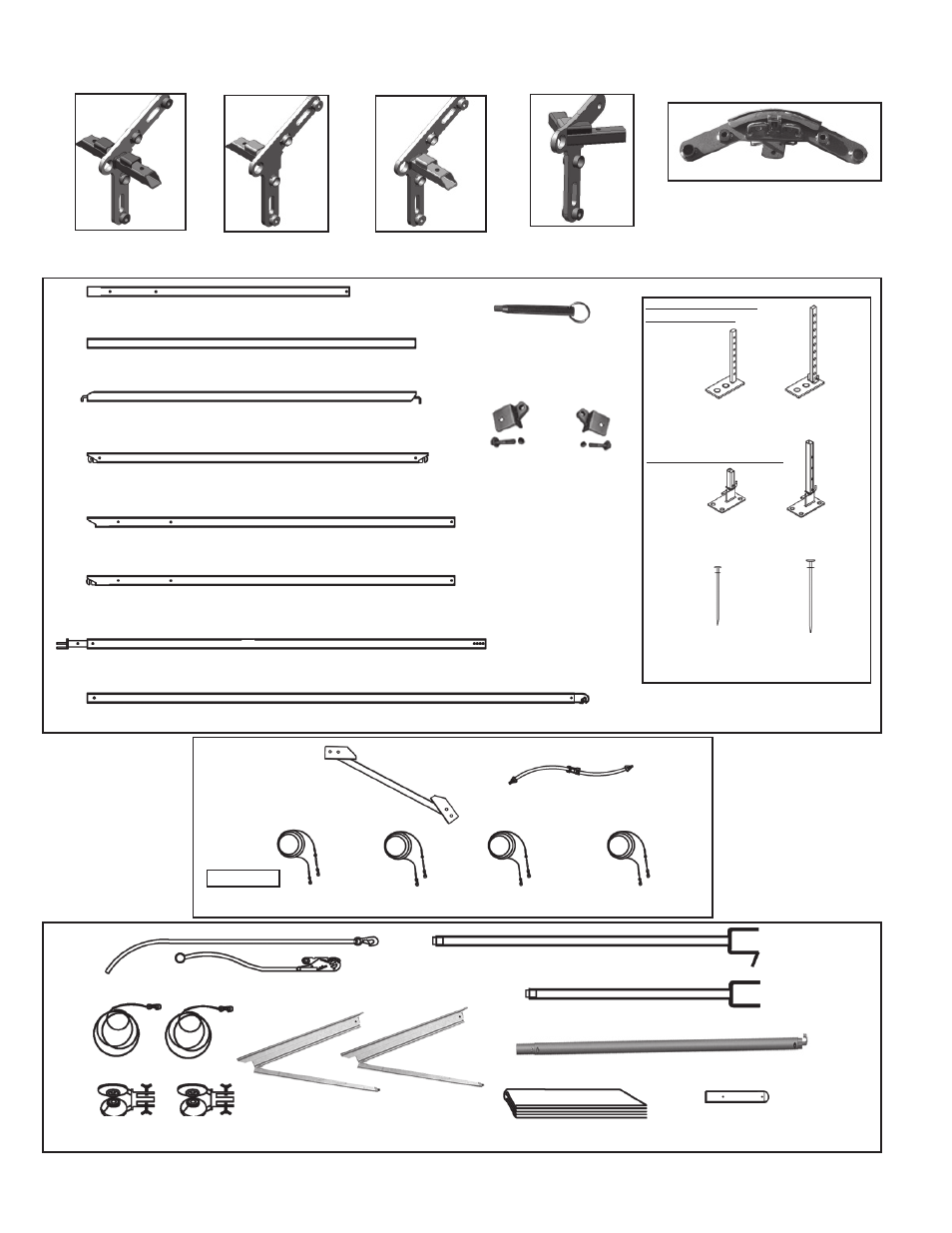

20’ NAVI-TRAC LT COMPONENT ILLUSTRATIONS
UPRIGHT 8’ (U-8)
GABLED END WING EAVE - 10’ (EW-10)
(SEE PART LISTS ON PG #11 AND APPENDICES 1 AND 2)
GABLED END UPRIGHT W/ TOP FITTING (GU)
EAVE, 10’ (E-10)
RIDGE, 10’ W/ HOOKS (RG-10) 9’-9 1 /2”
RAFTER, 20’ (R-20) 10’-6 1/2”
HIP, 20’ W/ HOOKS (H-20) 14’-2 1/2”
RAFTER, 20’ W/ HOOKS (RH-20) 10’-9”
EAVE WELDMENT
(EW)
GABLED END
WELDMENT “L” (GWL)
GABLED END
WELDMENT “R” (GWR)
CORNER WELDMENT
(CW)
RIDGE WELDMENT (RW)
(NOTE: FOR GABLED ENDS, THE
BRACKET HARDWARE CAN BE
REMOVED FROM ONE SIDE, IF
DESIRED.)
GABLED END RAFTER
FITTINGS (LEFT &
RIGHT) W/ BOLT & NUT
GFL GFR
TENSION LOCK
PIN (TP)
KNEE BRACE (KB)
WEB RATCHET (WR)
LONG LIFTING BAR W/ CRADLE
SHORT LIFTING BAR W/ CRADLE
DROP CLOTH
WHEELED GUIDE BRACKETS
WHEELED PANEL GUIDES
INSTALLATION SAFETY GUYS
FABRIC PULL ROPES
X-CABLING
NAVLTCS-BAY10-U8 NAVLTCS-BAY10-U9 NAVLT-BAY10
BASEPLATE
HINGED (BH)
BASEPLATE, GABLED
END, ADJ
(BAG)
BASEPLATE
ADJ
(BA)
BASEPLATE, GABLED
END, HINGED
(BHG)
42”
STAKE
30”
STAKE
(1) REQ’D PER
BASE PLATE
(1) REQ’D PER
GUY
2-HOLED PLATES for
HIP & GBL UNITS
4-HOLED PLATES FOR CS
NAVLTCS-BAY10-U10
PUSH POLE ASSEMBLY
FABRIC END FITTING
(FOR PUSH POLE)
